This dark gray 3000w Pure Sine Wave Inverter showcases its front panel with a digital display, two AC outlets, USB ports, and top branding.
Inverters | Model: PP3000INV

3000w Pure Sine Wave Inverter

Reliable power conversion for off-grid and mobile applications.

  • Flagship 3000W Output
  • 6000W Massive Peak Surge
  • Ultra-Clean Pure Sine Wave
  • Dynamic Dual-Fan System

DC Input Voltage
12V DC
AC Output Voltage
220/230/240V ± 3V AC
Output Waveform
Pure Sine Wave
Safety & Protection
Overload, Short Circuit, Temp
Applications
RV, Marine, Off-grid, Backup Power
CE Certification RoHS Compliance ISO 9001 Quality Management ISO 14001 Environmental Management UL Listed
Tested for reliability in off-grid applications worldwide
High Quality Components
Strict Quality Control
Global Compliance
Long-term Performance

Product Overview

The 3000w Pure Sine Wave Inverter (PP3000INV) is our flagship power solution, designed for those who refuse to compromise on energy availability. Whether powering an expedition-grade RV, a remote tiny home, or a professional mobile workshop, it delivers a consistent, high-capacity 3000W AC output that matches the quality of the residential utility grid.

Unmatched Power Capability

With 3000W of continuous power at your disposal, the PP3000INV simplifies off-grid living. It provides enough headroom to run heavy kitchen appliances like induction cooktops and high-end coffee machines simultaneously with air conditioning units or power-hungry industrial tools. Its massive 6000W surge capacity ensures that startup “inrush” current from heavy motors is handled safely and without interruption.

High-Fidelity Energy Quality

The core of the PP3000INV is its sophisticated inverter logic, which produces a clean, noise-free pure sine wave. This harmonic-pure output is critical for the long-term health of modern appliances, preventing the overheating and performance issues common with lower-quality inverters. It is the safe, certified choice for powering medical equipment, high-end computers, and sensitive laboratory gear.

Ergonomic Professional Interface

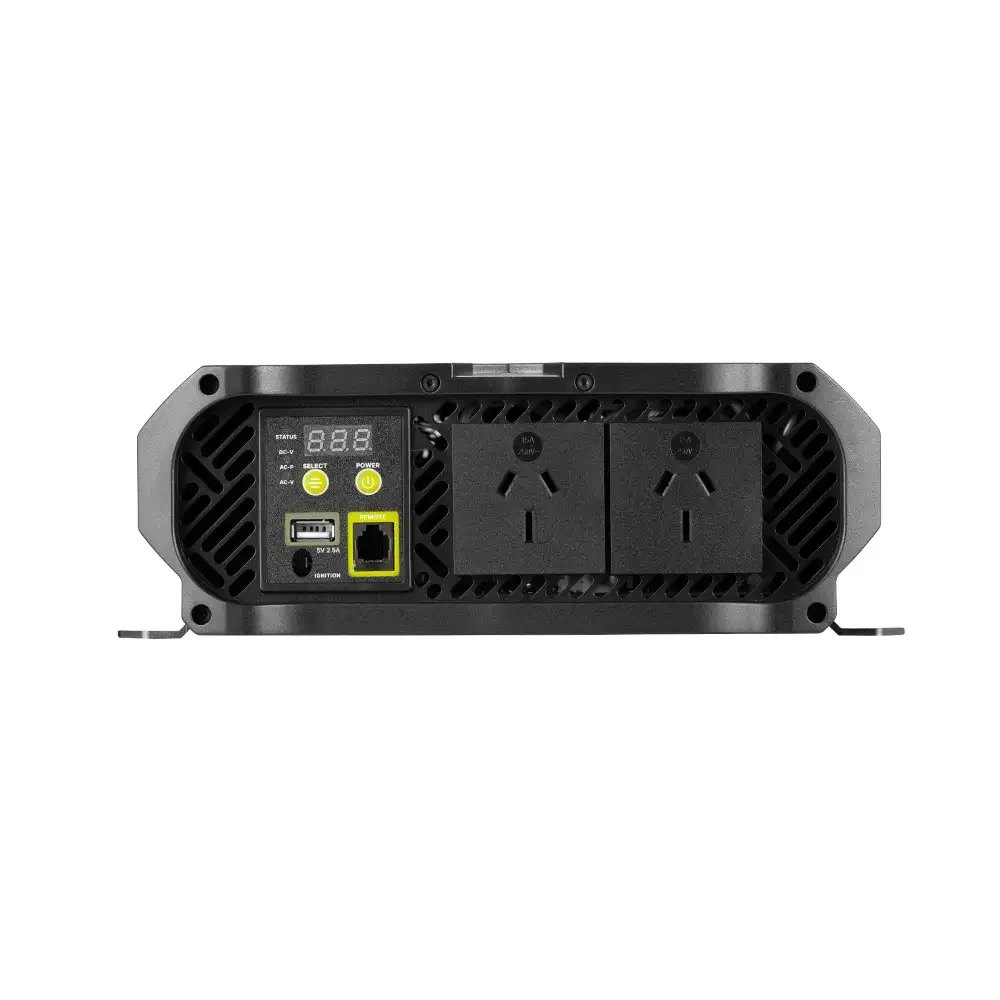

The front panel is a hub of connectivity and information. It features two Australian-standard AC outlets for direct high-load connection, along with integrated USB ports for mobile devices. The high-visibility LED display provides real-time system feedback, including input voltage and output load, while the remote port allows for centralized control from a main monitoring panel.

Engineered for Performance

To sustain 3000W delivery, the PP3000INV uses a heavy-duty 6063 aluminum alloy chassis designed for maximum heat dissipation. This is bolstered by a dynamic dual-fan cooling system that intelligently manages vertical airflow based on load and temperature. Fully compliant with RCM certification, the unit features an advanced safety suite including high-voltage and low-voltage protection, thermal management, and short-circuit protection.

Take your off-grid capabilities to the next level with the unrivaled 3000W power of the PP3000INV.

Key Technical Features

Flagship 3000W Output

The ultimate power solution for comprehensive off-grid energy, capable

6000W Massive Peak Surge

Engineered to handle even the most stubborn induction startup loads wi

Ultra-Clean Pure Sine Wave

Delivers grid-identical power with zero interference, protecting every

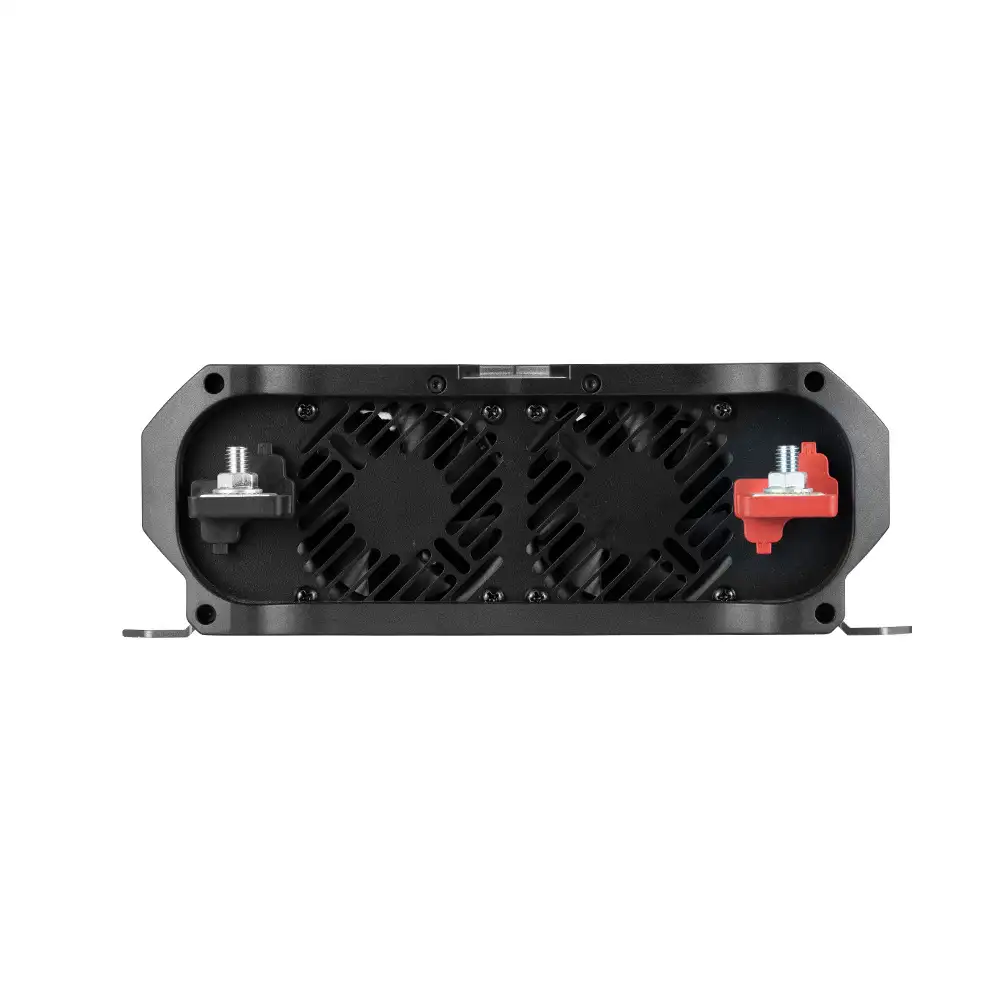

Dynamic Dual-Fan System

Industrial-grade cooling management with two high-speed fans providing

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Rated Output Power 3,000W
Surge Power (Peak Power) 6,000W
Input Voltage 12V DC
Input Voltage Range 10V to 15.5V DC
Output Voltage 220/230/240V ± 3V AC
Output Frequency 50/60Hz ± 0.5Hz
Output Waveform Pure Sine Wave
Maximum Efficiency 91%
Operating Temperature Range -10°C to +50°C
Dimensions 14.3 x 10.5 x 3.6 inches
Net Weight 10.27 lbs
Materials 6063 Aluminum Alloy, ABS, SPCC
Certifications RCM

Applicable Installation Scenarios

RV Systems
RV Systems
Marine
Marine
Trucks & Vans
Trucks & Vans
Off-grid Cabins
Off-grid Cabins
Backup Power
Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.

  • Pluggable Deployment
  • Smart Battery Matching
  • Max-Peak Efficiency
System Integration Flowchart
