Black 1500W Pure Sine Wave Inverter with LCD Display, showcasing dual cooling fans, power terminals, and a clear digital readout.
Inverters | Model: PSI1500-BLK-UD-PP

1500W Pure Sine Wave Inverter with LCD Display

Reliable power conversion for off-grid and mobile applications.

  • Integrated LCD Feedback
  • Dual AU AC Sockets
  • Ultra-Low Distortion
  • Dual-Fan Heat Dissipation

DC Input Voltage
12V DC (11~14VDC)
AC Output Voltage
220V~240VAC / 50±1Hz
Output Waveform
Pure Sine Wave
Safety & Protection
9.5V Shutdown / 15.5V Shutdown
Applications
RV, Marine, Off-grid, Backup Power
CE Certification RoHS Compliance ISO 9001 Quality Management ISO 14001 Environmental Management UL Listed
Tested for reliability in off-grid applications worldwide
High Quality Components
Strict Quality Control
Global Compliance
Long-term Performance

Product Overview

The 1500W Pure Sine Wave Inverter with LCD Display (PSI1500-BLK-UD-PP) is a sophisticated energy converter designed for users who demand both high performance and detailed system feedback. Bridging the gap between 12V DC battery power and high-quality 230V AC utility power, this unit is the perfect companion for off-grid touring, emergency backup, and remote workstations.

Real-Time Precision Monitoring

The standout feature of this model is its integrated high-visibility LCD display. Unlike standard inverters that rely on simple LED indicators, this unit provides a direct digital readout of the current battery voltage and the active load in watts. This allows you to manage your energy consumption with professional precision, ensuring you stay within the safe operating limits of your battery bank.

Superior Power Purity

Engineering excellence is at the heart of this inverter. By producing a pure sine wave with less than 3% total harmonic distortion (THD), it ensures that even the most sensitive electronics—such as medical equipment, lab instruments, and high-end audio hardware—operate flawlessly. It eliminates the motor hum and heating issues associated with lower-quality modified sine wave alternatives.

Enhanced Dual Connectivity

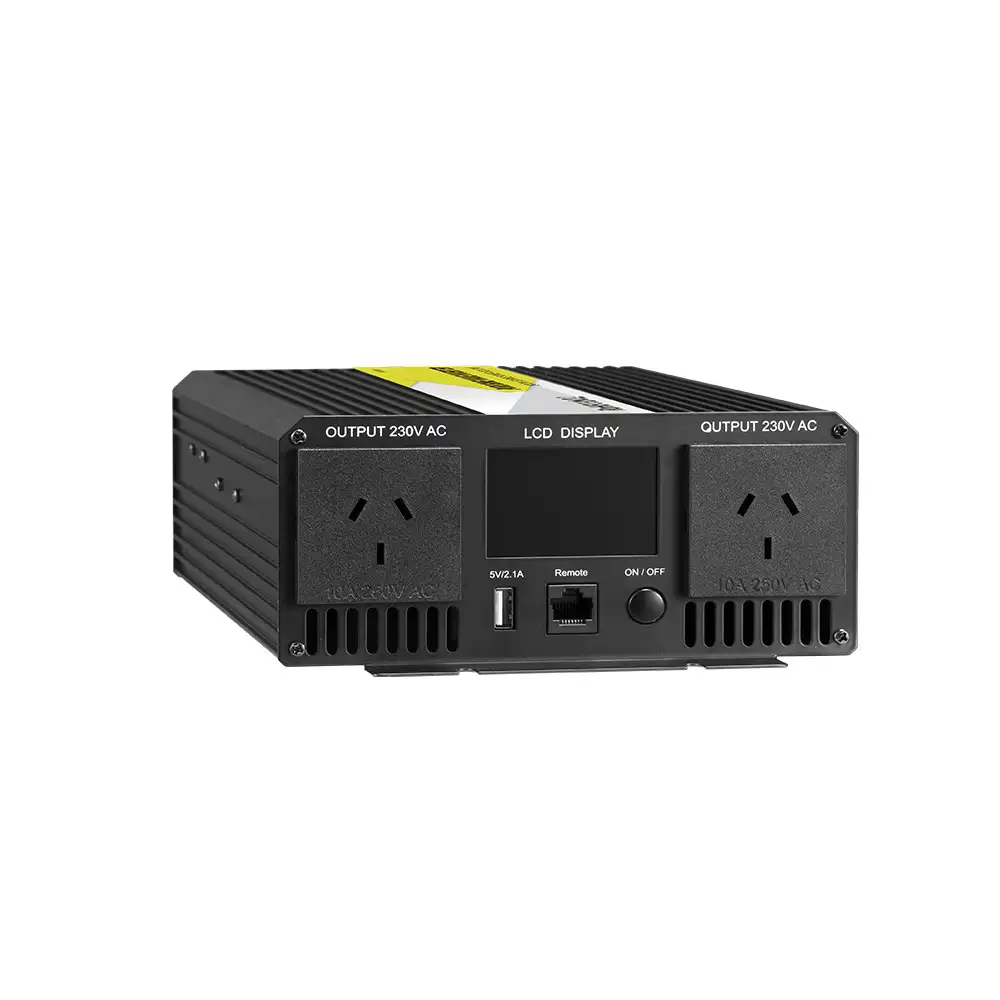

Optimized for the modern Australian traveler, the front panel features dual 230V AC sockets. This enables the simultaneous operation of essential items like a portable fridge and a laptop without the need for additional power boards. A dedicated 5V 2.1A USB port is also included for high-speed charging of mobile devices.

Industrial-Grade Reliability

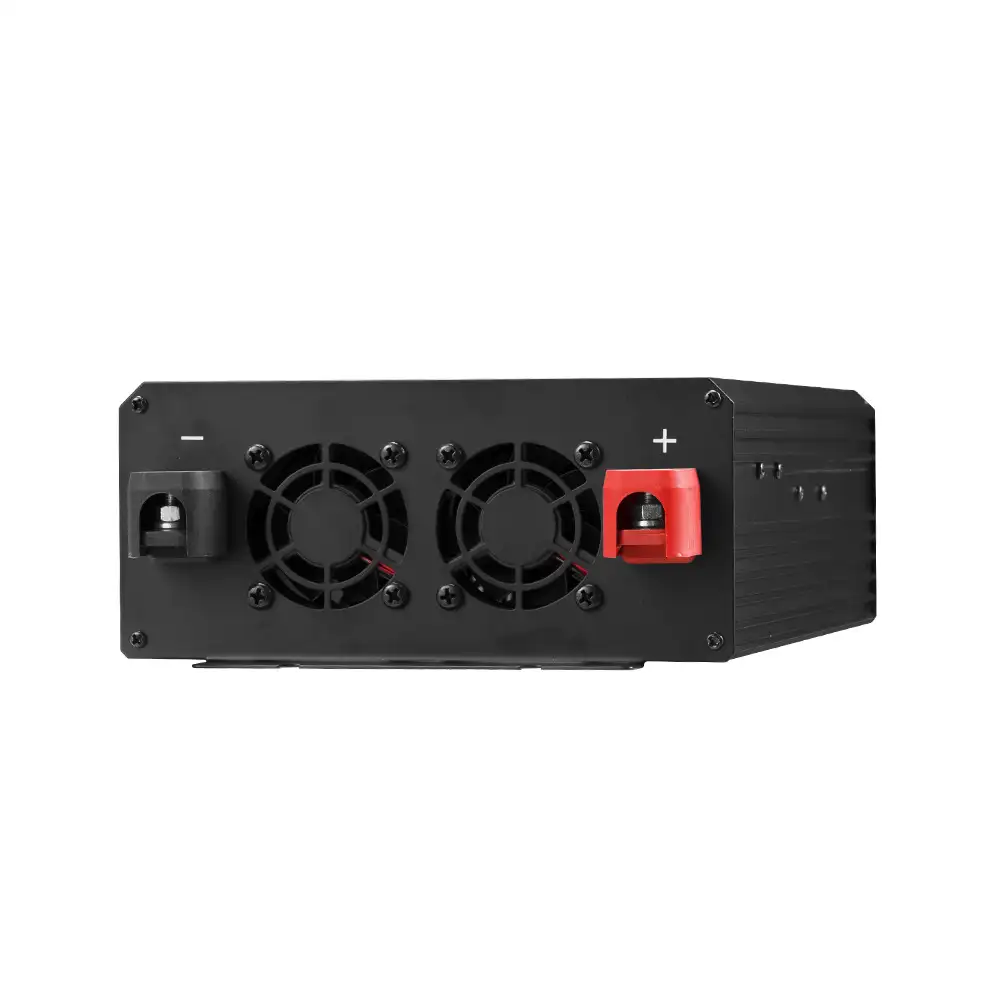

The inverter is built into a robust, black ribbed aluminum alloy chassis designed for maximum thermal conductivity. Thermal management is handled by dual high-speed fans that provide active airflow during high-demand sessions. With comprehensive protection against low voltage, high voltage, and short circuits, the PSI1500 ensures your power system remains safe and stable in any environment.

Elevate your off-grid experience with the data-driven performance of the 1500W LCD Pure Sine Wave Inverter.

Key Technical Features

Integrated LCD Feedback

Features a high-contrast digital display providing real-time data on b

Dual AU AC Sockets

Equipped with two 230V Australian-standard AC outlets, allowing for si

Ultra-Low Distortion

Delivers a pure sine wave with less than 3% total harmonic distortion,

Dual-Fan Heat Dissipation

Optimized thermal management with dual high-speed fans that activate b

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Continuous Power 1500W
Peak Power 3000W
Output Voltage / Frequency 220V~240VAC / 50±1Hz
Output Waveform Pure Sine Wave
Total Harmonic Distortion (THD) ≤ 3%
Rated Input Voltage/Range 12V DC (11~14VDC)
Static Output Current 0.3~1.2A
USB Output 5V, 2.1A
Sockets (AC / USB) 2 x AU Sockets / 1 x USB
Protection Thresholds (Low/High) 9.5V Shutdown / 15.5V Shutdown
Maximum Efficiency 91%
Operational Temperature 0°C ~ +40°C

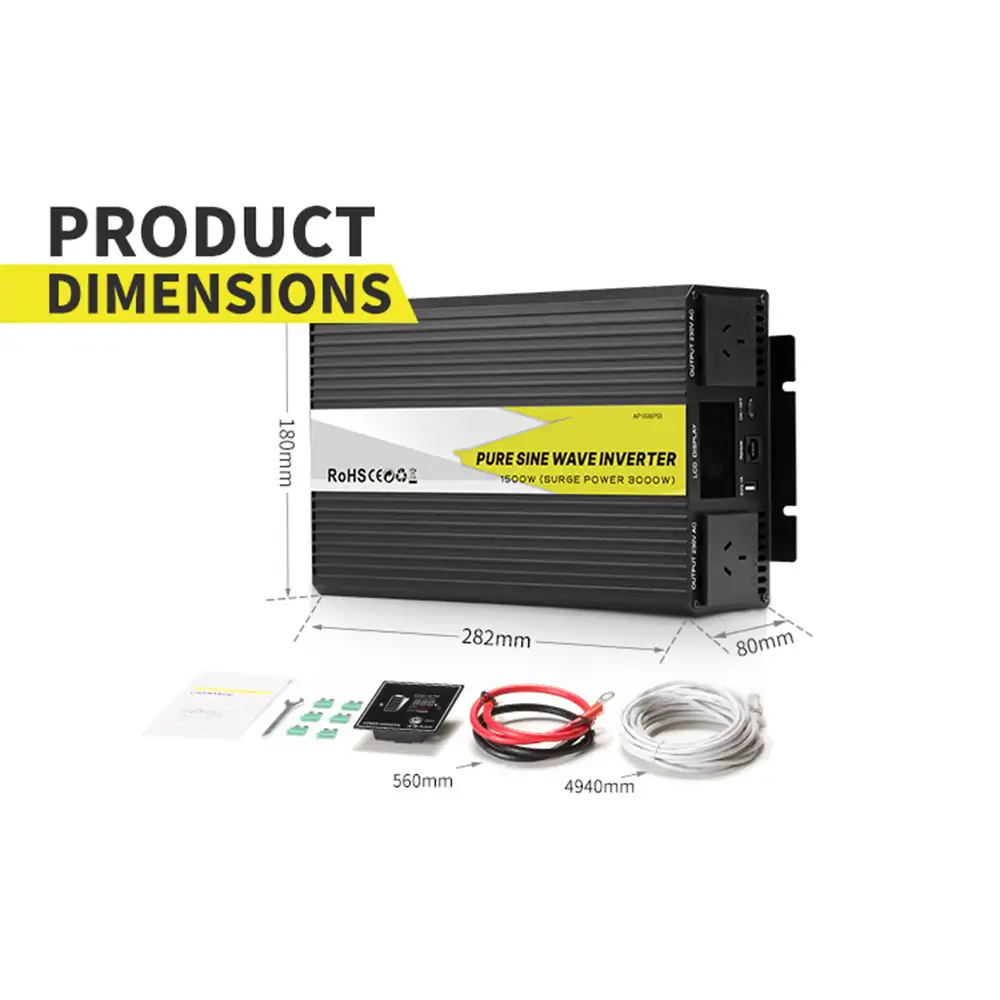

Mounting Points 30.6 x 7 cm (12.05’’ x 2.76’’)

Applicable Installation Scenarios

RV Systems
RV Systems
Marine
Marine
Trucks & Vans
Trucks & Vans
Off-grid Cabins
Off-grid Cabins
Backup Power
Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.

  • Pluggable Deployment
  • Smart Battery Matching
  • Max-Peak Efficiency
System Integration Flowchart
