Inverters | Model: PP1000INV

1000w Pure Sine Wave Inverter

Reliable power conversion for off-grid and mobile applications.

Pure Sine Wave
High Performance
Industrial Grade
Efficiency Optimized

DC Input Voltage

12V DC

AC Output Voltage

220/230/240V ± 3V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

The 1000W Pure Sine Wave Inverter is a cornerstone of professional off-grid power systems. Designed for reliability and performance, it converts 12V DC power into high-quality AC power that is safe for laptops, medical equipment, and precision tools.

Key Benefits

Clean Energy Output: The pure sine wave ensures that your devices operate at peak performance without the noise or overheating associated with modified sine wave inverters.
Rugged Construction: Built to withstand demanding environments, the aluminum alloy housing provides excellent impact resistance and thermal management.
Intelligent Monitoring: Features a front-facing LED display that provides real-time feedback on operating status and battery levels.
Global Compliance: Fully certified with RCM standards, ensuring safety and quality for international markets.

Whether you are equipping a service vehicle, a remote cabin, or an emergency backup system, this inverter provides the stable power foundation you need.

Key Technical Features

Pure Sine Wave

Provides clean, stable power identical to grid electricity, protecting

High Performance

1,000W continuous output with 2,000W surge capacity to handle startup

Industrial Grade

Constructed with 6063 Aluminum Alloy and SPCC for superior durability

Efficiency Optimized

Advanced circuitry achieves up to 91% conversion efficiency, minimizin

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

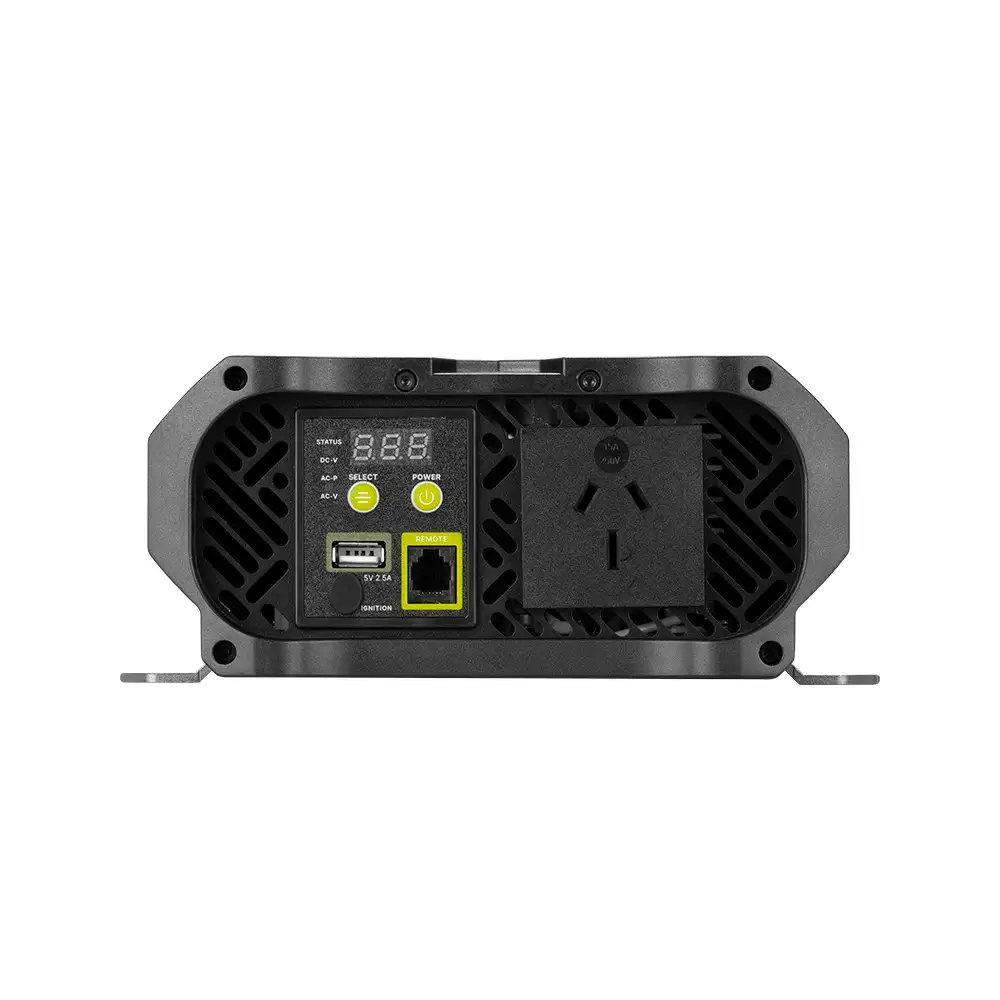

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Rated Output Power 1,000W

Surge Power (Peak Power) 2,000W

Input Voltage 12V DC

Input Voltage Range 10V to 15.5V DC

Output Voltage 220/230/240V ± 3V AC

Output Frequency (Nominal) 50/60Hz ± 0.5Hz

Output Waveform Pure Sine Wave

Maximum Efficiency 91%

Operating Temperature Range -10°C to +50°C

Dimensions 332.7 x 213.8 x 91.8 mm

Weight 3.26kg

Materials 6063 Aluminum Alloy, ABS, SPCC

Certifications RCM

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
