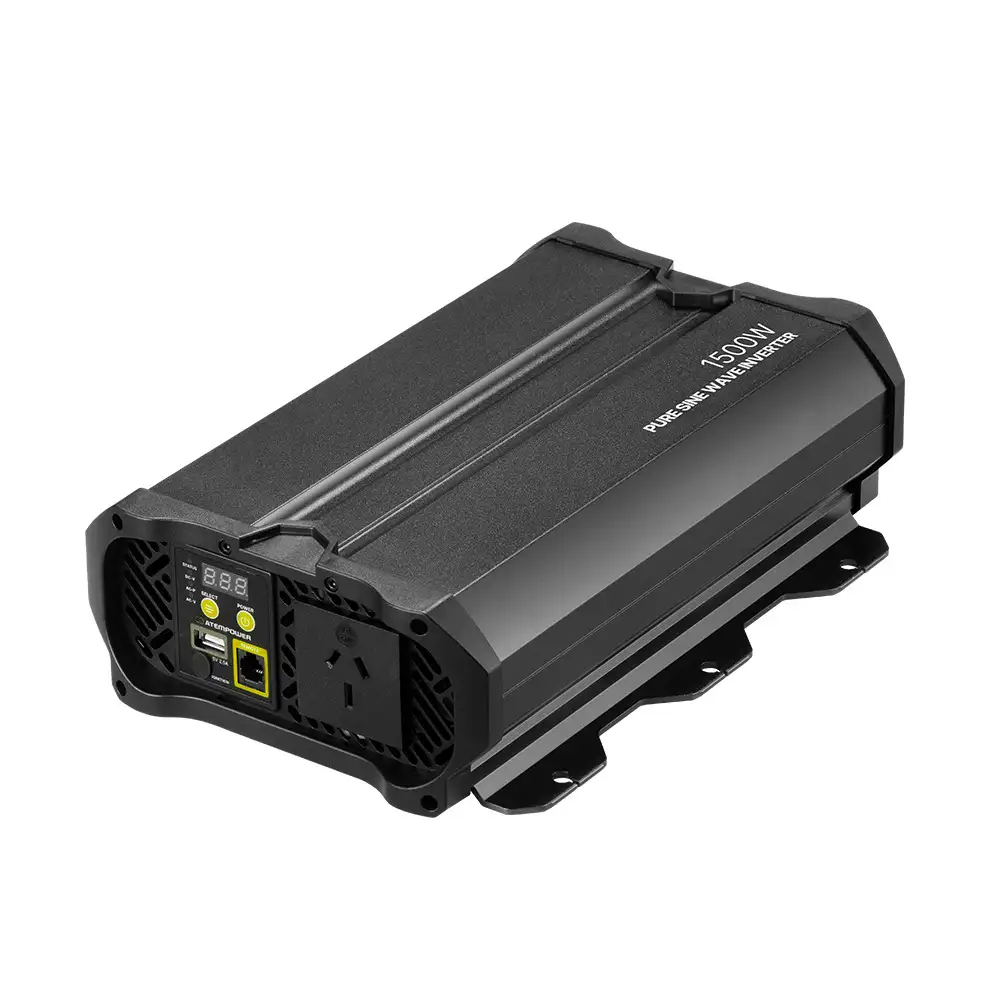

The black 1500w Pure Sine Wave Inverter shows its "1500W" branding, "8.8.8" LED display, AC outlet, and 5V 2.1A USB port.
Inverters | Model: PP1500INV

1500w Pure Sine Wave Inverter

Reliable power conversion for off-grid and mobile applications.

  • Clean Power Output
  • High Surge Capacity
  • Intelligent Monitoring
  • Advanced Thermal Management

DC Input Voltage
12V DC
AC Output Voltage
220/230/240V ± 3V AC
Output Waveform
Pure Sine Wave
Safety & Protection
Overload, Short Circuit, Temp
Applications
RV, Marine, Off-grid, Backup Power
CE Certification RoHS Compliance ISO 9001 Quality Management ISO 14001 Environmental Management UL Listed
Tested for reliability in off-grid applications worldwide
High Quality Components
Strict Quality Control
Global Compliance
Long-term Performance

Product Overview

The 1500w Pure Sine Wave Inverter (PP1500INV) is a professional-grade power solution designed for vehicle, marine, and off-grid solar applications. It bridges the gap between portable power and household convenience, providing a robust 1500W of clean energy for your essential appliances and high-end electronics.

Professional-Grade Power Delivery

Unlike traditional modified sine wave inverters, the PP1500INV produces a smooth, continuous pure sine wave. This ensures that sensitive equipment—such as laptops, medical devices, and precision instruments—operates without interference or risk of damage. With a massive 2900W peak surge capacity, it effortlessly handles inductive loads from devices like portable fridges and power tools.

Intelligent System Oversight

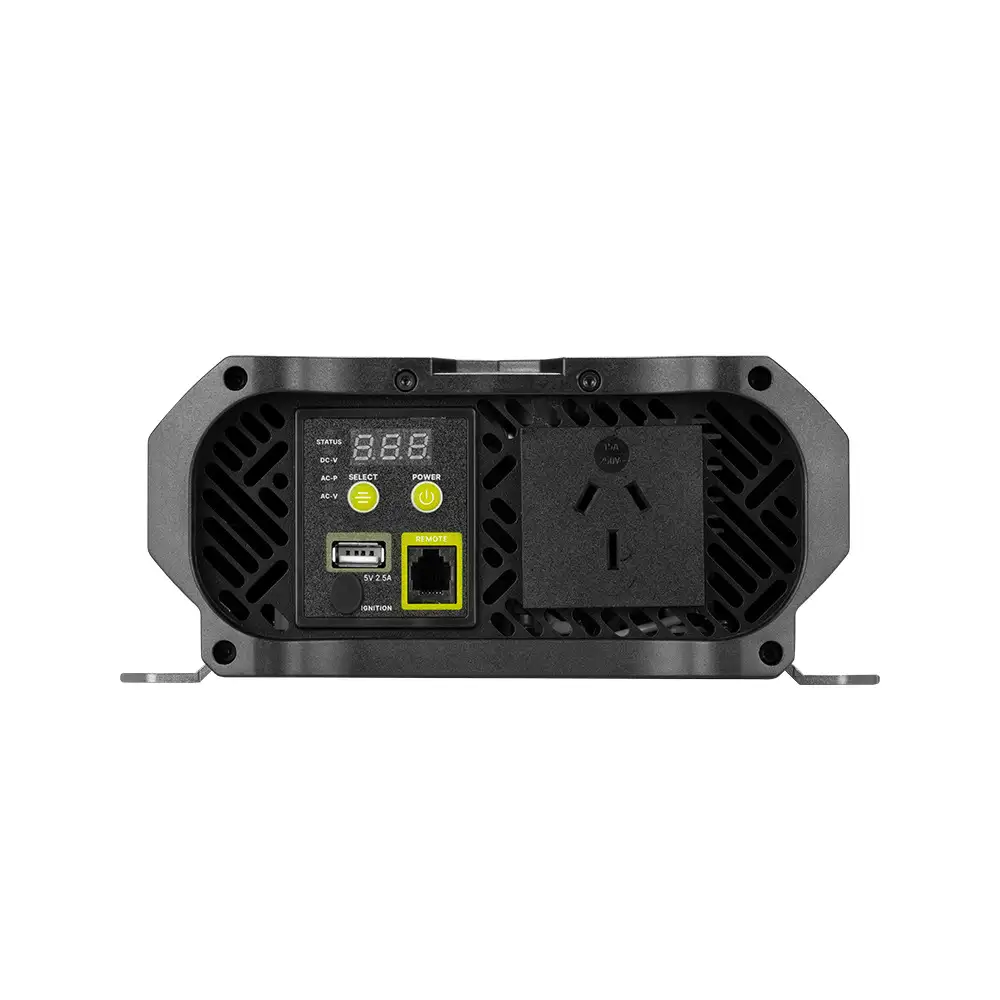

The front panel features a bright LED “8.8.8” display, providing constant feedback on your system’s performance. Combined with an integrated 5V 2.1A USB port and a 15A 240V AC outlet, it provides local power access for small devices while driving larger household items. For those requiring integrated setups, a dedicated remote connection port is included.

Industrial Thermal Efficiency

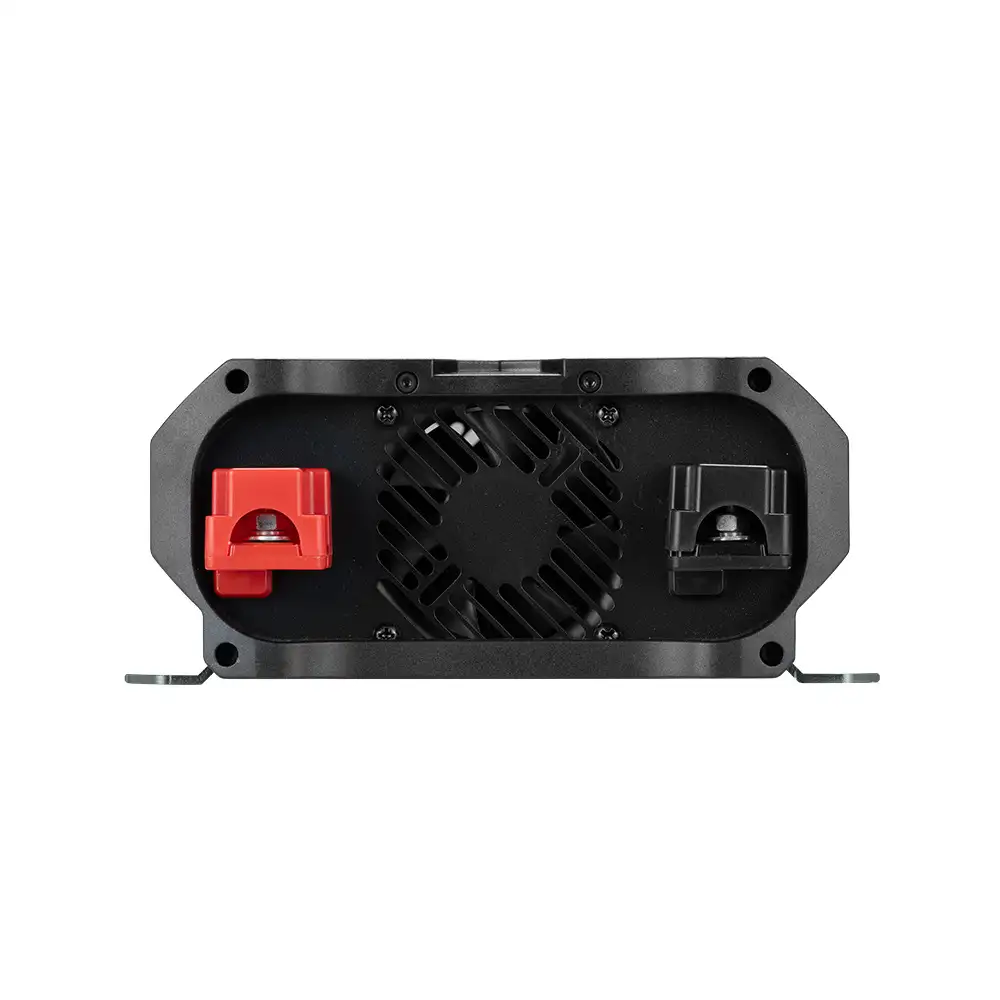

Built to last in demanding environments, the inverter is housed in a high-quality 6063 Aluminum Alloy and SPCC steel chassis. This rugged construction works in tandem with an intelligent rear cooling fan that dynamically adjusts based on load and temperature, minimizing noise and reducing energy consumption during low-power operation.

Compliance and Safety

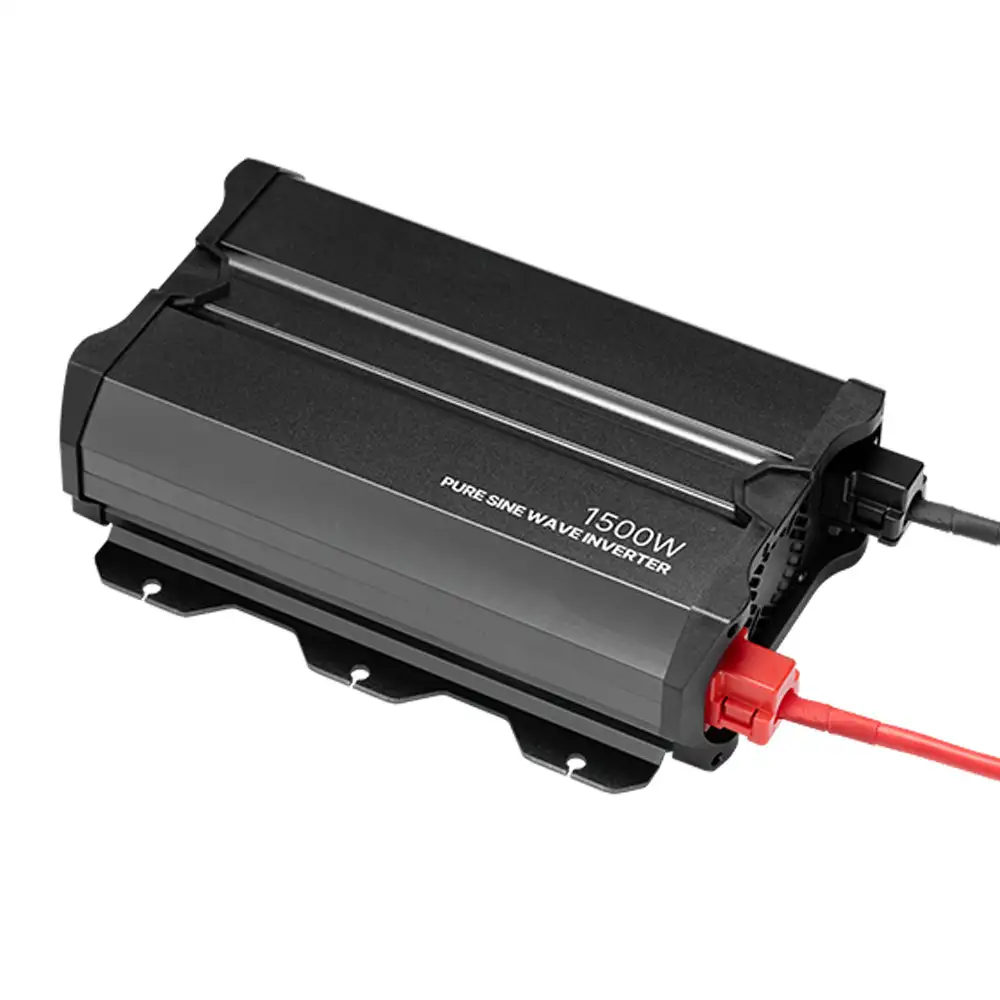

Fully certified with RCM standards, the PP1500INV incorporates a full suite of protection circuitry, including over-voltage, low-voltage, thermal, and short-circuit safeguards. These features, combined with high-current red and black battery terminals, ensure a safe and reliable foundation for any professional off-grid power ecosystem.

Experience grid-quality power wherever the road takes you with the PP1500INV.

Key Technical Features

Clean Power Output

Provides a pure sine wave identical to grid power, ensuring the safe o

High Surge Capacity

Delivers a 2900W peak surge to easily handle the initial startup loads

Intelligent Monitoring

Equipped with an '8.8.8' LED display for real-time tracking of input v

Advanced Thermal Management

Constructed with 6063 Aluminum Alloy and SPCC, featuring an intelligen

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Rated Output Power 1,500W
Surge Power (Peak Power) 2,900W
Input Voltage 12V DC
Input Voltage Range 10V to 15.5V DC
Output Voltage 220/230/240V ± 3V AC
Output Frequency 50/60Hz ± 0.5Hz
Output Waveform Pure Sine Wave
Maximum Efficiency 91%
Operating Temperature Range -10°C to +50°C
Dimensions 13.1 x 8.4 x 3.6 inches
Net Weight 7.2 lbs
Materials 6063 Aluminum Alloy, ABS, SPCC
Certifications RCM

Applicable Installation Scenarios

RV Systems
RV Systems
Marine
Marine
Trucks & Vans
Trucks & Vans
Off-grid Cabins
Off-grid Cabins
Backup Power
Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.

  • Pluggable Deployment
  • Smart Battery Matching
  • Max-Peak Efficiency
System Integration Flowchart
