A dark gray 2500w Pure Sine Wave Inverter displays "2500W" text, an LED screen, two AC outlets, and side cooling vents.
Inverters | Model: PP2500INV

2500w Pure Sine Wave Inverter

Reliable power conversion for off-grid and mobile applications.

  • Ultra-Powerful 2500W Output
  • Scientific-Grade Power
  • 4900W Peak Surge
  • Rugged Industrial Build

DC Input Voltage
12V DC
AC Output Voltage
220/230/240V ± 3V AC
Output Waveform
Pure Sine Wave
Safety & Protection
Overload, Short Circuit, Temp
Applications
RV, Marine, Off-grid, Backup Power
CE Certification RoHS Compliance ISO 9001 Quality Management ISO 14001 Environmental Management UL Listed
Tested for reliability in off-grid applications worldwide
High Quality Components
Strict Quality Control
Global Compliance
Long-term Performance

Product Overview

The 2500w Pure Sine Wave Inverter (PP2500INV) represents the pinnacle of mobile power conversion. Engineered for extreme duty cycles in large RVs, yachts, and commercial worksites, it provides a monumental 2500W of stable AC power, turning your DC battery bank into a full-service household power grid.

Unrivaled Load Handling

With a 2500W continuous rating, the PP2500INV is designed for users who don’t want to choose which appliance to run. It has the headroom to power high-extraction hairdryers, convection ovens, large coffee stations, or multiple high-draw electronics simultaneously. Its staggering 4900W surge capacity ensures that even the most demanding induction startup loads don’t trip your system.

Precision Clean Energy

The pure sine wave output is carefully regulated to match and even exceed grid-quality electricity. By maintaining a clean, harmonic-free waveform, it protects sensitive precision instruments and medical equipment from interference. Whether you’re running a remote studio or essential medical devices, the PP2500INV delivers silence and stability.

Optimized for Multi-Device Use

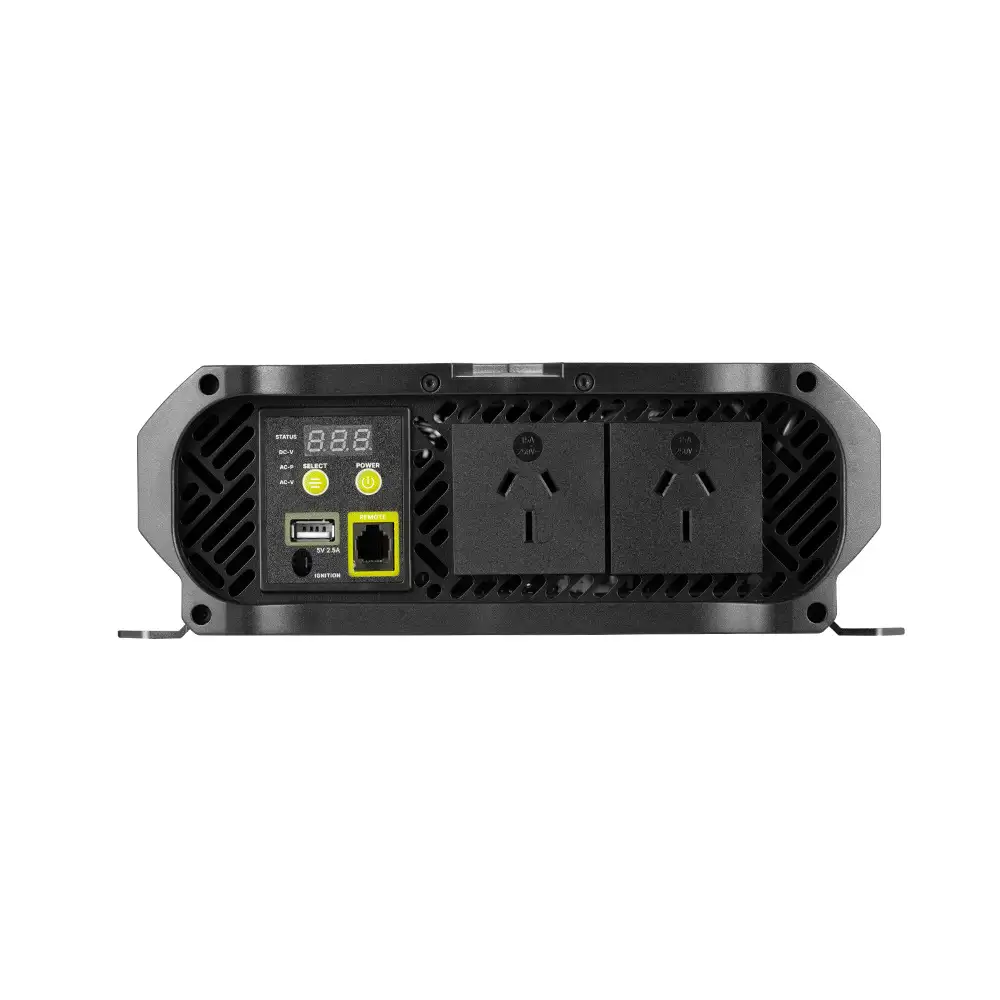

The front interface features dual 240V Australian-standard AC outlets, allowing for direct connection of high-power appliances without the voltage drops associated with long extension cords. Integrated high-output USB ports provide dedicated charging for mobile devices, while the bright LED screen keeps you informed of the system’s vital statistics.

Industrial-Grade Reliability

Built into a heavy-duty 6063 aluminum alloy chassis, the PP2500INV features advanced thermal dynamics. Dual high-speed fans work together with the integrated heat-sink fins to manage temperatures during extreme power delivery. Fully certified with RCM standards, it includes a comprehensive safety suite protecting against overloads, temperature extremes, and battery irregularities.

Experience the ultimate in reliable, high-capacity off-grid power with the PP2500INV.

Key Technical Features

Ultra-Powerful 2500W Output

A massive continuous output designed to run multiple high-draw applian

Scientific-Grade Power

Produces a flawless pure sine wave with less than 3% harmonic distorti

4900W Peak Surge

An industry-leading surge capacity of 4900W provides the extreme torqu

Rugged Industrial Build

Housed in a 6063 Aluminum Alloy and SPCC chassis for superior heat dis

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Rated Output Power 2,500W
Surge Power (Peak Power) 4,900W
Input Voltage 12V DC
Input Voltage Range 10V to 15.5V DC
Output Voltage 220/230/240V ± 3V AC
Output Frequency 50/60Hz ± 0.5Hz
Output Waveform Pure Sine Wave
Maximum Efficiency 91%
Operating Temperature Range -10°C to +50°C
Dimensions 14.3 x 10.5 x 3.6 inches
Net Weight 10.27 lbs
Materials 6063 Aluminum Alloy, ABS, SPCC
Certifications RCM

Applicable Installation Scenarios

RV Systems
RV Systems
Marine
Marine
Trucks & Vans
Trucks & Vans
Off-grid Cabins
Off-grid Cabins
Backup Power
Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.

  • Pluggable Deployment
  • Smart Battery Matching
  • Max-Peak Efficiency
System Integration Flowchart
