Batteries | Model: PP12BB-S

Compact 12V Battery Box with PD30W Multi-Port DC Output

Reliable power conversion for off-grid and mobile applications.

Industrial grade robust casing & thermal design

DC Input Voltage

12V DC

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

The Compact 12V Battery Box with PD30W Multi-Port DC Output is an incredibly portable and highly efficient off-grid power storage solution. Featuring extensive fast charging compatibility, including QC3.0 and PD3.0 protocols up to 30W, it’s designed specifically for seamless integration with a vast array of modern tech devices alongside robust 12V hardware via 50A Anderson and Cigarette Lighter ports.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

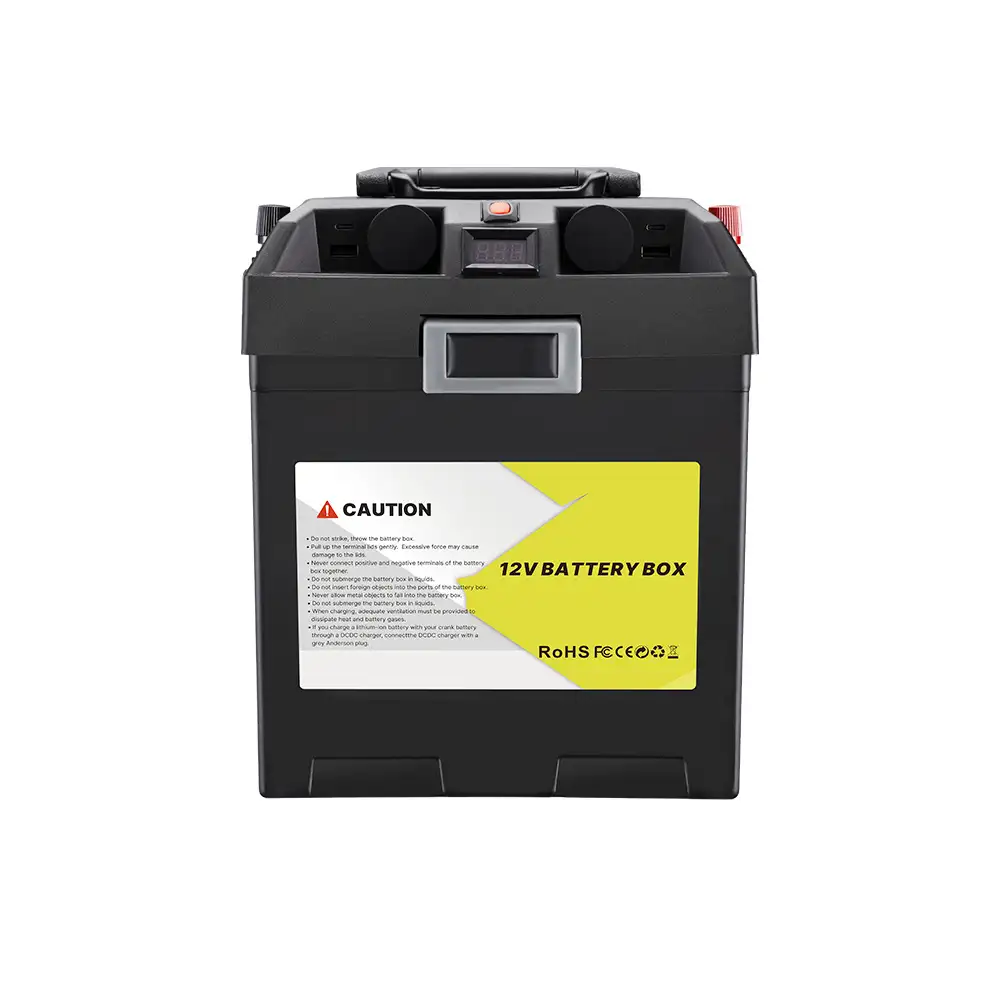

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

USB Output Details Type-C1 & C2: PD30W, 5V/3A, 9V/3A, 3.3V~5.9V/3A, 3.3V~11V/3A Type-A1 & A2: QC18W, 5V/3.6A, 9V/2.5A

Color Black

Case Material PP

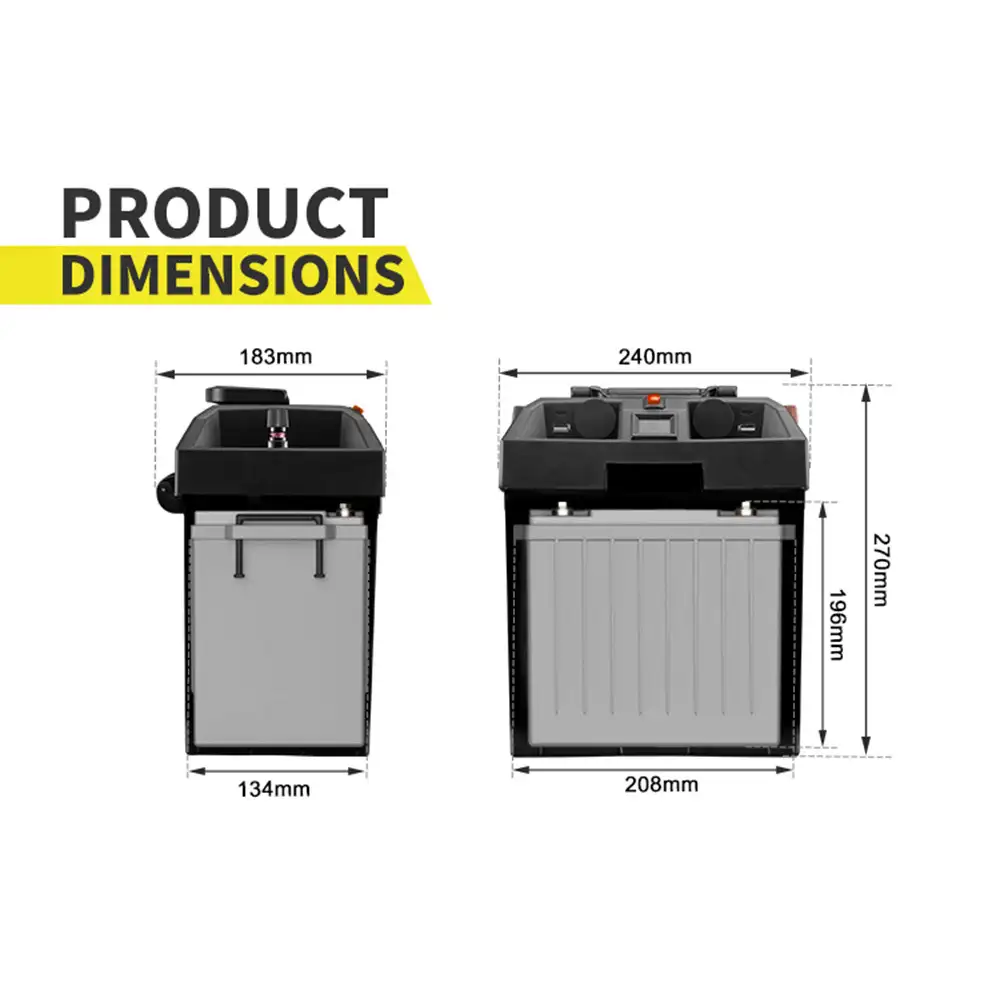

Package Dimension 10.04"L (25.5cm) x 7.99"W (20.3cm) x 11.93"H (30.3cm)

Gross Weight 3.57lbs (1.62kg)

N.W. 2.60lbs (1.18kg)

Load Capacity (Max) 33lbs (15kg)

Input Voltage 12V DC

Cigarette Lighter Socket 12V, 10A

USB Port (Max) 30W

Supported Fast Charging Protocols QC2.0/QC3.0, PD2.0/PD3.0 (PPS), BC1.2, MTK PE+1.1/MTK PE+2.0, FCP (Huawei), SCP (Huawei), AFC (Samsung), SFCP (Spreadtrum), VOOC (OPPO), Super VOOC (OPPO)

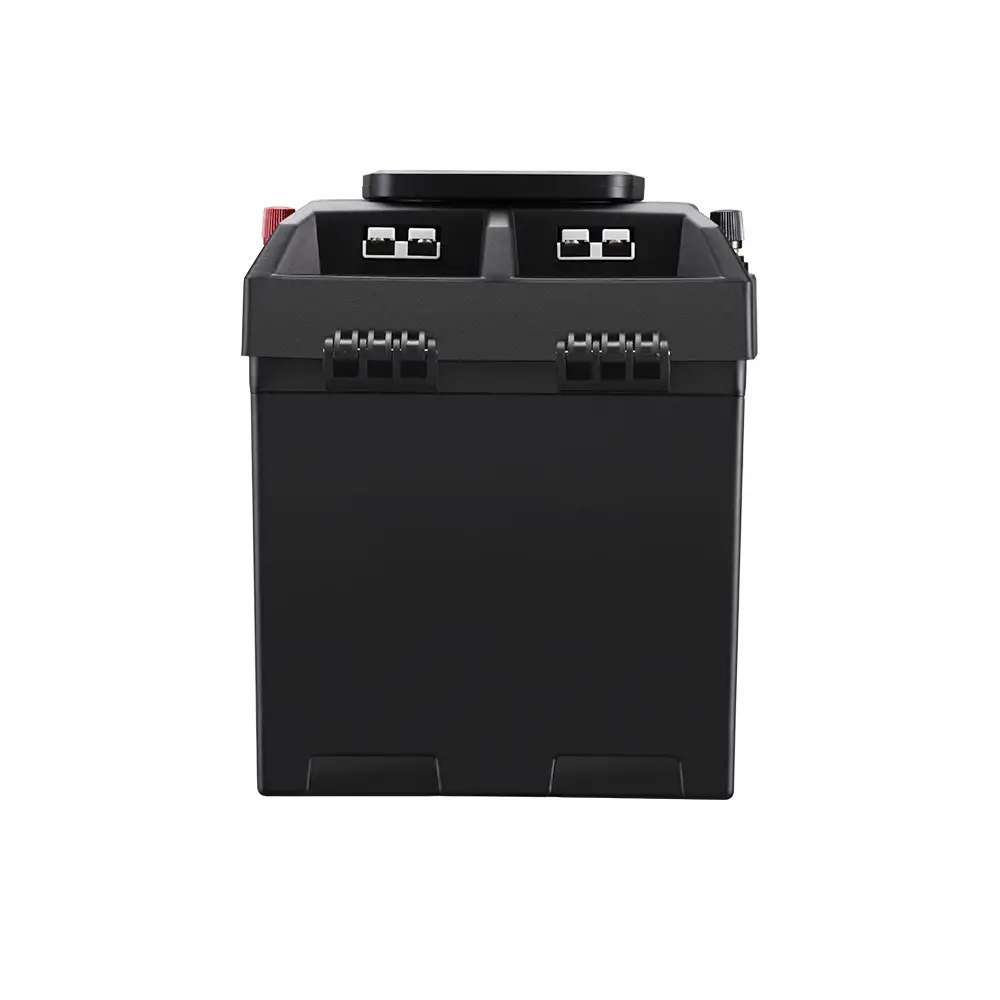

Anderson Plug 50A

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
