Batteries | Model: PP150LFP-MP-S

12V 150Ah LiFePO4 Battery with Prismatic Cells

Reliable power conversion for off-grid and mobile applications.

Industrial grade robust casing & thermal design

DC Input Voltage

12V / 24V DC

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

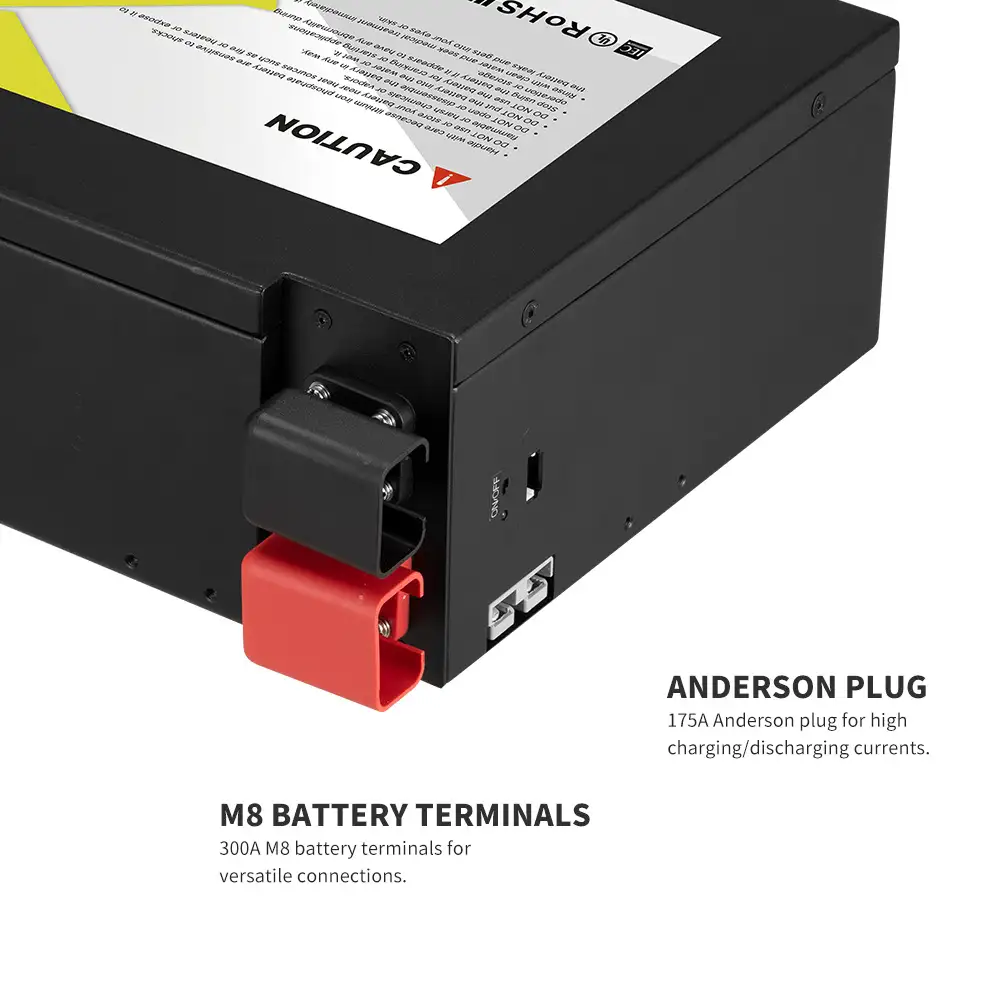

Elevate your off-grid energy storage with the 12V 150Ah LiFePO4 Battery with Prismatic Cells. Specifically built with automotive-grade prismatic cells, this advanced power reservoir delivers an impressive 1,920Wh of energy backed by a reliable 3,000* cycle lifespan. Outfitted with heavy-duty M8 terminals, a high-amperage 175A Anderson quick-connect plug, and a digital smart-monitoring interface via smartphone app connectivity, it offers unprecedented control and performance visibility. Engineered for exceptional stability and massive 150A continuous discharge capabilities, it easily supports massive 4S/4P expansion banks, making it a professional-grade solution for commercial RVs, advanced marine setups, and remote industrial applications.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

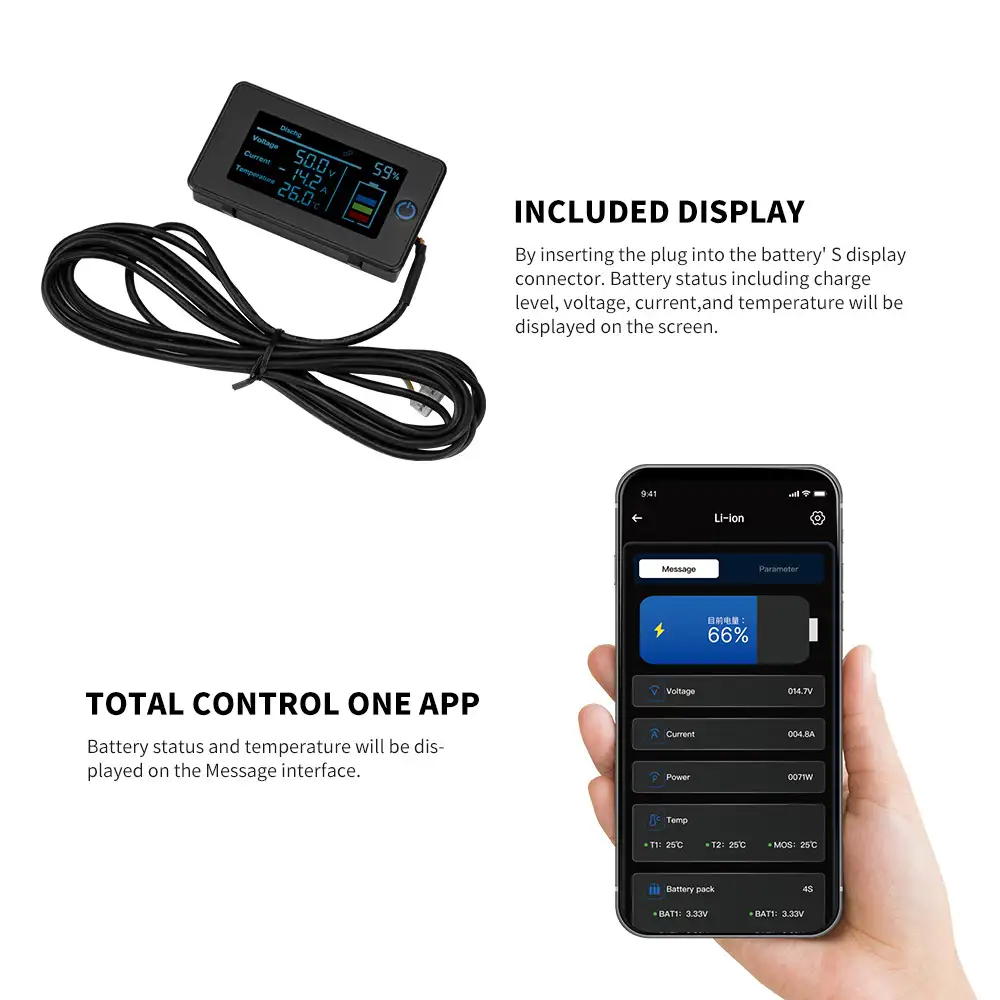

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Capacity 150Ah

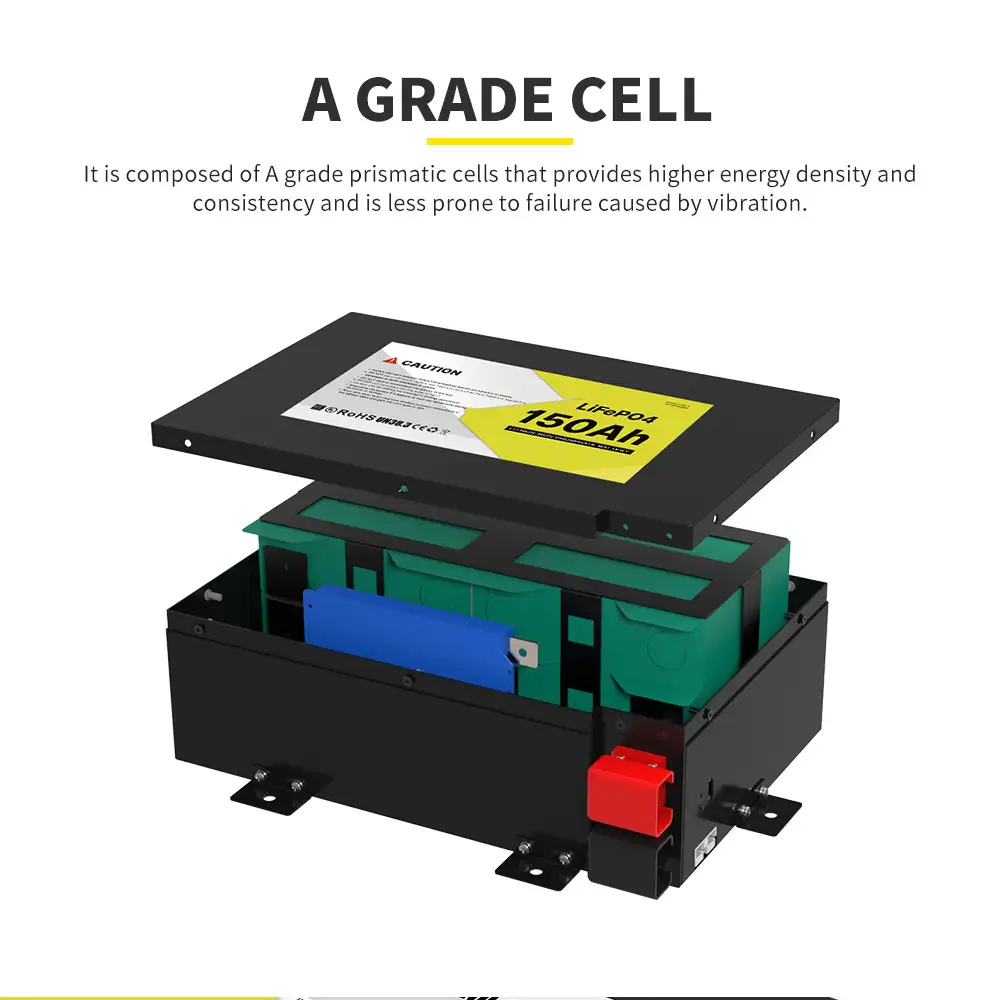

Cell Type Prismatic LiFePO4 Cells

Nominal Voltage 12.8V

Energy 1,920Wh

Cycle Life 3,000*

Discharging Cut-off Voltage 10V

Charge Cut-off Voltage 14.4V

Max. Charge Current 75A

Max.Continuous Discharge Current 150A

Max. Pulse Discharge Current 225A

Max. Modules in Series/Parallel 4S/4P or 4S&4P Setups

Discharge Temperature -20℃~60℃

Charge Temperature 0℃C~55℃

Storage Temperature -20℃~60℃

Storage Humidity 0~90%

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
