Batteries | Model: PP100LFP-12V

12V 100Ah LiFePO4 Battery with Built-in BMS

Reliable power conversion for off-grid and mobile applications.

Industrial grade robust casing & thermal design

DC Input Voltage

12V / 24V DC

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

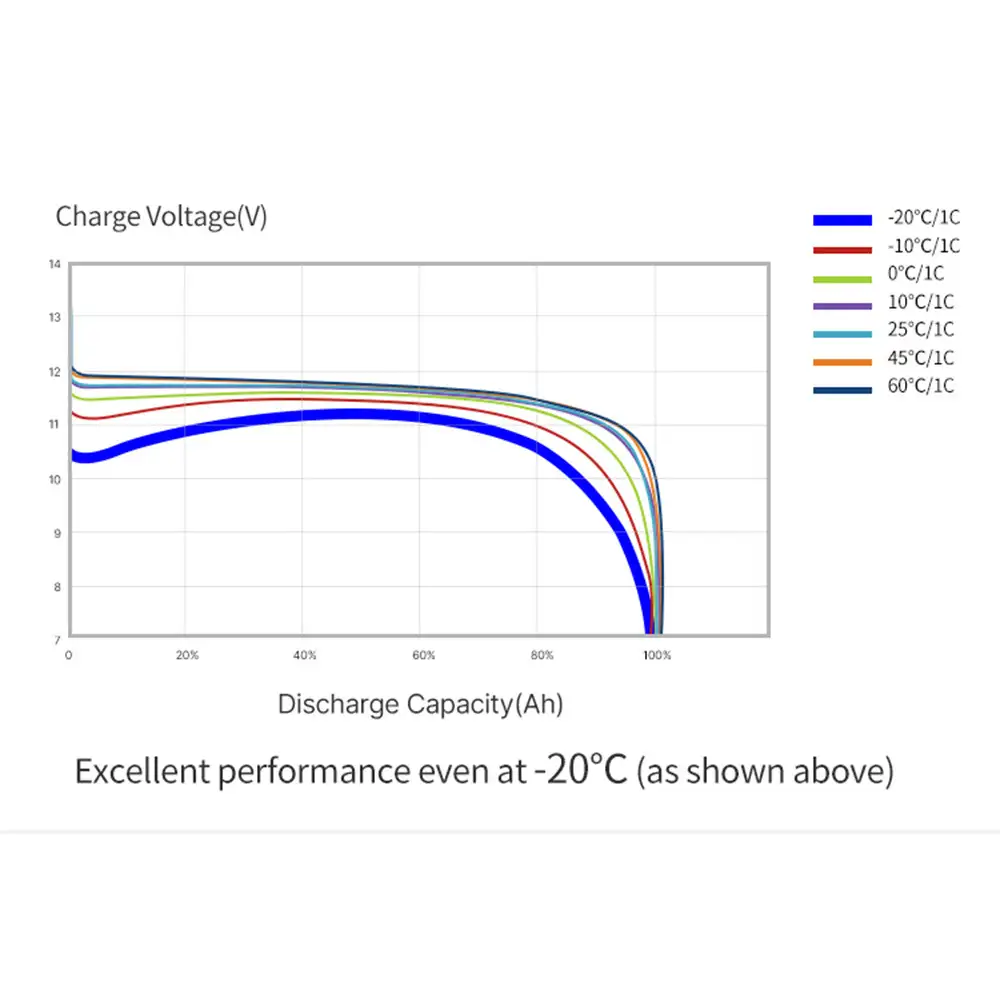

The 12V 100Ah LiFePO4 Battery with Built-in BMS stands as a robust and high-capacity cornerstone for demanding off-grid energy storage systems. Engineered with premium Lithium Iron Phosphate (LiFePO4) chemistry, this battery delivers exceptional safety, prolonged cycle life exceeding 2,000 cycles, and stellar performance even in adverse temperatures down to -20°C. An intelligent, built-in Battery Management System (BMS) continuously monitors the cells, providing comprehensive protection against overcharge, over-discharge, high currents, and temperature extremes. Boasting a heavy-duty carrying strap and extensive modularity for series/parallel configurations, it constitutes the ideal deep-cycle power reservoir for RVs, marine applications, and off-grid solar setups.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Nominal Capacity 100Ah

Nominal Voltage 12.8V

Cycle Life 2,000 Cycles

Charge Voltage 10V~14.6V

Max. Charge Current (25°C) 50A

Max. Continuous Discharge Current (25°C) 100A

Max. Discharge Current (≤7S) 200A

Charge Temperature 0°C~60°C

Discharge Temperature -20~70°C

Storage Temperature -20°C~45°C

Internal Impedance ≤10mΩ

Self-discharge Rate (per month) 2%

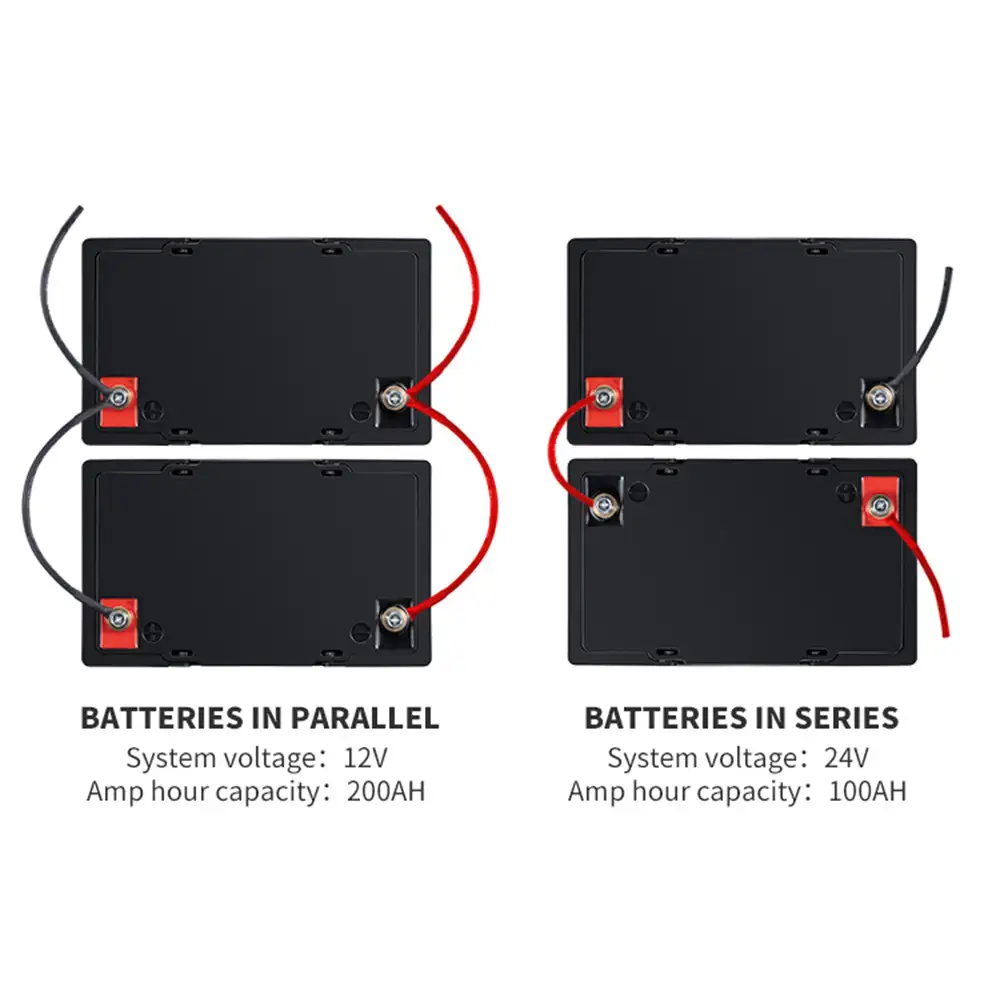

Max. Modules in Series/Parallel 2S/2P

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
