Batteries | Model: PP100LFP-MP

12V 100Ah LiFePO4 Battery with Prismatic Cells

Reliable power conversion for off-grid and mobile applications.

Industrial grade robust casing & thermal design

DC Input Voltage

12V / 24V DC

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

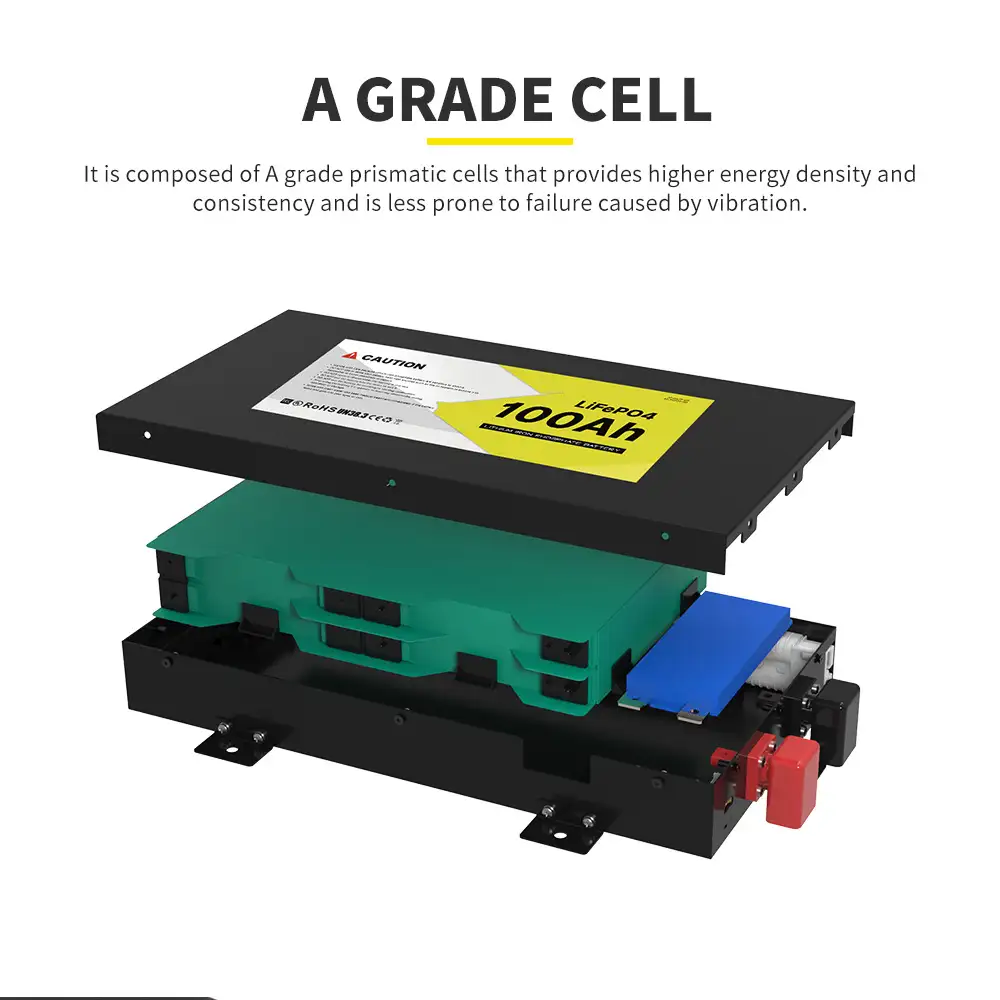

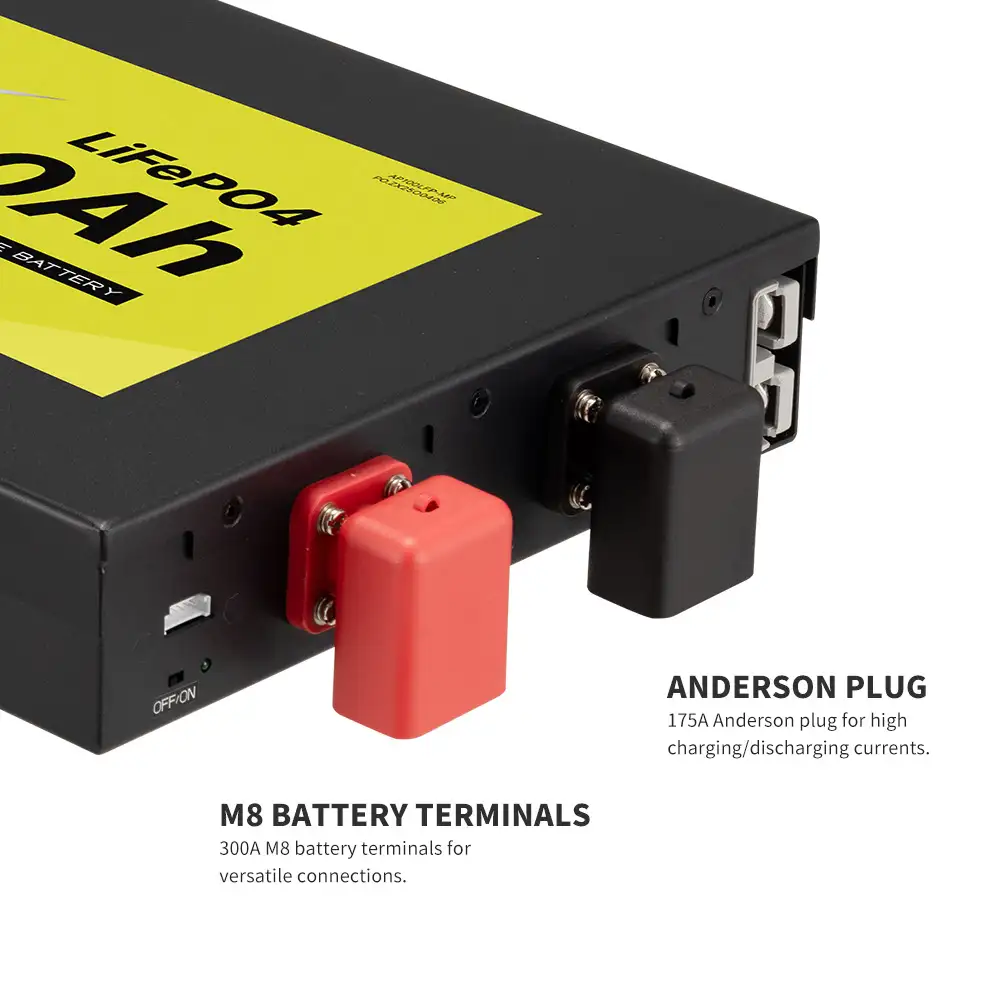

The 12V 100Ah LiFePO4 Battery with Prismatic Cells represents the pinnacle of modern energy storage technology. Built exclusively with high-grade prismatic automotive cells rather than cylindrical alternatives, this battery offers a phenomenal cycle life of up to 6,000 cycles for industry-leading longevity and stability. Packed with real-world conveniences, it features an integrated Anderson plug, an ON/OFF switch, and seamless smart-app connectivity for comprehensive real-time monitoring of your power vitals. Highly scalable with support for up to 4S/4P array configurations and capable of delivering massive 150A continuous discharge currents, this robust battery is optimally designed to fulfill the extreme power demands of elite marine, RV, and sophisticated off-grid solar systems.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

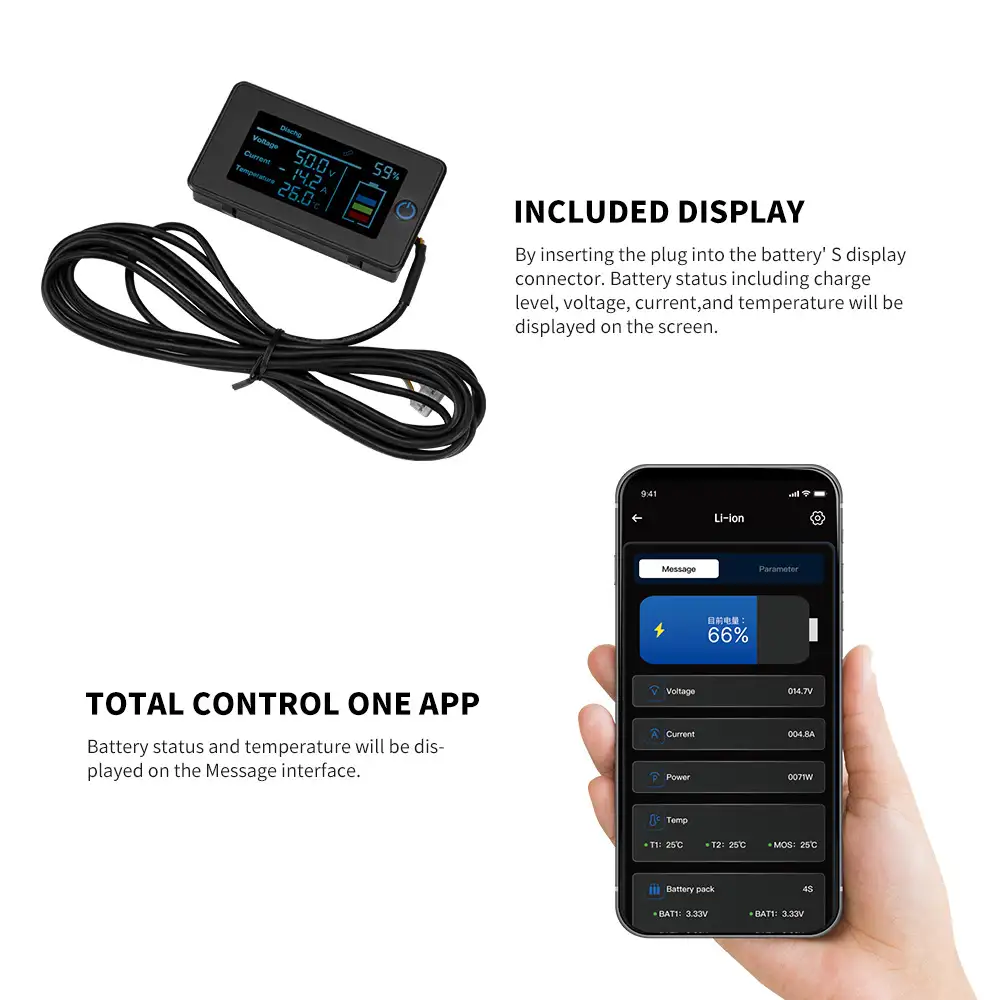

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Capacity 100Ah

Cell Type Prismatic LiFePO4 Cells

Nominal Voltage 12.8V

Energy 1,280Wh

Cycle Life 6,000*

Discharging Cut-off Voltage 10V

Charge Cut-off Voltage 14.4V

Max. Charge Current 50A

Max.Continuous Discharge Current 150A

Max. Pulse Discharge Current 225A

Max. Modules in Series/Parallel 4S/4P or 4S&4P Setups

Discharge Temperature -20℃~60℃

Charge Temperature 0℃C~55℃

Storage Temperature -20℃~60℃

Storage Humidity 0~90%

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
