Batteries | Model: PP50LFP-12V

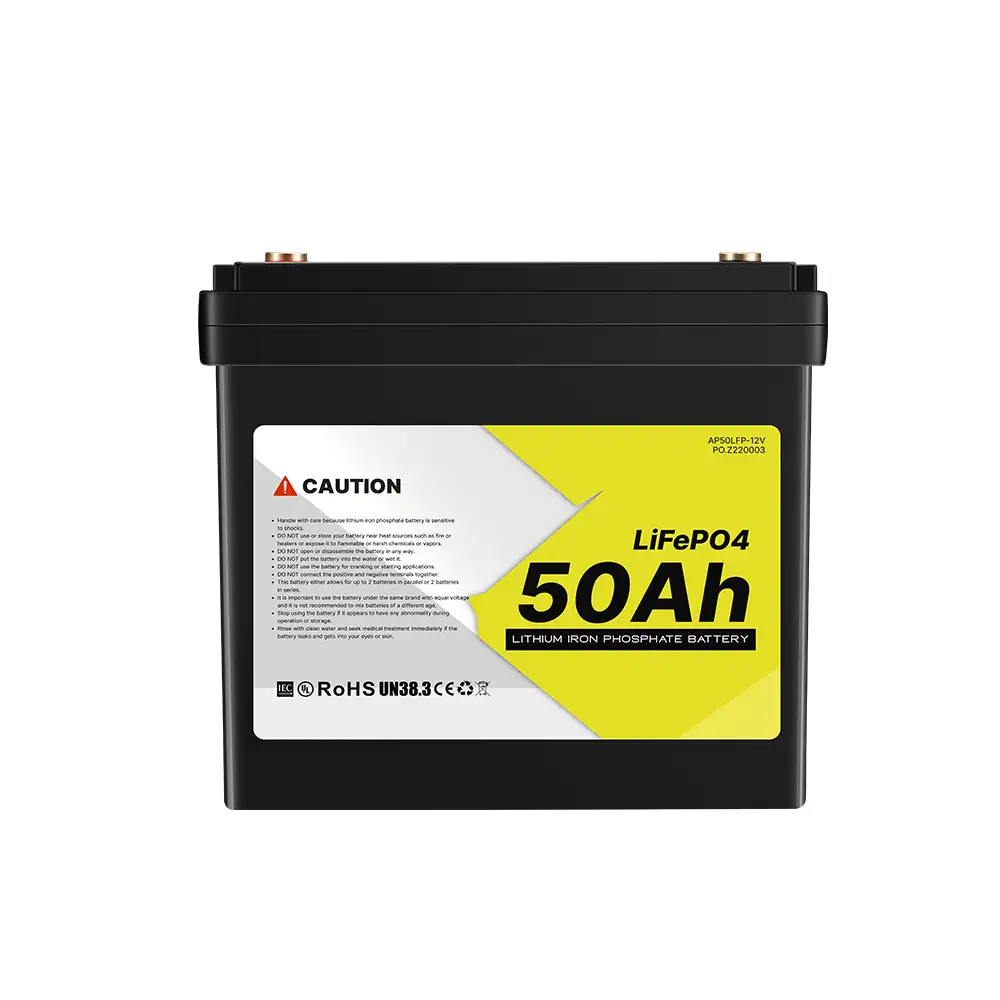

12V 50Ah LiFePO4 Battery with Built-in BMS

Reliable power conversion for off-grid and mobile applications.

Industrial grade robust casing & thermal design

DC Input Voltage

12V / 24V DC

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

The 12V 50Ah LiFePO4 Battery with Built-in BMS is expertly engineered for extended runtime and exceptional reliability in off-grid power systems. Featuring an advanced Lithium Iron Phosphate (LiFePO4) cell architecture, it boasts a staggering 2,000-cycle lifespan, delivering superior long-term value compared to standard lead-acid batteries. The integrated Battery Management System (BMS) continuously monitors and regulates performance, automatically safeguarding against overcharging, deep depletion, short-circuiting, and temperature fluctuations. With a built-in carry handle and highly versatile series/parallel configuration capabilities, it provides scalable, safe, and robust power storage for demanding applications.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Nominal Capacity 50Ah

Nominal Voltage 12.8V

Cycle Life 2,000 Cycles

Charge Voltage 10V~14.6V

Max. Charge Current (25°C) 25A

Max. Continuous Discharge Current (25°C) 50A

Max. Discharge Current (≤7S) 100A

Charge Temperature 0°C~60°C

Discharge Temperature -20~70°C

Storage Temperature -20°C~45°C

Internal Impedance ≤10mΩ

Self-discharge Rate (per month) 2%

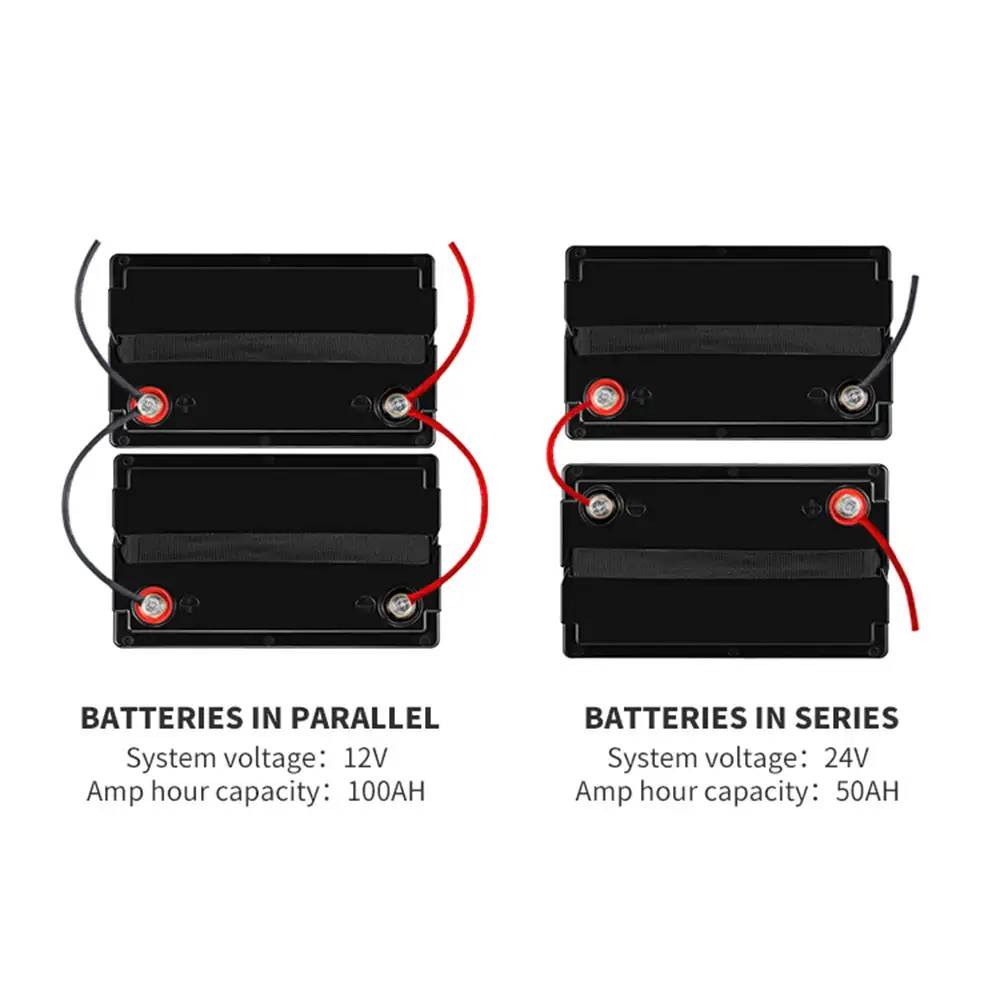

Max. Modules in Series/Parallel 2S/2P

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
