Batteries | Model: PP200LFP-MP

12V 200Ah LiFePO4 Battery with Prismatic Cells

Reliable power conversion for off-grid and mobile applications.

Industrial grade robust casing & thermal design

DC Input Voltage

12V / 24V DC

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

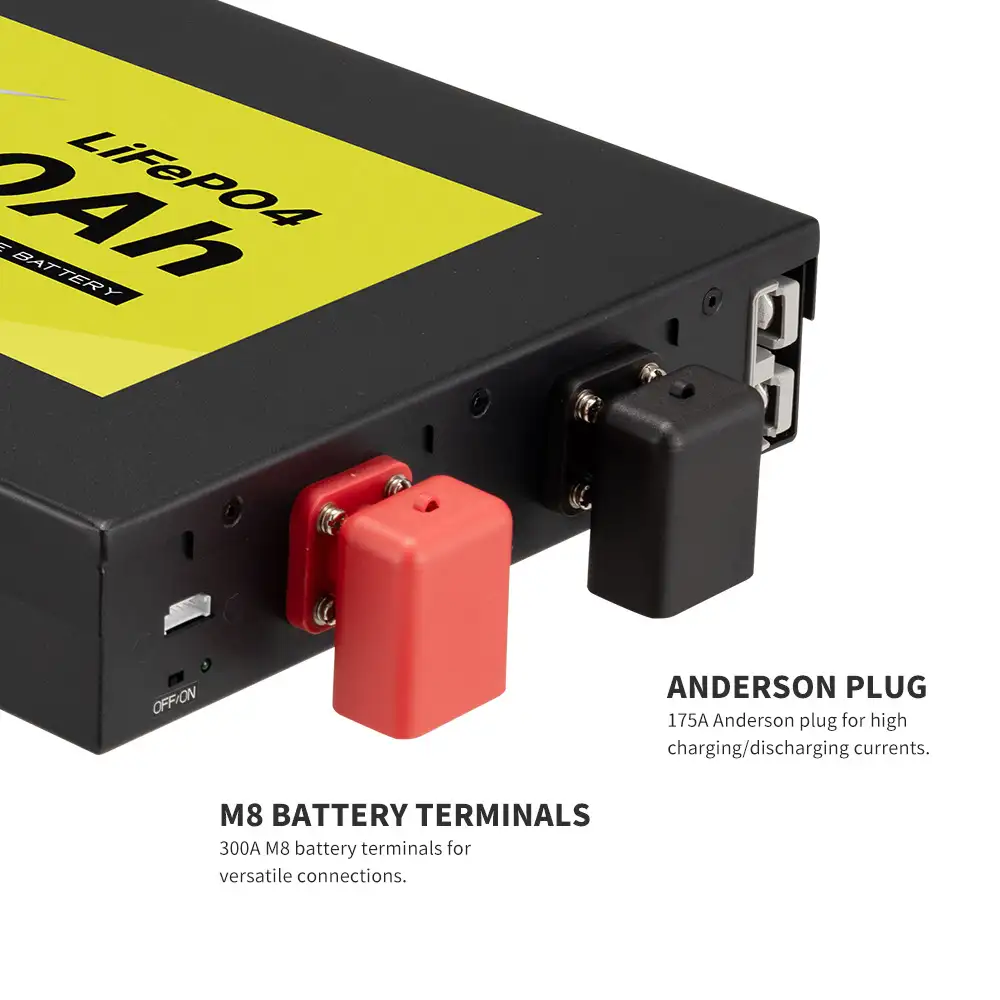

The 12V 200Ah LiFePO4 Battery with Prismatic Cells is a towering achievement in high-capacity energy storage, designed for the most strenuous power requirements. Constructed using top-tier prismatic LiFePO4 cells, it boasts an incredible expected lifespan of 6,000 cycles, providing a robust and ultra-long-lasting foundation for any serious off-grid topology. It features practical B2B and consumer enhancements, including rugged M8 terminals, an integrated Anderson quick-disconnect, an ON/OFF isolation switch, and an interactive LCD display paired seamlessly with a Bluetooth smartphone app. Fully scalable to massive 4S/4P layouts and capable of pushing out deep 200A continuous discharge currents, this unit represents the premier solution for substantial marine banks, large-scale RV builds, and continuous off-grid industrial use.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

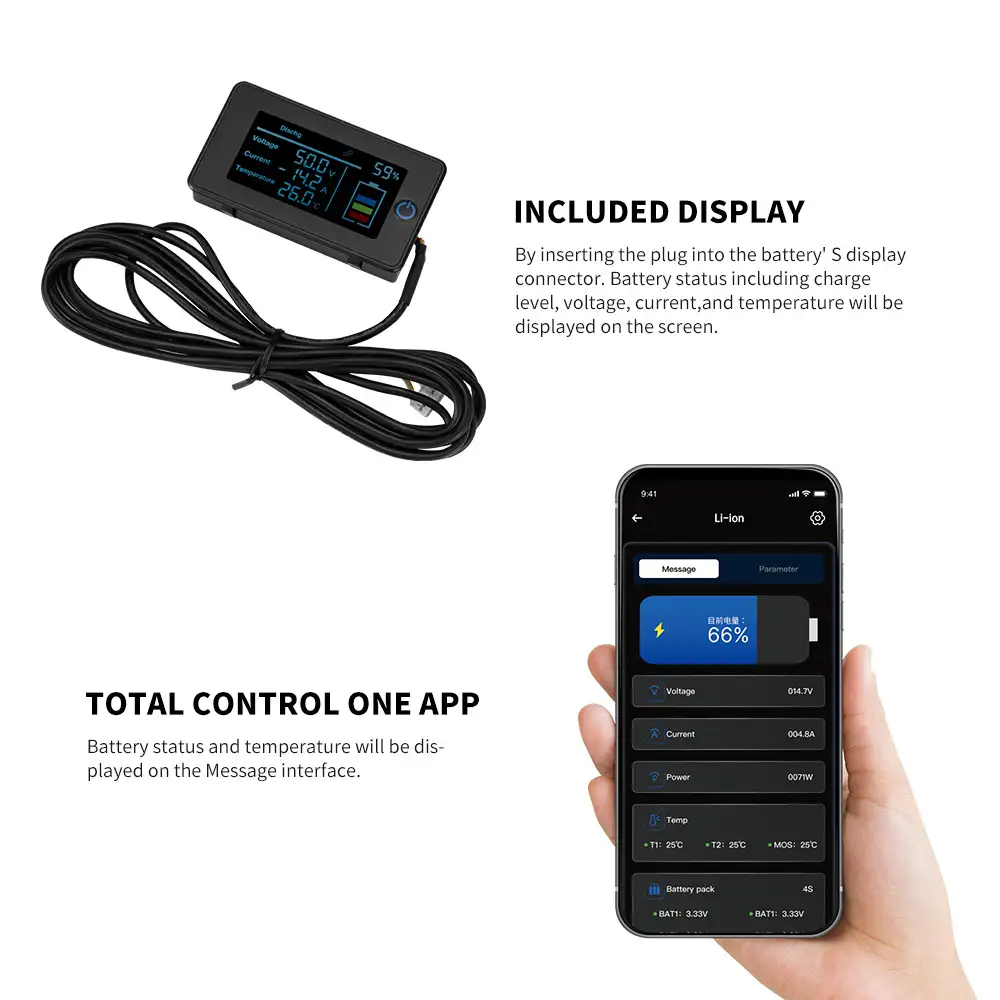

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Capacity 200Ah

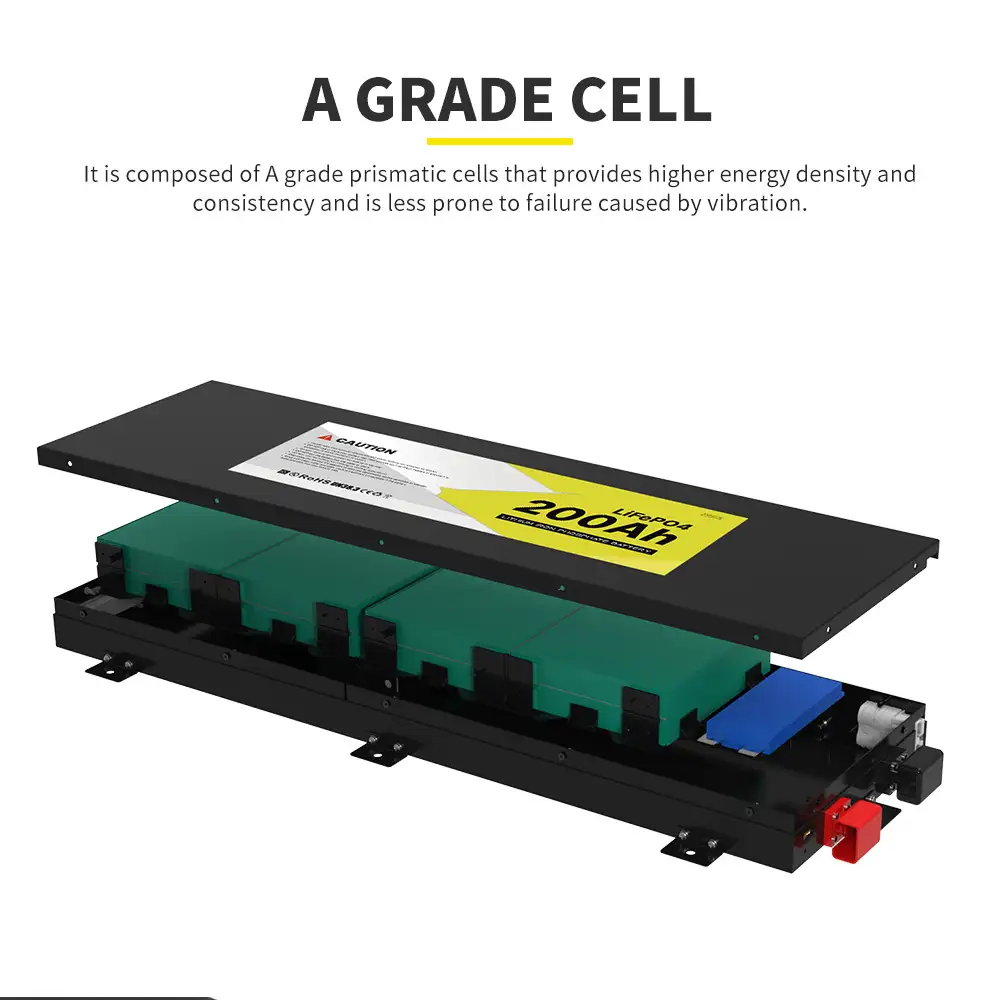

Cell Type Prismatic LiFePO4 Cells

Nominal Voltage 12.8V

Energy 2,560Wh

Cycle Life 6,000*

Discharging Cut-off Voltage 10V

Charge Cut-off Voltage 14.4V

Max. Charge Current 100A

Max.Continuous Discharge Current 200A

Max. Pulse Discharge Current 325A

Max. Modules in Series/Parallel 4S/4P or 4S&4P Setups

Discharge Temperature -20℃~60℃

Charge Temperature 0℃C~55℃

Storage Temperature -20℃~60℃

Storage Humidity 0~90%

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
