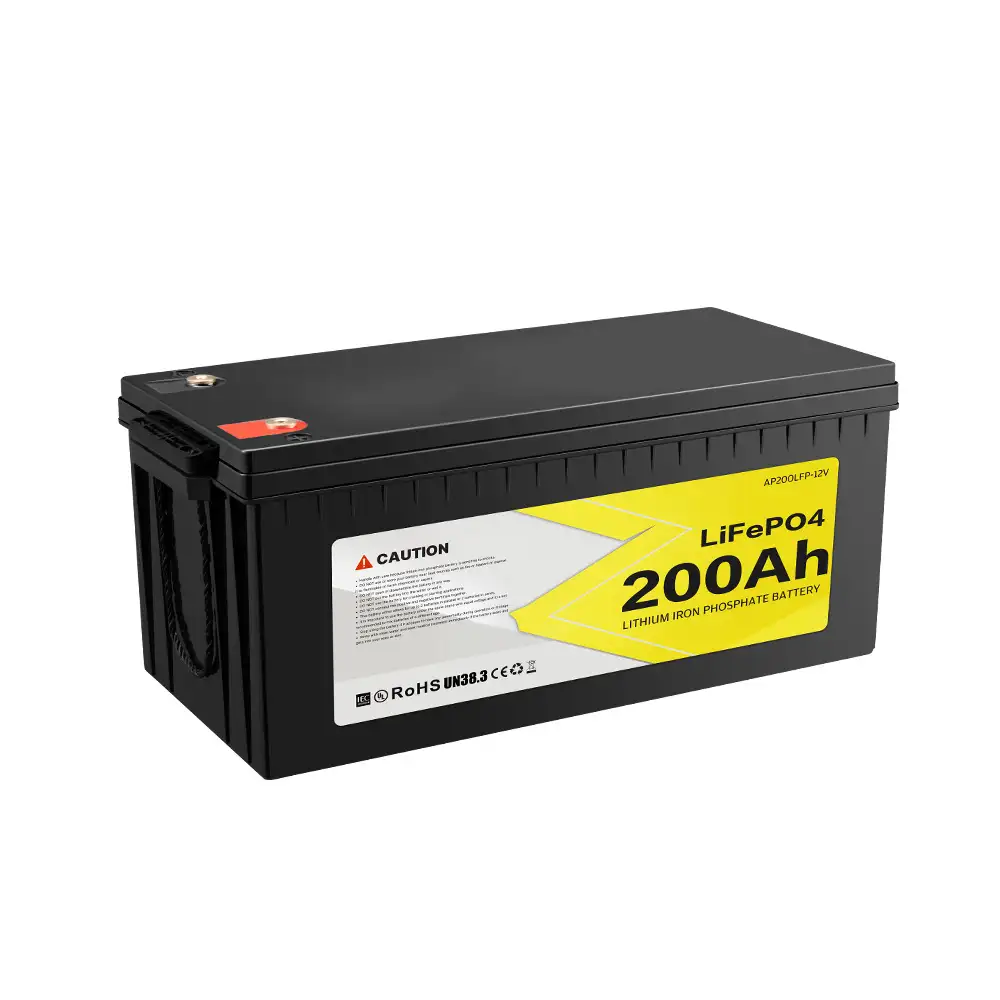

Black 12V 200Ah LiFePO4 Battery with Built-in BMS, displaying a yellow "200Ah" label and prominent red/black terminals.
Batteries | Model: PP200LFP-12V

12V 200Ah LiFePO4 Battery with Built-in BMS

Reliable power conversion for off-grid and mobile applications.

  • Industrial grade robust casing & thermal design

DC Input Voltage
12V / 24V DC
AC Output Voltage
220V - 240V AC
Output Waveform
Pure Sine Wave
Safety & Protection
Overload, Short Circuit, Temp
Applications
RV, Marine, Off-grid, Backup Power
CE Certification RoHS Compliance ISO 9001 Quality Management ISO 14001 Environmental Management UL Listed
Tested for reliability in off-grid applications worldwide
High Quality Components
Strict Quality Control
Global Compliance
Long-term Performance

Product Overview

The 12V 200Ah LiFePO4 Battery with Built-in BMS provides an immense power reserve for heavy-duty energy requirements while effortlessly mitigating the prohibitive weight of equivalent lead-acid systems. Leveraging powerful Lithium Iron Phosphate (LiFePO4) chemistry, it offers a proven 2,000-cycle resilience and massive continuous discharge currents up to 200A — capable of sustaining the highest operational loads in sophisticated off-grid setups. Embedded with a state-of-the-art Battery Management System (BMS), it automatically isolates the unit against overcharge, short circuits, and thermal extremes ranging from -20°C up to 60°C. Fully modular and built to scale through extensive 2S/2P topologies, it sets a formidable standard for high-capacity marine, large RV, and substantial solar storage applications.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Nominal Capacity 200Ah
Nominal Voltage 12.8V
Cycle Life 2,000 Cycles
Charge Voltage 10V~14.6V
Max. Charge Current (25°C) 100A
Max. Continuous Discharge Current (25°C) 200A
Max. Discharge Current (≤7S) 400A
Charge Temperature 0°C~60°C
Discharge Temperature -20~70°C
Storage Temperature -20°C~45°C
Internal Impedance ≤10mΩ
Self-discharge Rate (per month) 2%

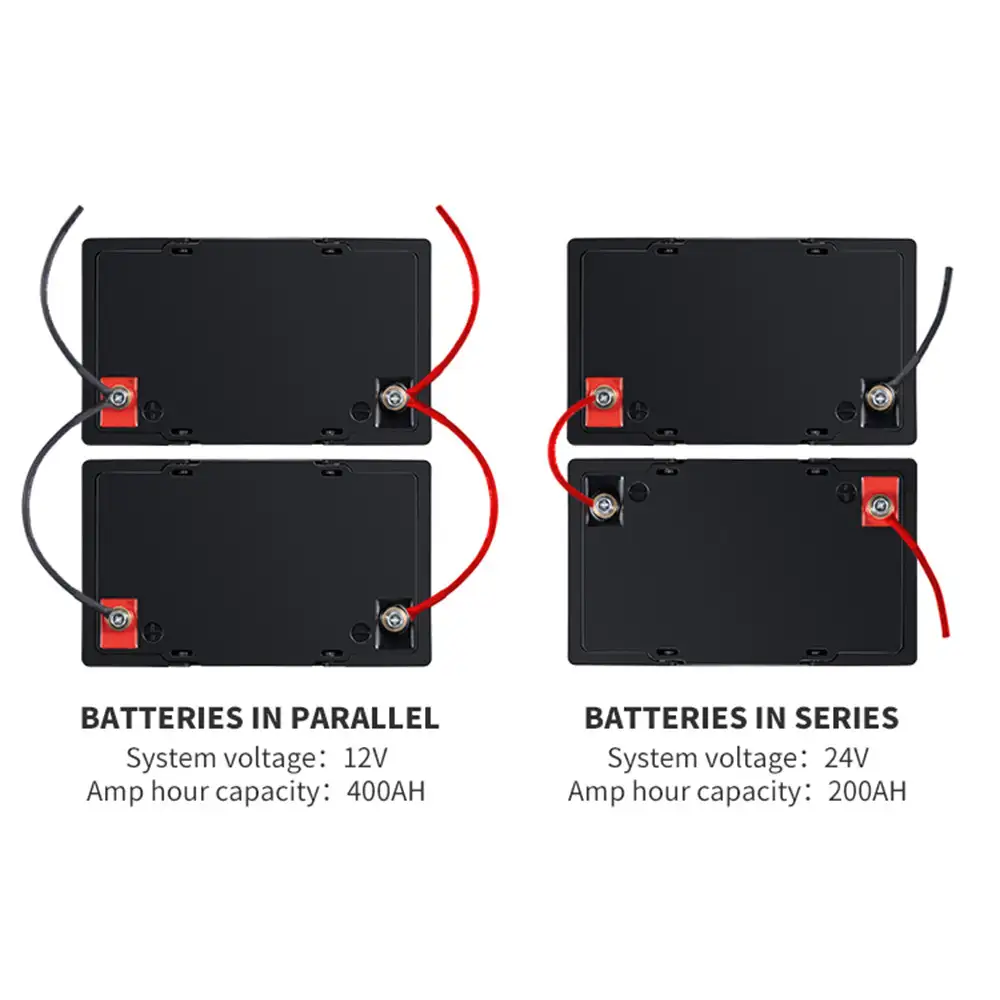

Max. Modules in Series/Parallel 2S/2P

Applicable Installation Scenarios

RV Systems
RV Systems
Marine
Marine
Trucks & Vans
Trucks & Vans
Off-grid Cabins
Off-grid Cabins
Backup Power
Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.

  • Pluggable Deployment
  • Smart Battery Matching
  • Max-Peak Efficiency
System Integration Flowchart
