Batteries | Model: PP150LFP-12V

12V 150Ah LiFePO4 Battery with Built-in BMS

Reliable power conversion for off-grid and mobile applications.

Industrial grade robust casing & thermal design

DC Input Voltage

12V / 24V DC

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

The 12V 150Ah LiFePO4 Battery with Built-in BMS offers an exceptional balance of high storage capacity and compact portability for your most demanding off-grid energy needs. Featuring premium Lithium Iron Phosphate (LiFePO4) chemistry, it guarantees thousands of stable charging cycles, vast improvements in weight reduction, and superior safety compared to traditional lead-acid equivalents. The advanced integrated Battery Management System (BMS) continuously protects your investment by automatically guarding against overcharge, over-discharge, and temperature extremes. Designed with robust rope handles and seamless series/parallel compatibility, this 150Ah powerhouse sits at the sweet spot for intensive maritime, overland, and off-grid solar storage deployments.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Nominal Capacity 150Ah

Nominal Voltage 12.8V

Cycle Life 2,000 Cycles

Charge Voltage 10V~14.6V

Max. Charge Current (25°C) 50A

Max. Continuous Discharge Current (25°C) 100A

Max. Discharge Current (≤7S) 200A

Charge Temperature 0°C~60°C

Discharge Temperature -20~70°C

Storage Temperature -20°C~45°C

Internal Impedance ≤10mΩ

Self-discharge Rate (per month) 2%

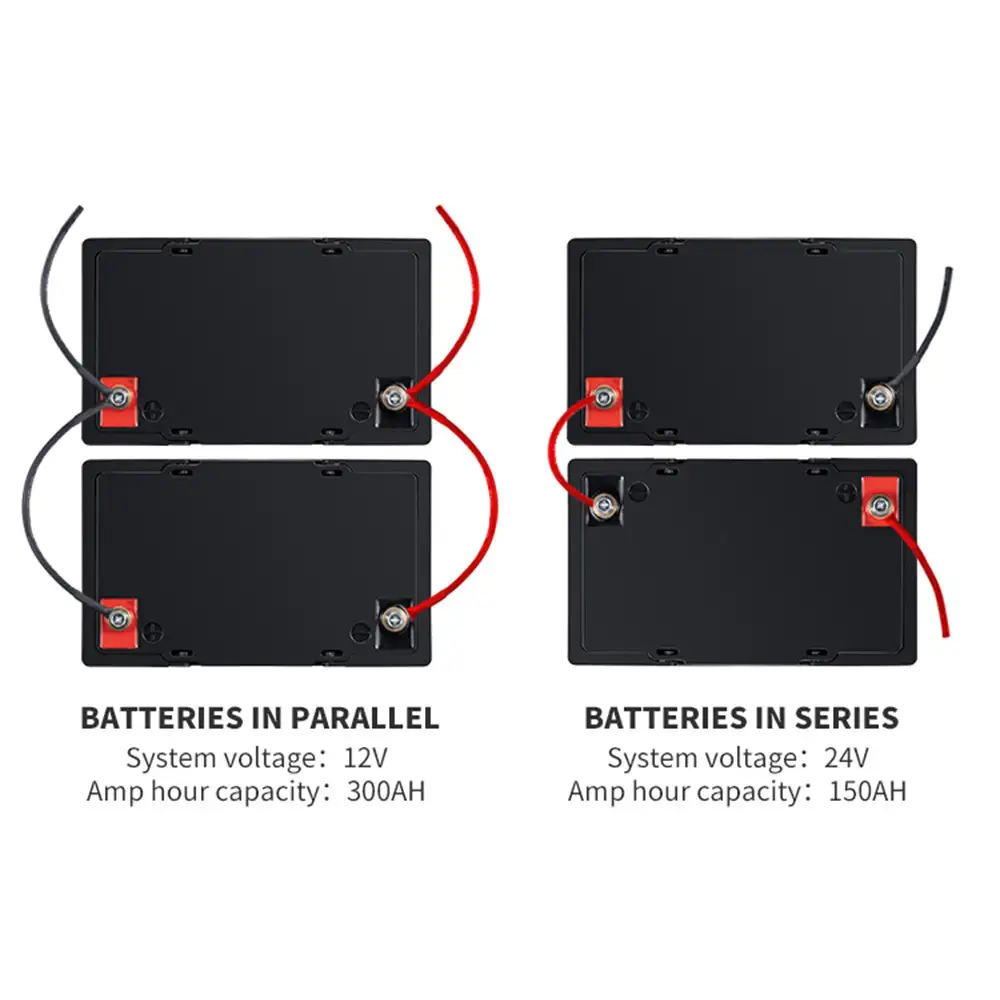

Max. Modules in Series/Parallel 2S/2P

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
