Charge Controllers | Model: PPHUB

12V DC-DC Distribution Hub Multi-Chemistry Compatible

Reliable power conversion for off-grid and mobile applications.

Centralized Power Hub
Multi-Chemistry Smart Charging
Plug-and-Play Connectivity
Integrated Monitoring

DC Input Voltage

12V / 24V DC

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

The 12V DC-DC Distribution Hub Multi-Chemistry Compatible (PPHUB) is the central nervous system for your off-grid 12V power system. Designed to replace messy, complicated wiring looms, this “Smart Hub” provides a centralized, protected point for managing your DC sources and loads with professional organization.

Intelligent Centralized Management

At the heart of any reliable power system is organization. The PPHUB brings all your charging sources and power outputs into a single, robust steel housing. By acting as a smart intermediary, it ensures that power is distributed efficiently across your auxiliary system, reducing the risk of voltage drops and simplifying the troubleshooting process.

Universal Battery Compatibility

Engineering the future of off-grid power means supporting the latest battery technologies. The PPHUB features built-in logic for a wide array of battery chemistries, including traditional Wet and Lead Acid, AGM, Gel, and the high-performance Lithium Iron Phosphate (LiFePo4). This ensures that no matter your choice of storage, the hub provides the optimized performance required.

Professional Connectivity

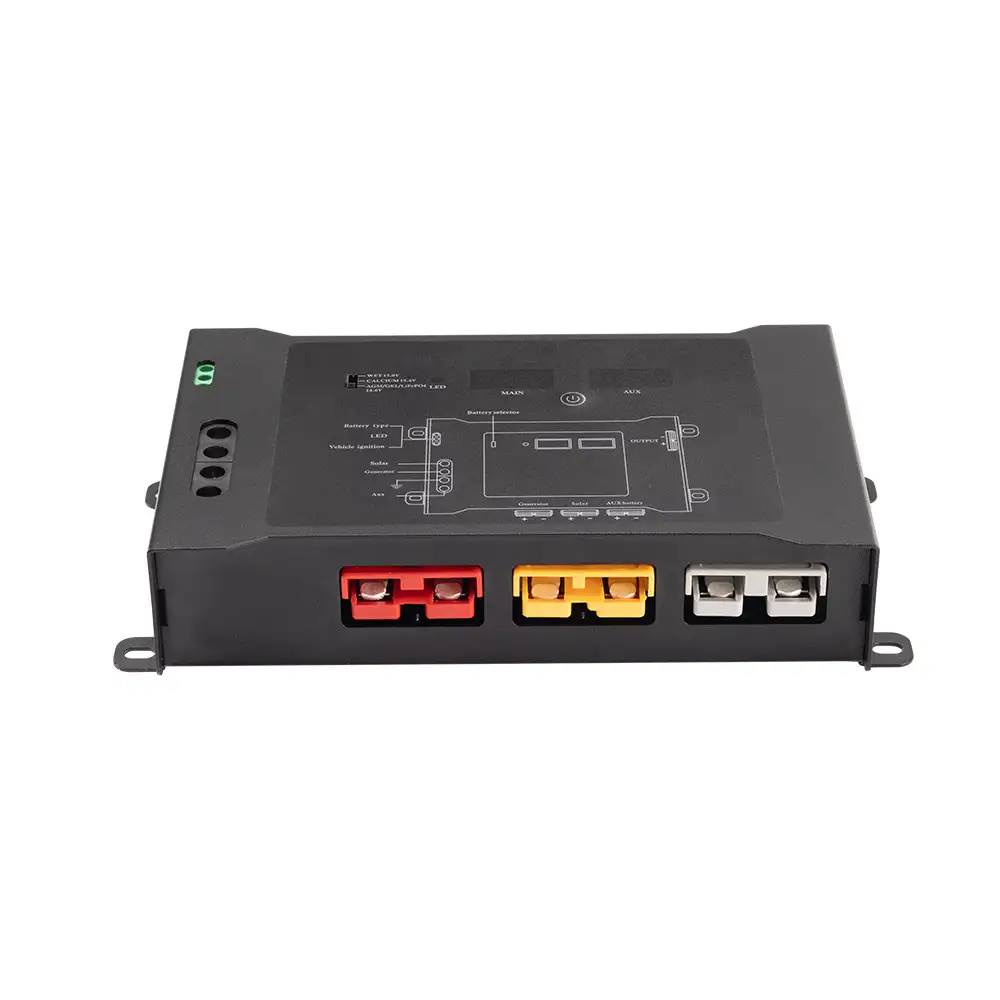

Gone are the days of crimp terminals and loose wires. The PPHUB features professional-grade, color-coded Anderson-style port clusters. These high-current connectors provide a secure, low-resistance path for power while allowing for rapid “plug-and-play” installation and modular system expansion. The industrial red, yellow, and white ports are clearly mapped for intuitive setup.

Enhanced User Oversight

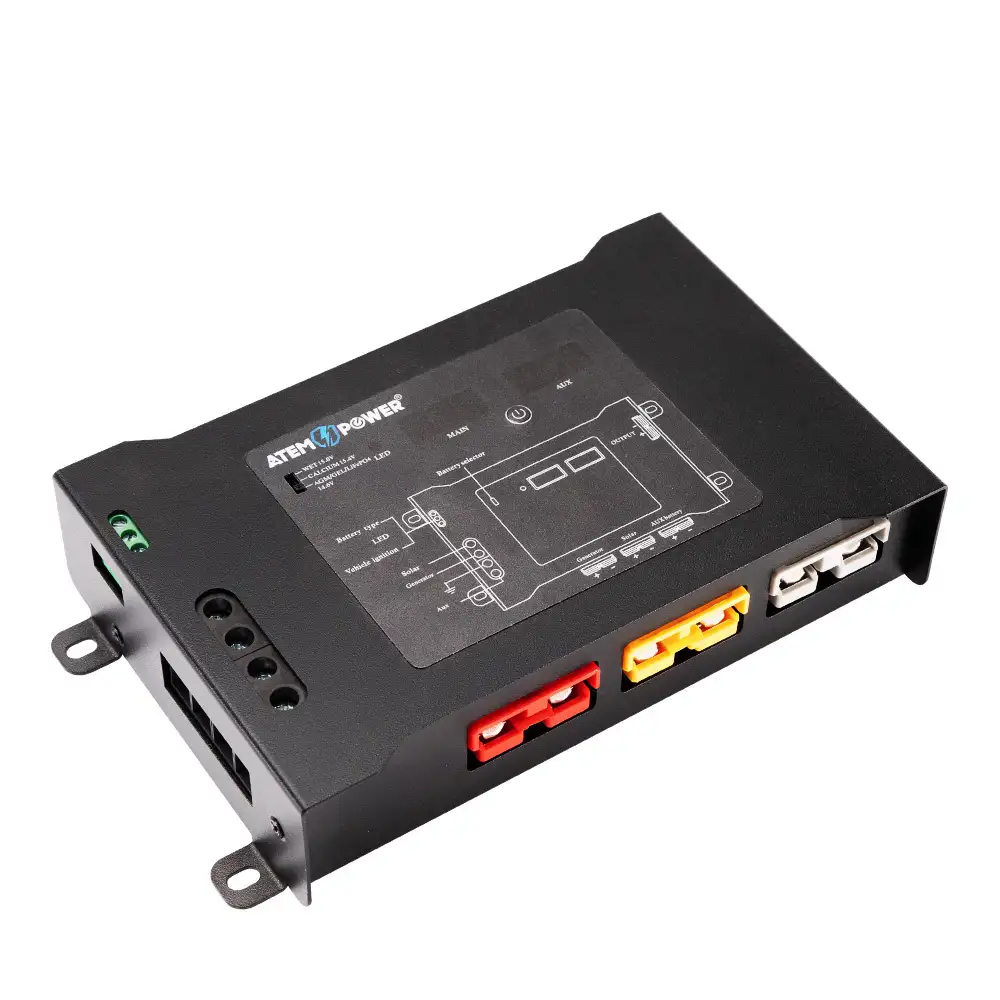

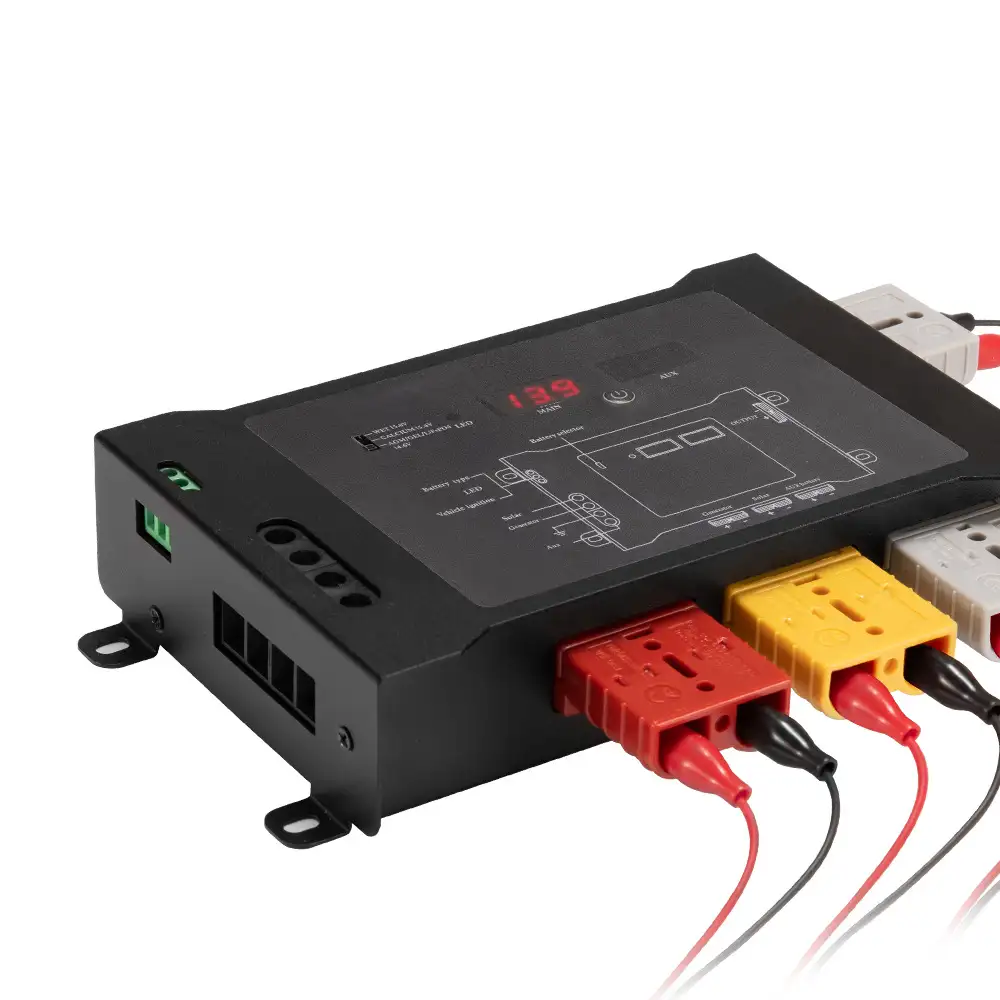

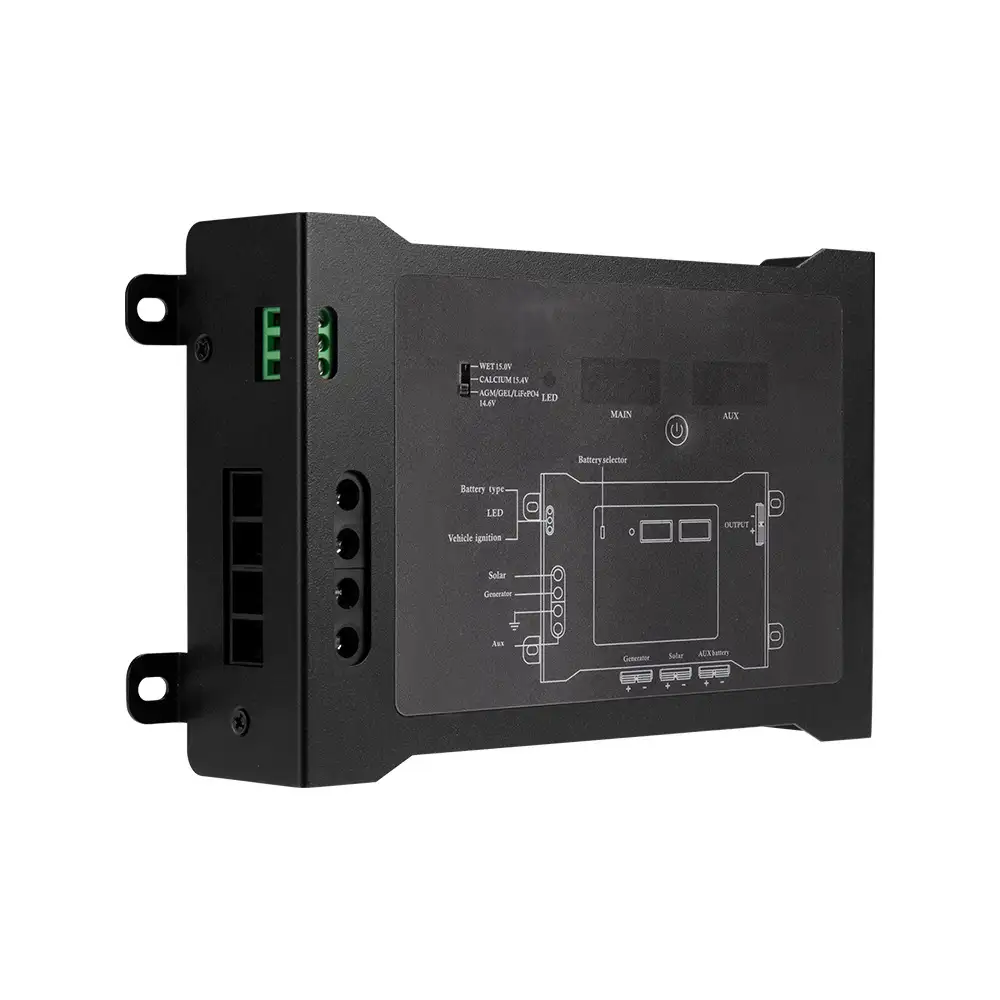

For real-time visibility, the hub includes a bright red LED display that keeps you informed of your system’s current status. To ensure a safe and accurate installation every time, the top of the steel housing features a permanent, high-contrast wiring diagram that details terminal assignments and battery type selections.

Durable, smart, and incredibly organized, the PPHUB is the essential foundation for any modern RV, 4WD, or remote canopy power system.

Key Technical Features

Centralized Power Hub

A smart, all-in-one DC distribution point that organizes and manages m

Multi-Chemistry Smart Charging

Fully compatible with Wet, Calcium, AGM, Gel, and LiFePo4 batteries, f

Plug-and-Play Connectivity

Features high-current, color-coded Anderson-style ports for rapid, sec

Integrated Monitoring

Equipped with a vivid red LED display and a permanent etched wiring di

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Product Type DC to DC Smart Hub

Dimensions 20.6 x 11.9 x 4 cm (8.11"L x 4.69"W x 1.57"H)

Weight 0.9 kg (1.98 lbs)

Housing Material Heavy-Duty Steel

Color Industrial Black

Compatible Batteries Wet, Calcium, AGM, Gel, LiFePo4

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
