Charge Controllers | Model: PP10MT

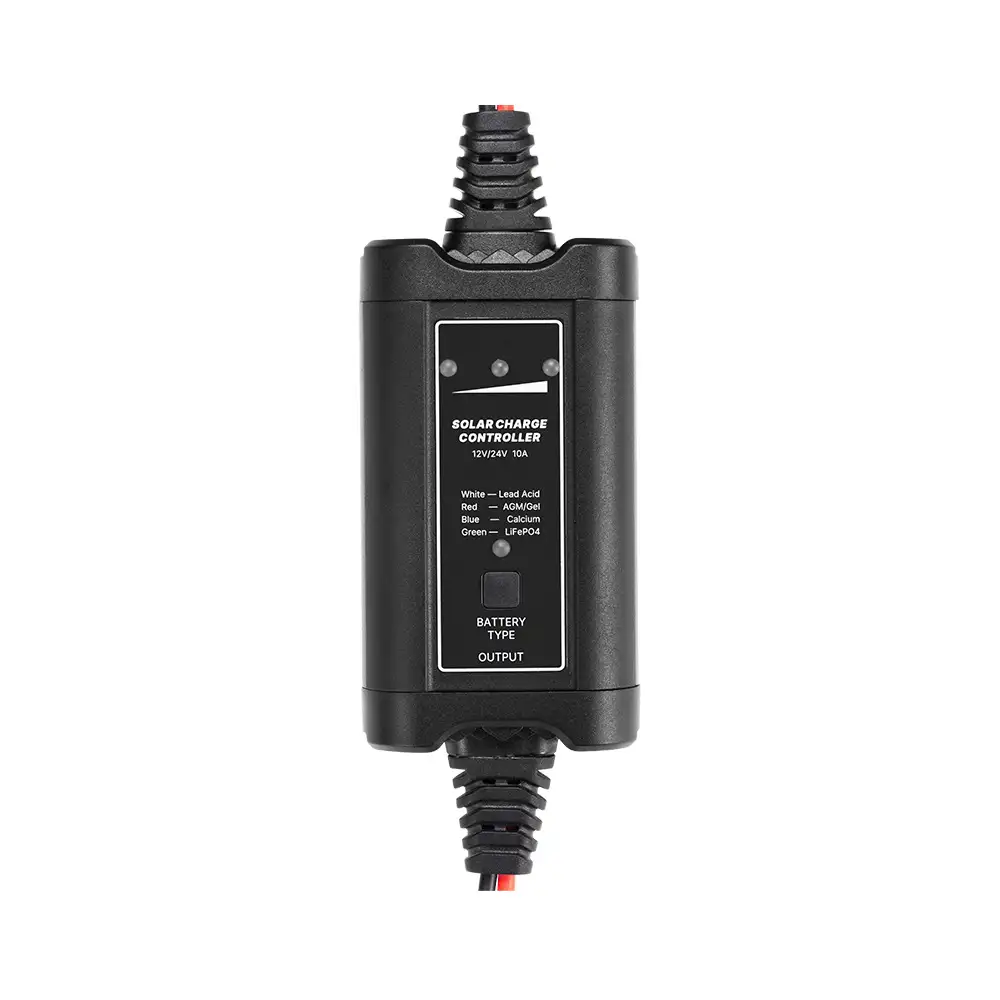

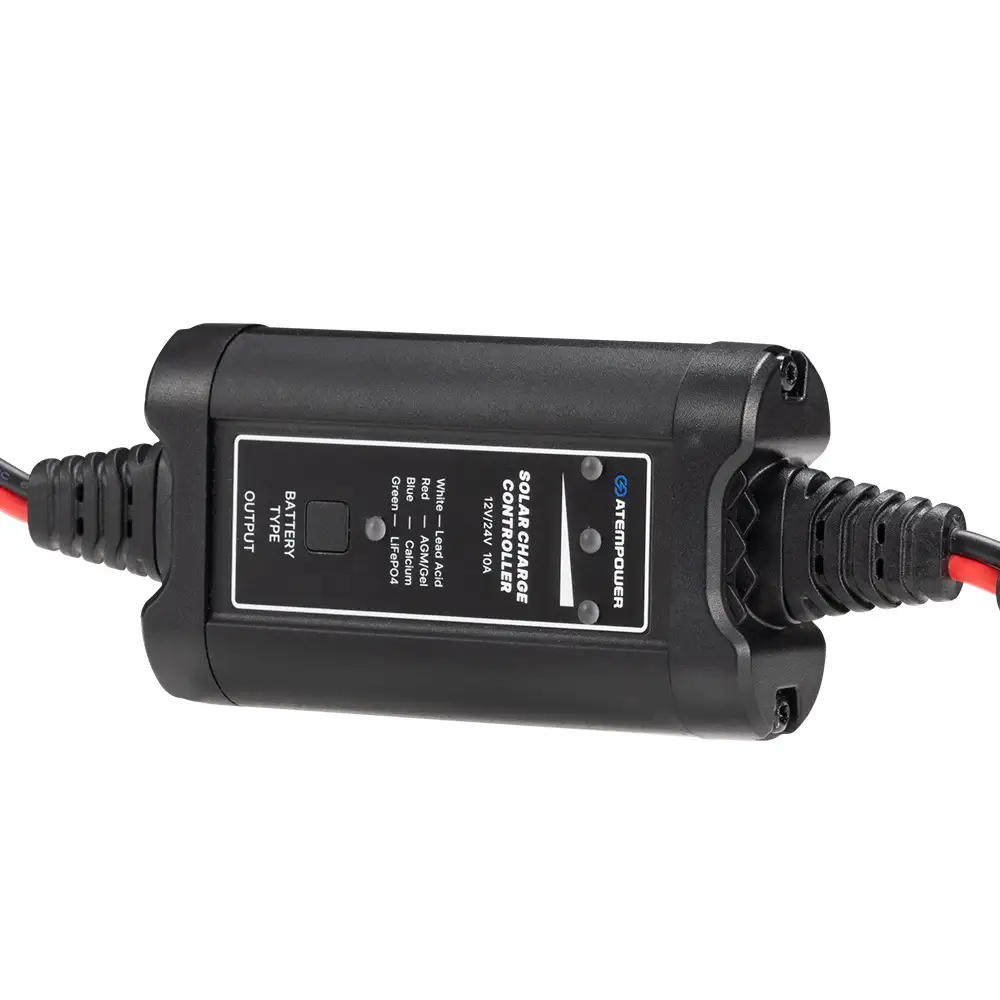

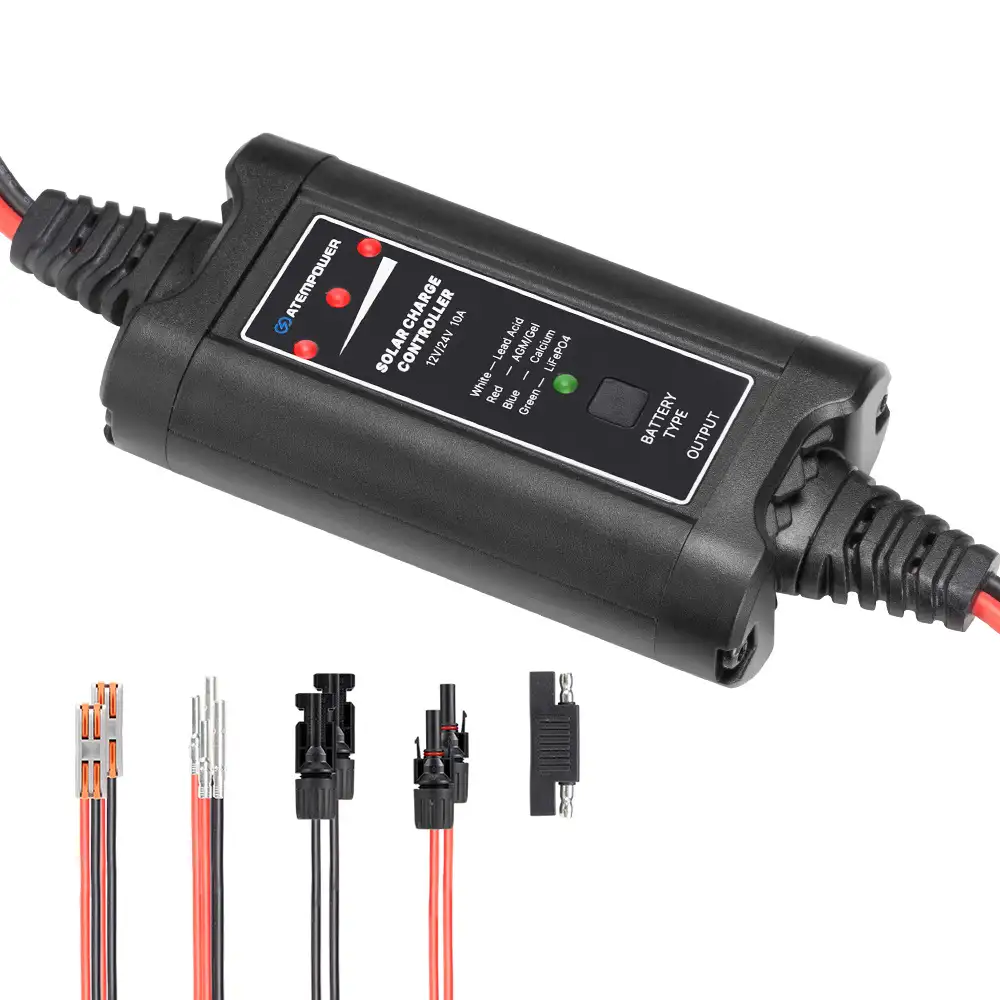

10A 12V/24V MPPT Solar Charge Controller

Reliable power conversion for off-grid and mobile applications.

Industrial grade robust casing & thermal design

DC Input Voltage

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

The 10A 12V/24V MPPT Solar Charge Controller is designed to optimize solar energy conversion with an exceptional tracking efficiency of 99.99% and a maximum conversion efficiency of 95%. Engineered for reliability in off-grid and industrial applications, this highly efficient MPPT controller automatically detects 12V or 24V battery systems and supports a maximum solar input up to 46V. Its ultra-compact design incorporates clear LED indicators and simple push-button battery type selection, ensuring straightforward integration. With robust environmental tolerances and a low self-consumption rate, this heavy-duty controller provides stable, high-performance battery charging for solar arrays up to 250W, making it the ideal choice for marine, RV, and professional renewable energy installations.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Product Dimension 98*55*25mm

Battery Voltage Range 12V/24V

Max. PV Open Circuit Voltage 46V

Max. Solar Input Voltage 46V

Rated Charge Current 10A

Rated Discharge Current 10A

Max. Power 250W

Self Consumption 7.05ma

No Load Current ＜10ma

Tracking Efficiency 99.99%

Conversion Efficiency 95%

Operation Temperature -10℃~45℃

Storage Temperature -20℃~65℃

Relative Humidity 40%~95% (no condensation)

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
