Solar Panels | Model: PP-FLES-SG55

55W Shingled Flexible Solar Panel with ETFE Coating

Reliable power conversion for off-grid and mobile applications.

Industrial grade robust casing & thermal design

DC Input Voltage

12V / 24V DC

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

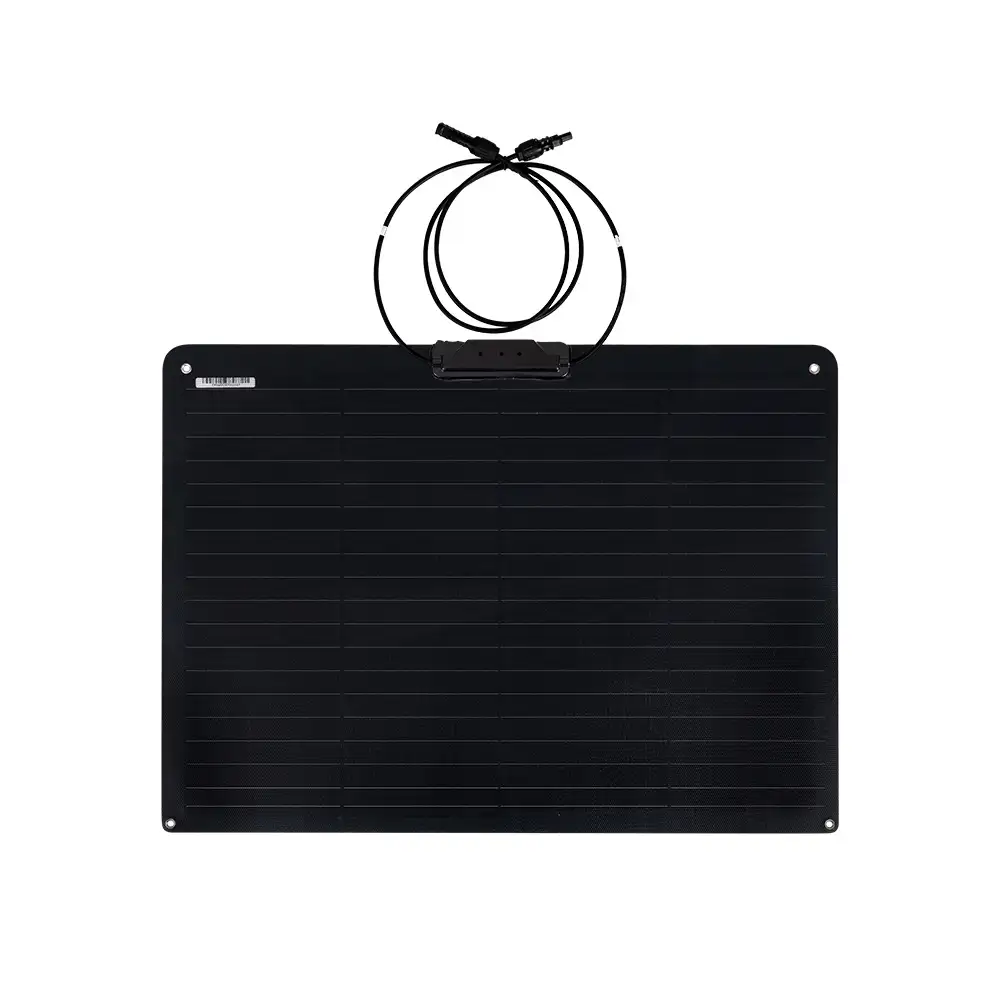

The 55W Shingled Flexible Solar Panel with ETFE Coating is an ultra-lightweight and versatile solar solution designed for curved surfaces and mobile applications. Featuring advanced shingled cell technology, this panel maximizes power density by overlapping cells, which reduces internal resistance and provides superior performance in low-light or partially shaded conditions.

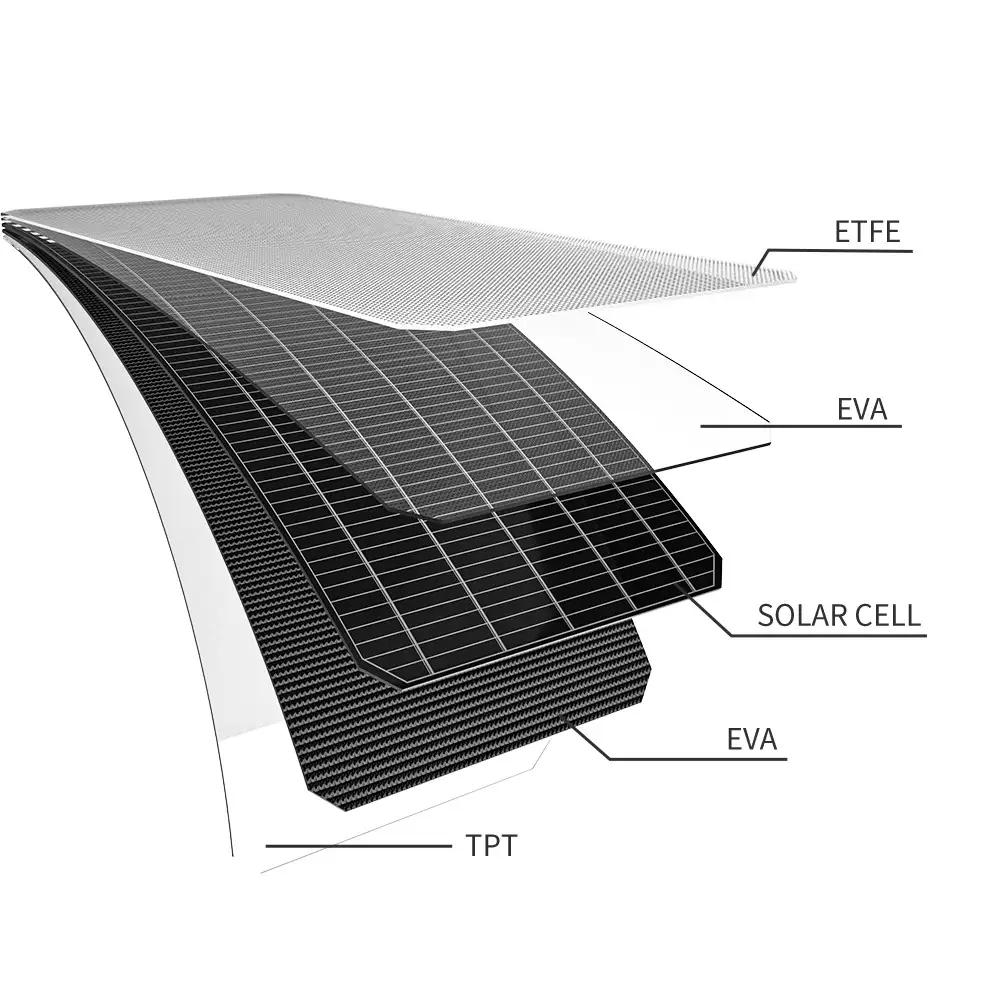

The premium ETFE coating offers exceptional durability with high light transmittance, UV resistance, and self-cleaning properties, making it far superior to traditional PET-laminated flexible panels. At just 2.5mm thick and weighing only 1.2kg, it can be easily mounted on RV roofs, boat decks, or any aerodynamic surface using the integrated stainless steel grommets or adhesive. With an IP68 waterproof rating, this panel is engineered to withstand salt spray and harsh marine environments while providing reliable 55W power for 12V battery maintenance and light off-grid loads.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Dimensions 680 x 520 x 2.5 mm

Weight 1.2kg

Cell Type A-Grade Monocrystalline (Shingled)

Cell Coating ETFE

Color Black

IP Rating IP68

Maximum Power 55W

Open-Circuit Voltage (Voc) 21.3V

Short-Circuit Current (Isc) 3.42A

Max. Power Voltage (Vmp) 17.2V

Max. Power Current (Imp) 3.2A

Max. System Voltage 60VDC

Temperature Range -30°C ~ +70°C

Power Tolerance ± 5%

Warranty 2 Years

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
