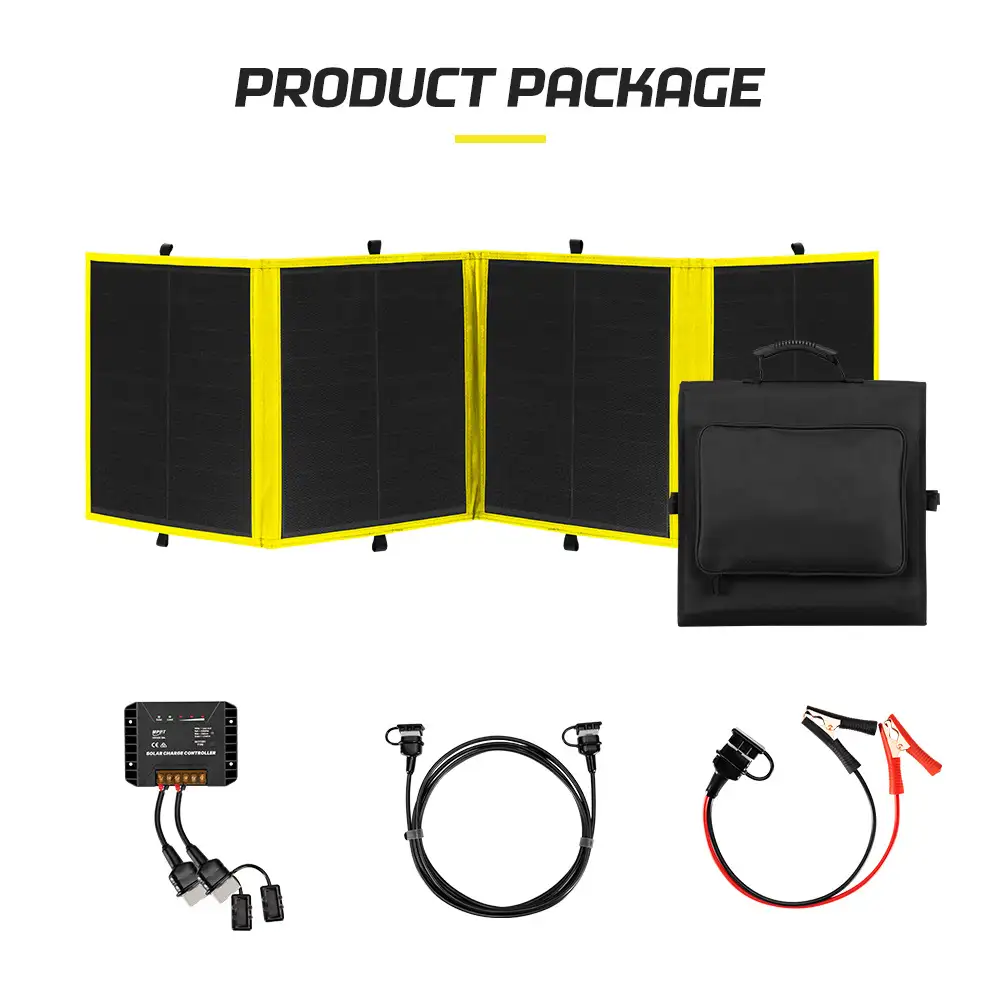

The 120W HPBC Folding Solar Panel ETFE Coating kit includes unfolded black and yellow panels, a 'Solar Charge Controller', and its compact folded case.
Solar Panels | Model: PP-BLKT-BC1-PF

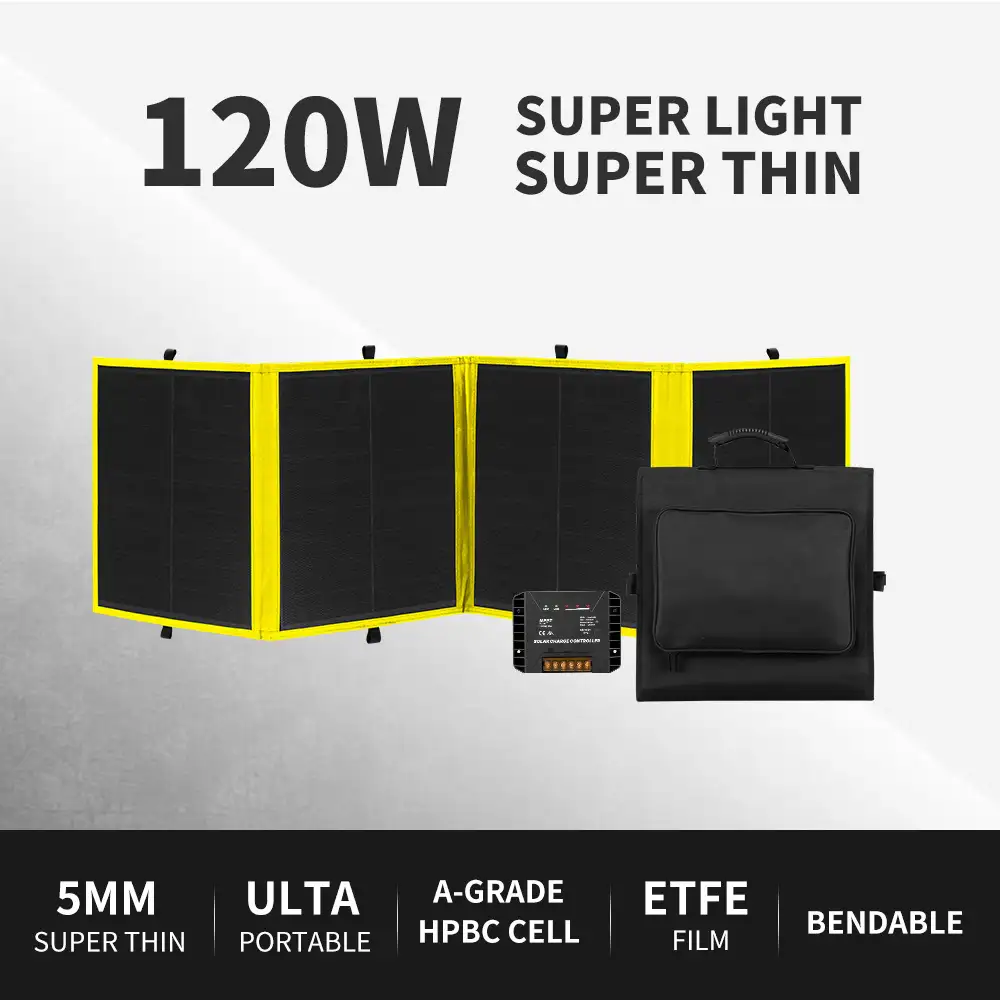

120W HPBC Folding Solar Panel ETFE Coating

Reliable power conversion for off-grid and mobile applications.

  • Industrial grade robust casing & thermal design

DC Input Voltage
12V / 24V DC
AC Output Voltage
220V - 240V AC
Output Waveform
Pure Sine Wave
Safety & Protection
Overload, Short Circuit, Temp
Applications
RV, Marine, Off-grid, Backup Power
CE Certification RoHS Compliance ISO 9001 Quality Management ISO 14001 Environmental Management UL Listed
Tested for reliability in off-grid applications worldwide
High Quality Components
Strict Quality Control
Global Compliance
Long-term Performance

Product Overview

The 120W HPBC Folding Solar Panel ETFE Coating is a cutting-edge portable energy solution designed for high-efficiency power generation in demanding off-grid environments. Featuring advanced HPBC (Hybrid Passivated Back Contact) cell technology, this panel achieves a superior 24% conversion efficiency, significantly outperforming standard monocrystalline panels. The durable ETFE coating provides exceptional weather resistance, high light transmittance, and self-cleaning properties, while the heavy-duty nylon backing ensures long-term reliability in the field.

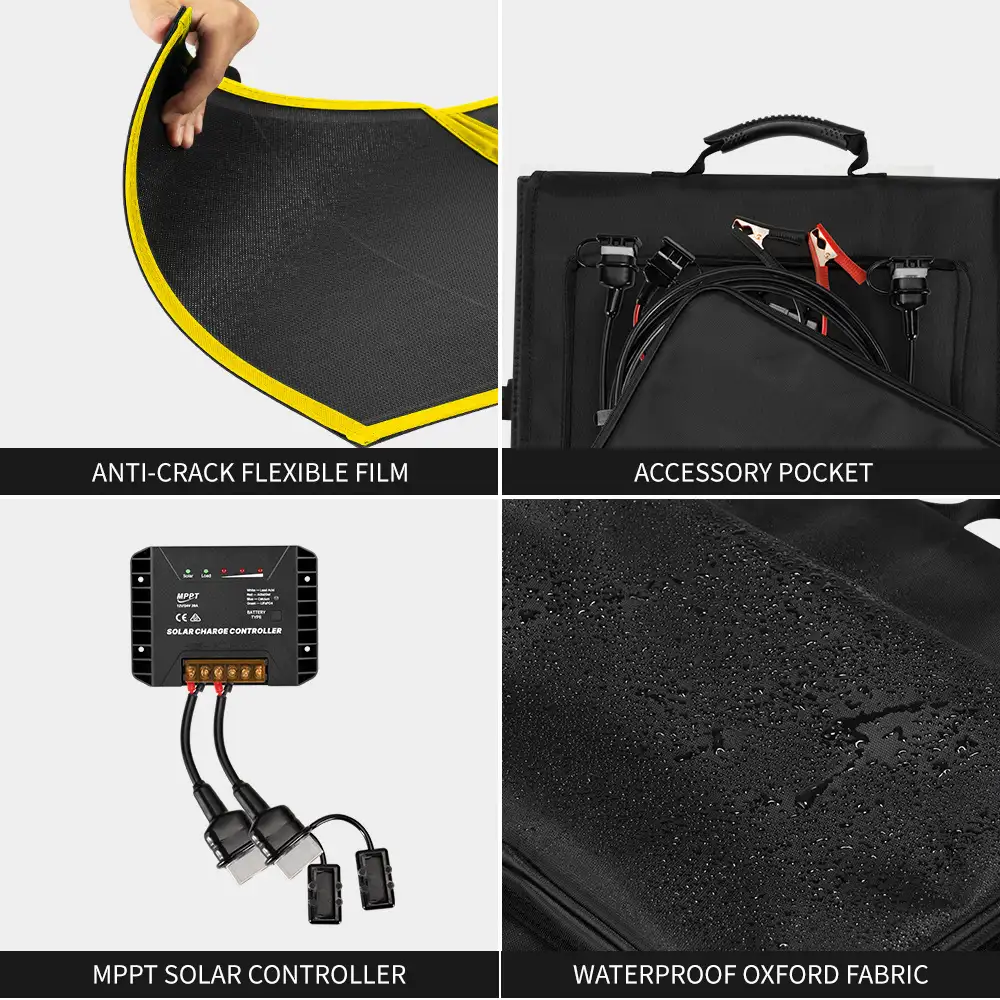

Engineered for professional mobility, the panel weighs only 3.8kg and features a sophisticated multi-fold design that collapses into a compact carrying case measuring just 420x430x53mm. When deployed, it expands to nearly 3 meters in length, providing a large surface area for maximum solar harvest. This kit includes a high-quality solar charge controller, making it a complete plug-and-play solution for maintaining battery banks in expedition vehicles, remote communication sites, and professional mobile workstations.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Weight 3.8kg
Dimensions (Open) 2,931 x 428 x 5 mm
Dimensions (Closed) 420 x 430 x 53mm

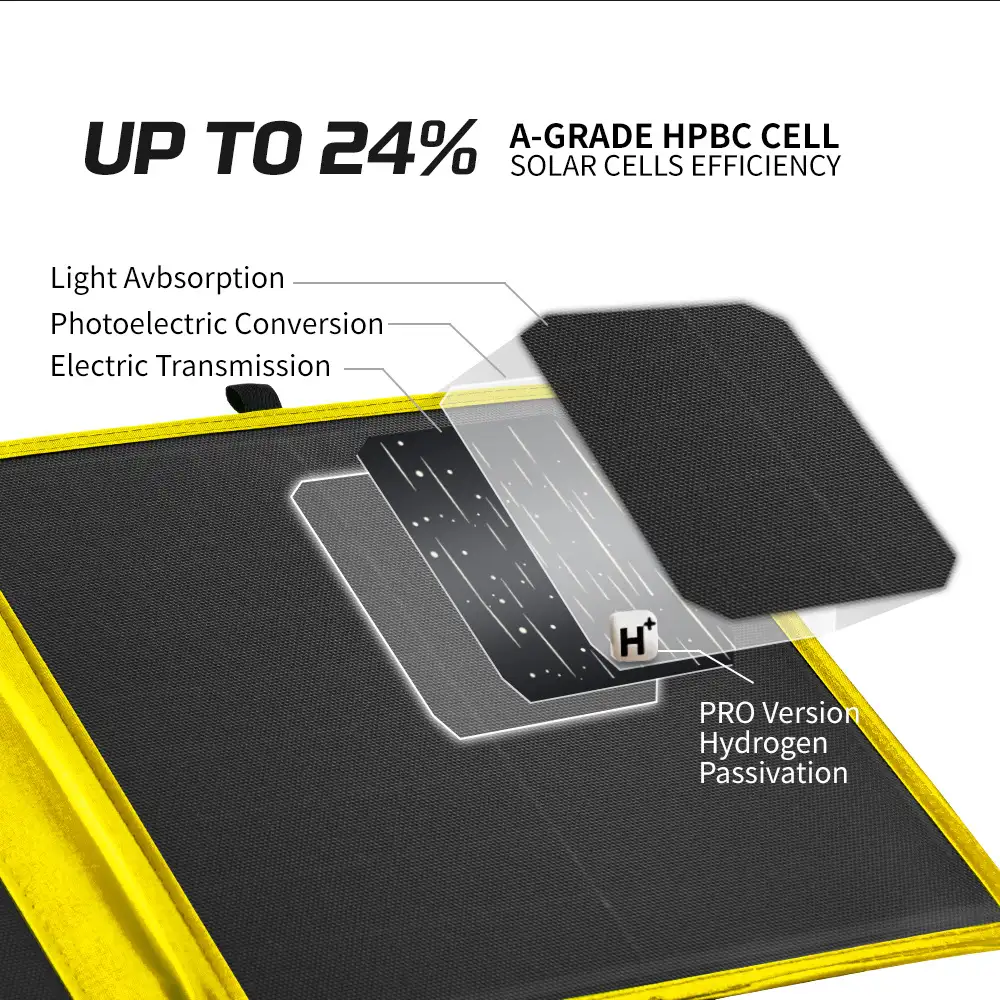

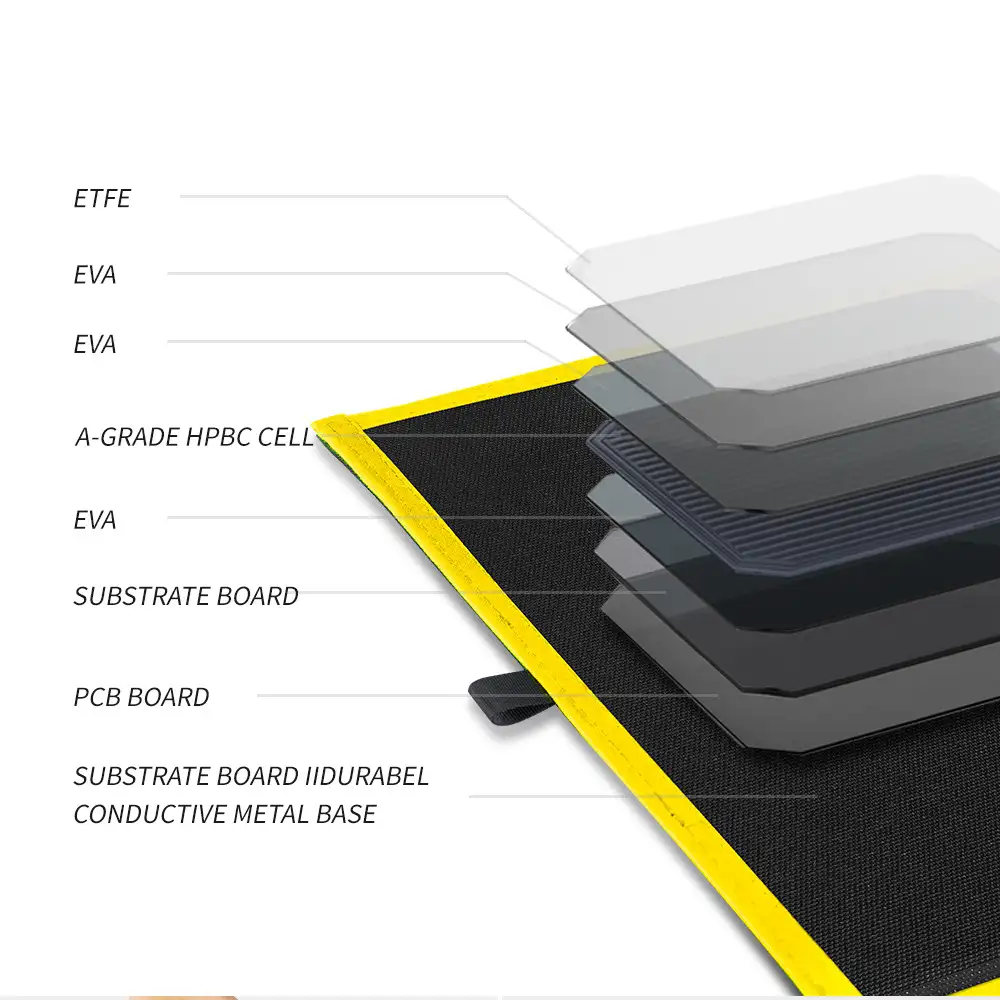

Cell Type HPBC (Hybrid Passivated Back Contact)
Cell Coating ETFE
Backing Material Nylon
Conversion Efficiency 24%
Maximum Power (Pmax) 120W
Open Circuit Voltage (VOC) 23.5V
Short Circuit Current (ISC) 6.9A
Max. Power Voltage (VMP) 18.5V
Max. Power Current (IMP) 6.5A
Power Tolerance ±5%
Max. System Voltage 36VDC
Operating Temperature -40℃~85℃

Applicable Installation Scenarios

RV Systems
RV Systems
Marine
Marine
Trucks & Vans
Trucks & Vans
Off-grid Cabins
Off-grid Cabins
Backup Power
Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.

  • Pluggable Deployment
  • Smart Battery Matching
  • Max-Peak Efficiency
System Integration Flowchart
