Solar Panels | Model: PP-FOLD-200W

200W Monocrystalline Foldable Solar Panel with Kickstand

Reliable power conversion for off-grid and mobile applications.

Industrial grade robust casing & thermal design

DC Input Voltage

12V / 24V DC

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

The 200W Monocrystalline Foldable Solar Panel with Kickstand is a high-capacity, heavy-duty portable solar solution designed for serious off-grid power needs. Utilizing advanced shingled cell technology within a foldable format, this panel offers exceptional durability and high energy density. With a powerful 200W output and a peak current of 10.1A, it provides rapid charging for large battery banks in RVs, overland vehicles, and remote camps.

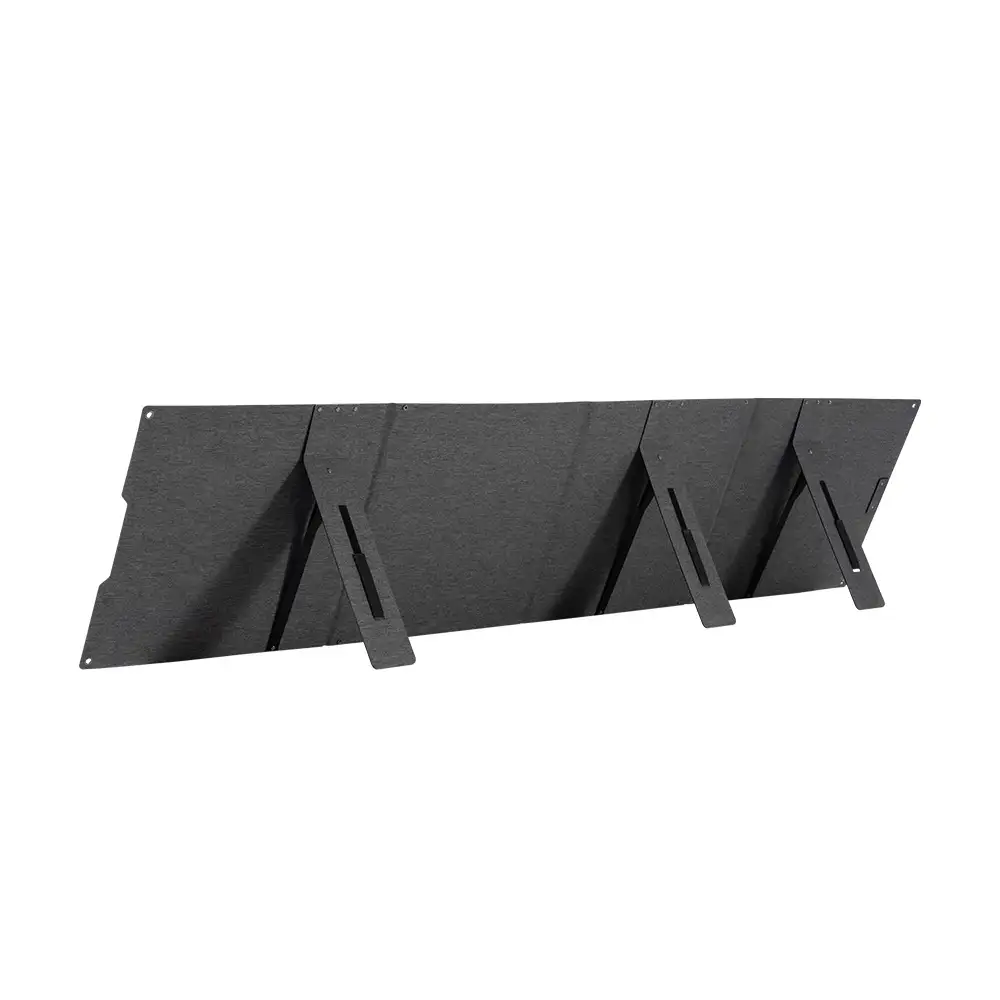

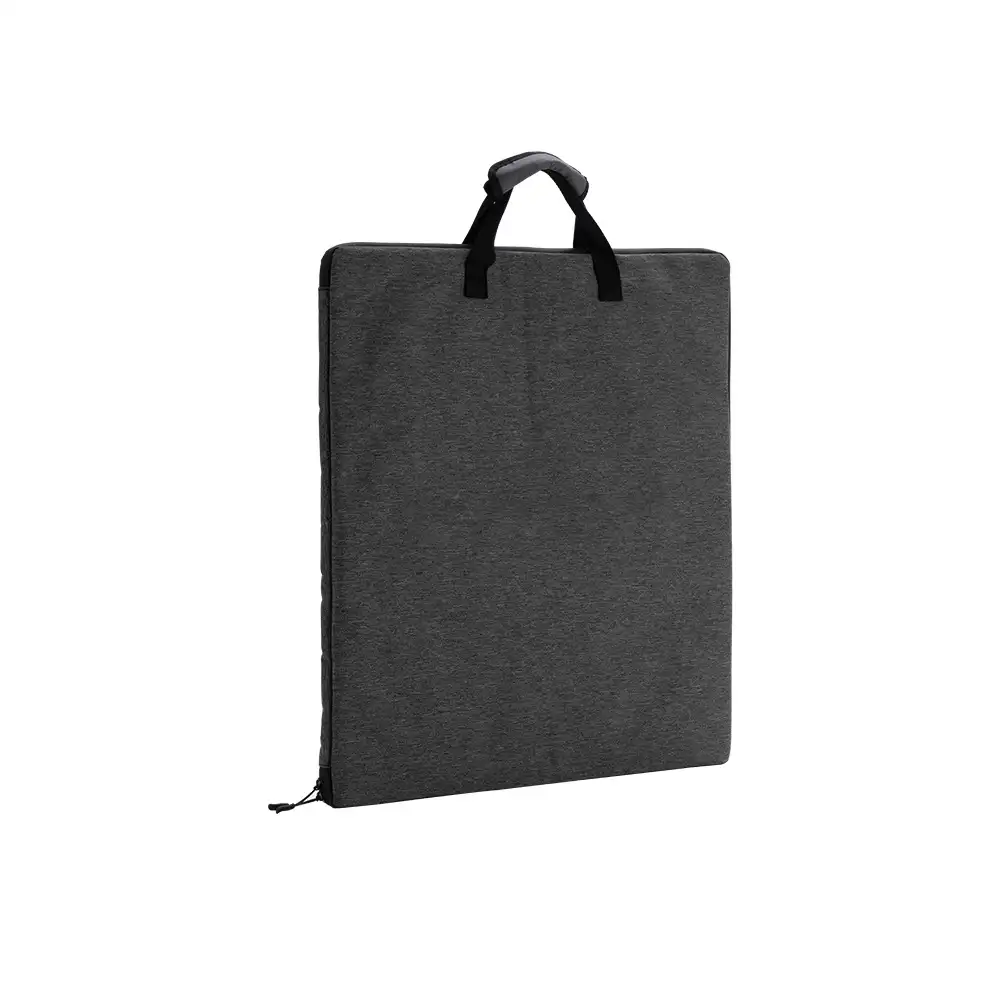

This model features a robust multi-kickstand system that ensures the panel remains stable and perfectly angled toward the sun on various terrains. Despite its significant power capacity, the panel folds down into a durable carrying case with a comfortable handle for easy transport. Built to last, it boasts an IP-68 waterproof rating and a 5-year warranty, making it one of the most reliable and long-lasting foldable panels available for professional and serious recreational use.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Dimensions (Unfolded) 126 x 89 x 3 cm

Weight 12.5kg

Cell Type Monocrystalline (Shingled Technology)

Color Black

Maximum Power 200W

Open-Circuit Voltage (Voc) 24.8V

Short-Circuit Current (Isc) 10.8A

Max. Power Voltage (Vmp) 19.8V

Max. Power Current (Imp) 10.1A

Max. System Voltage 1,000V

Max. System Fuse Rating 15A

Temperature Range -40°C ~ 85°C

Power Tolerance ± 5%

Waterproof Rating IP-68

Warranty 5 Years

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
