Solar Panels | Model: PP-SPMS-200W

200W Monocrystalline Foldable Solar Panel with Handle and Kickstand

Reliable power conversion for off-grid and mobile applications.

  • Industrial grade robust casing & thermal design

DC Input Voltage
12V / 24V DC
AC Output Voltage
220V - 240V AC
Output Waveform
Pure Sine Wave
Safety & Protection
Overload, Short Circuit, Temp
Applications
RV, Marine, Off-grid, Backup Power
CE Certification RoHS Compliance ISO 9001 Quality Management ISO 14001 Environmental Management UL Listed
Tested for reliability in off-grid applications worldwide
High Quality Components
Strict Quality Control
Global Compliance
Long-term Performance

Product Overview

The 200W Monocrystalline Foldable Solar Panel with Handle and Kickstand is a high-capacity portable power solution engineered for demanding off-grid applications. Utilizing high-efficiency A-Grade Monocrystalline cells with a 24% conversion efficiency, this panel delivers exceptional performance in a versatile, foldable format. The advanced ETFE coating ensures superior durability, light transmission, and weather resistance, making it ideal for professional and long-term outdoor use.

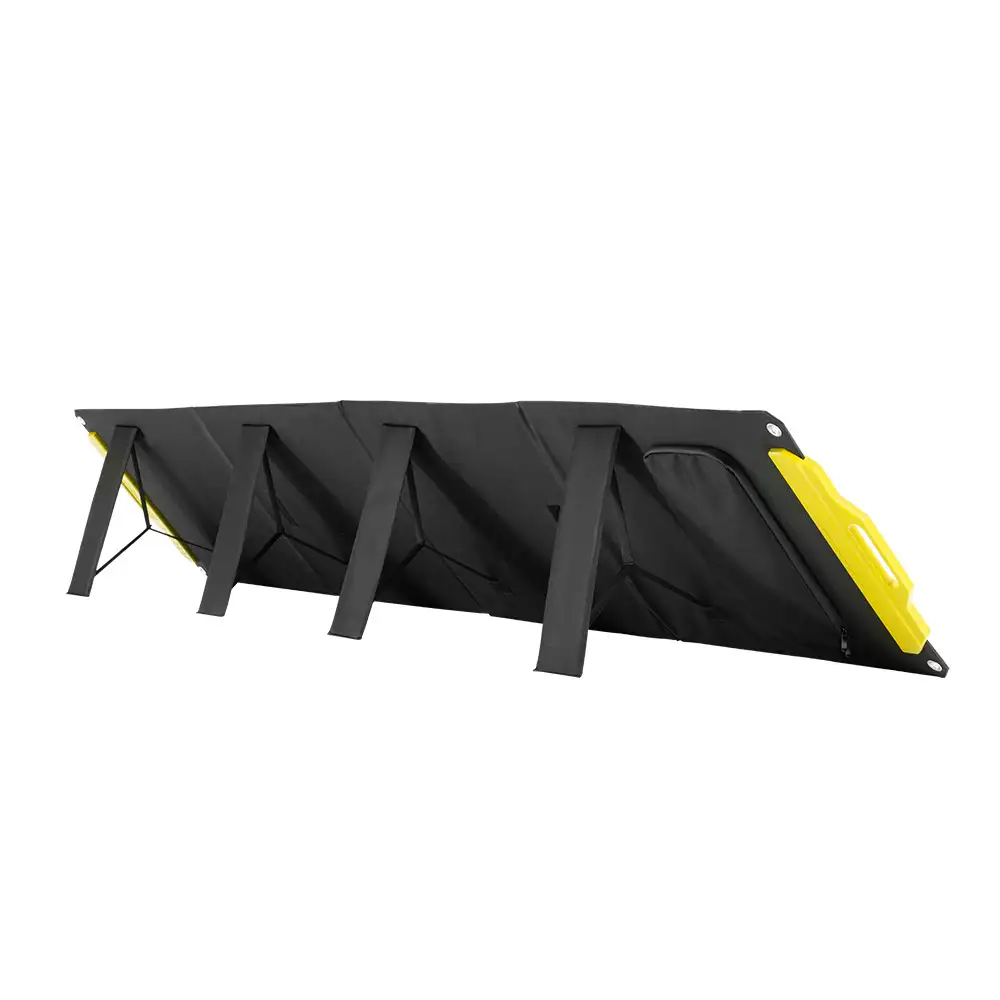

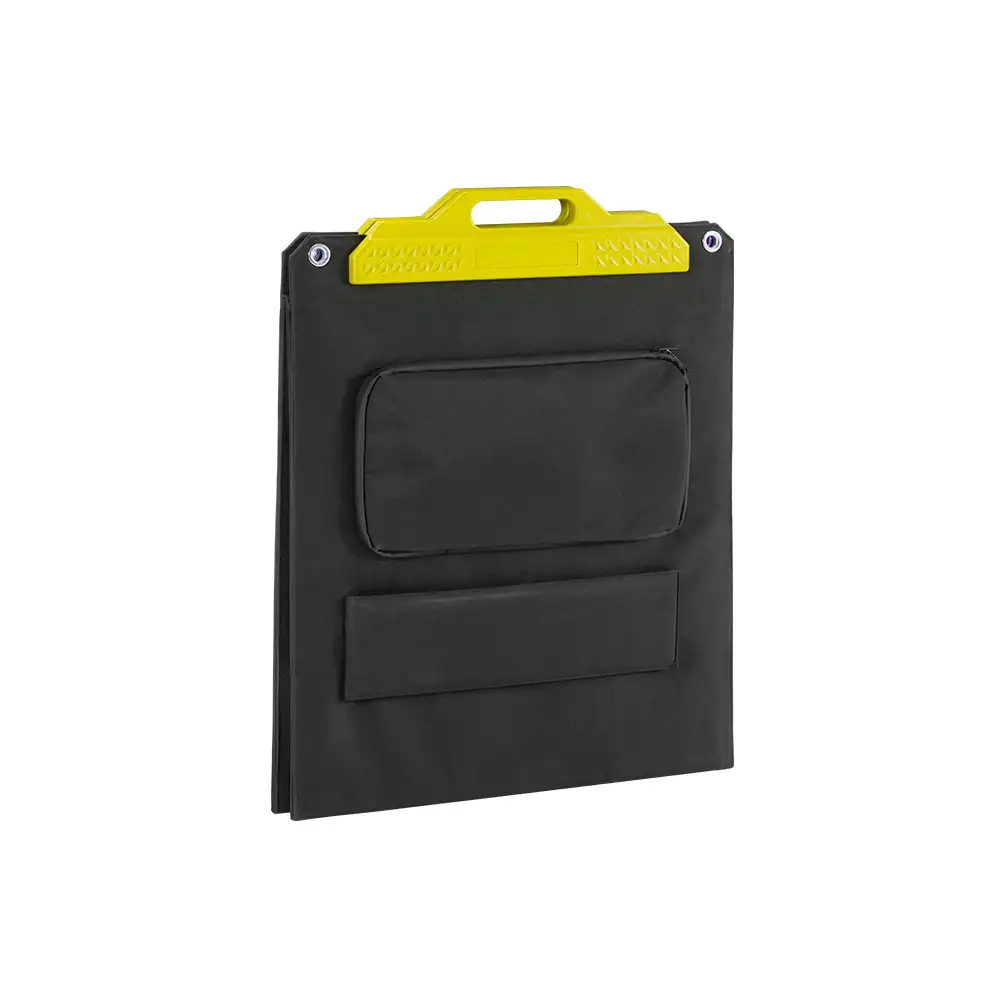

Designed for ease of deployment, the panel features a robust integrated handle and multiple adjustable kickstands, allowing you to quickly set up and optimize the angle for maximum solar intake. When fully unfolded, it extends to nearly 2.6 meters, providing a large surface area for power generation, yet it folds down into a manageable 70cm briefcase size for transport. Weighing only 6.7kg and equipped with integrated storage pockets for cables and accessories, this 200W panel is a powerful yet portable choice for RV systems, remote workstations, and high-capacity portable power stations.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Unfolded Size 259.8 x 55.5 x 0.6 cm
Folded Size 70.4 x 55.5 x 6 cm
Net Weight 6.7kg
Cell Type A Grade Monocrystalline
Cell Efficiency 24%
Film Material ETFE
Maximum Power 200W
Open-Circuit Voltage (Voc) 24.3V
Short-Circuit Current (Isc) 10.33A
Max. Power Voltage (Vmp) 20.7V
Max. Power Current (Imp) 9.66A
Max. System Voltage 60V
Operation Temperature -30°C ~ 70°C
Warranty 1 Year

Applicable Installation Scenarios

RV Systems
RV Systems
Marine
Marine
Trucks & Vans
Trucks & Vans
Off-grid Cabins
Off-grid Cabins
Backup Power
Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.

  • Pluggable Deployment
  • Smart Battery Matching
  • Max-Peak Efficiency
System Integration Flowchart
