Solar Panels | Model: PP200MS-B

200W Monocrystalline Foldable Solar Panel

Reliable power conversion for off-grid and mobile applications.

Industrial grade robust casing & thermal design

DC Input Voltage

12V / 24V DC

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

Product Overview

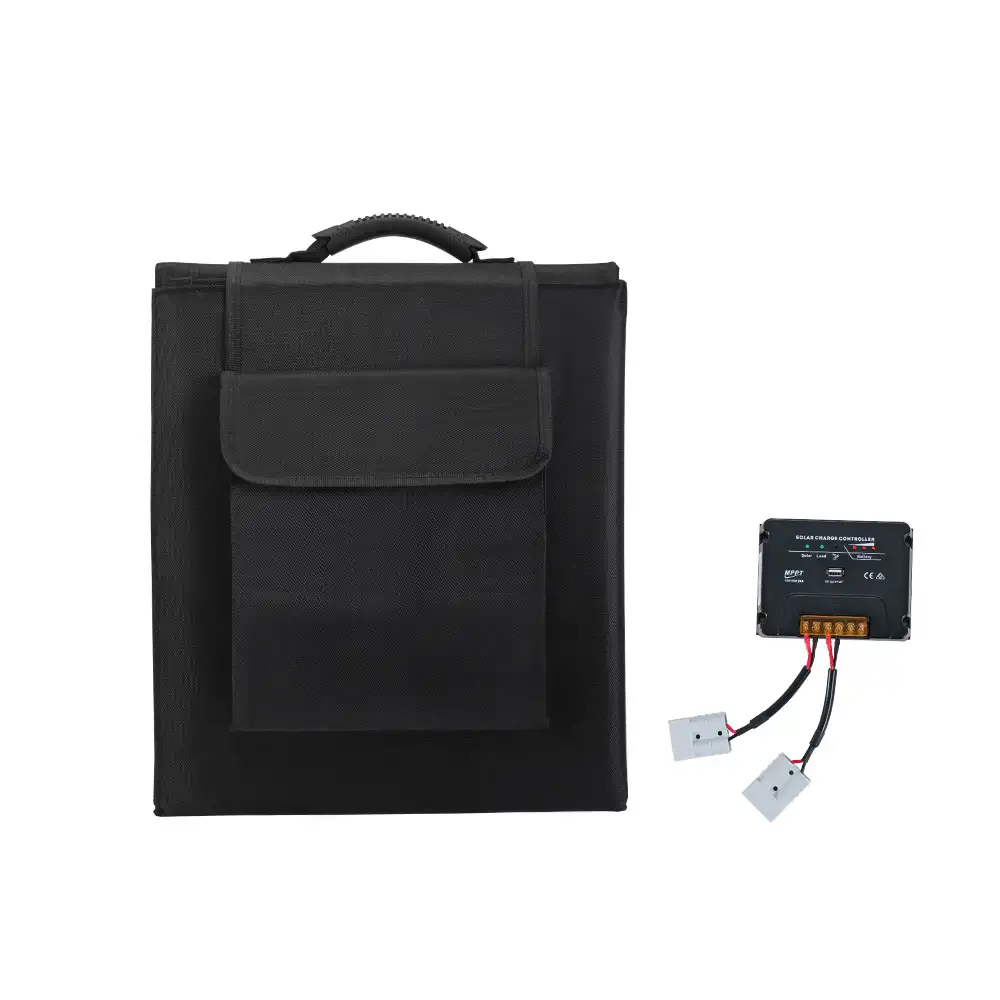

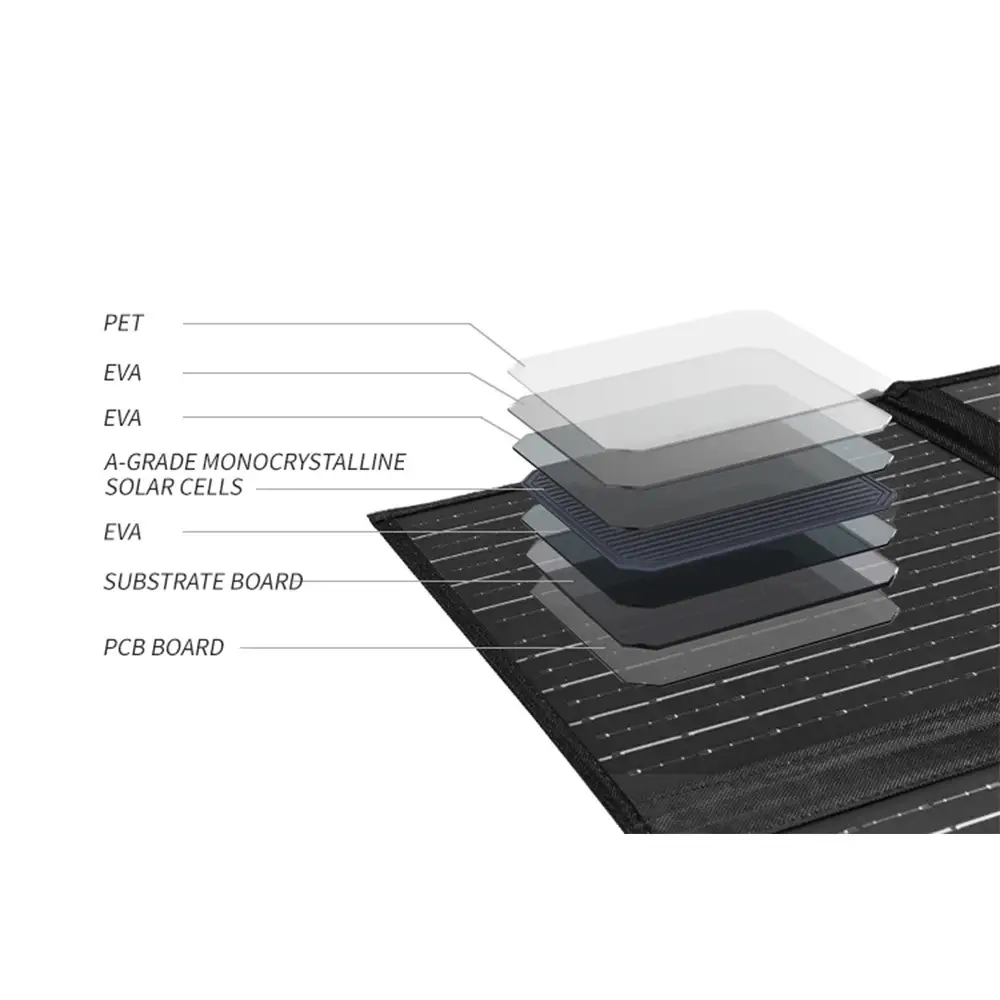

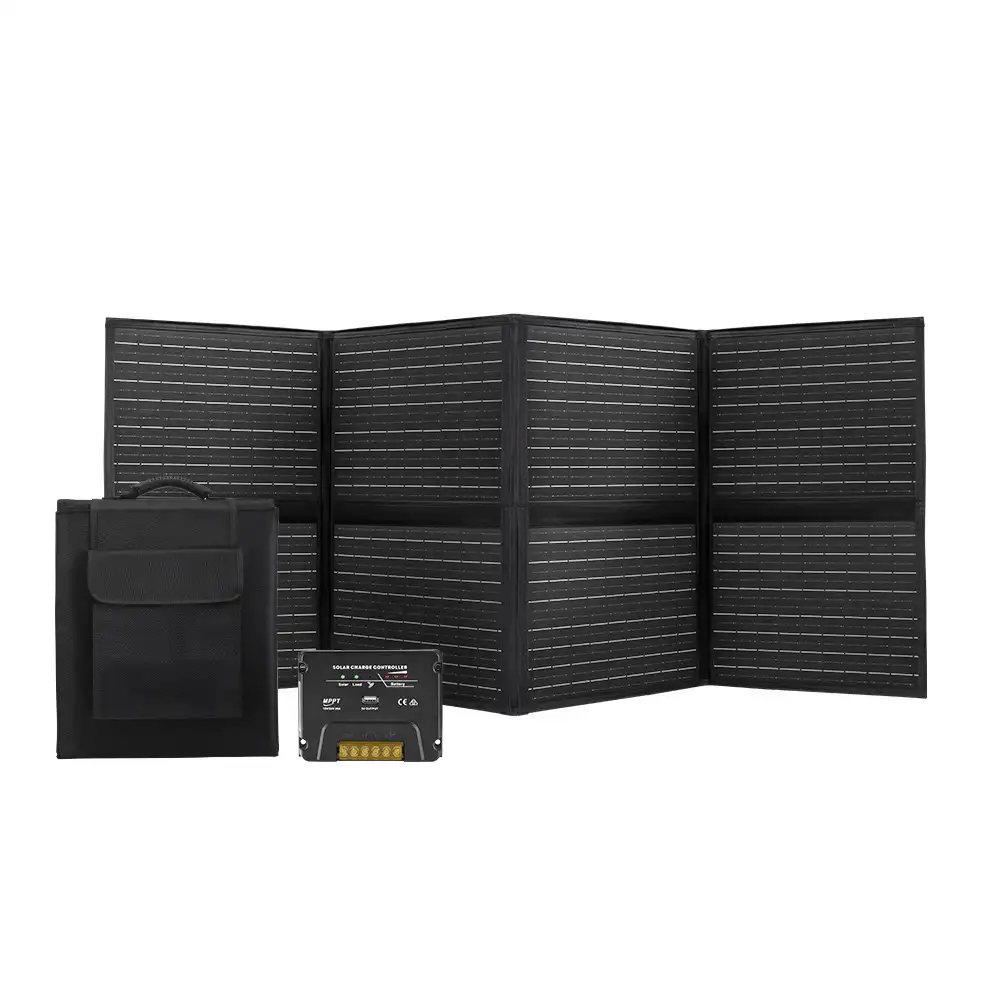

The 200W Monocrystalline Foldable Solar Panel is a heavy-duty portable power solution engineered for high-demand off-grid applications. Built with premium A-Grade Monocrystalline cells, this panel delivers a powerful 200W output with exceptional efficiency even in challenging lighting conditions. Its rugged, multi-fold design enables it to collapse from a generous 188cm width to a compact, briefcase-sized 46cm, making it ideal for mobile workshops, fleet vehicles, and remote industrial setups. Equipped with a standard 50A Anderson connector for seamless integration into existing battery systems, and featuring a reinforced layered construction (PET/EVA/PCB), it is built to withstand extreme temperatures ranging from -40°C to +85°C. Complete with a dedicated carrying case and integrated storage pocket, this foldable array provides professional-grade solar harvesting capability in a highly portable and durable package.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

Material A-Grade Monocrystalline

Color Black

Package Dimension 19.49"L (49.5cm) x 14.76"W (37.5cm) x 4.72"H (12cm)

Product Dimension (Opened) 74.02"L (188cm) x 29.13"W (74cm) x 0.24"H (0.6cm)

Product Dimension (Closed) 18.11"L (46cm) x 14.57"W (37cm) x 4.33"H (11cm)

Gross Weight 18.30 pounds (8.3kg)

Net Weight 17.42 pounds (7.9kg)

Maximum Power 200W

Connector Type 50A Anderson

Open Circuit Voltage (VOC) 22.5V

Short Circuit Current (ISC) 12.05A

Voltage at Pmax (VMP) 18.3V

Current at Pmax (IMP) 10.93A

Temperature Range -40°C (-40℉) ~ +85°C (185℉)

Power Tolerance ± 2%

Foldable Yes

Warranty 1-Year

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
