Solar Panels | Model: PP-FISED-SG120W

120W Shingled Rigid Solar Panel

Reliable power conversion for off-grid and mobile applications.

Industrial grade robust casing & thermal design

DC Input Voltage

12V / 24V DC

AC Output Voltage

220V - 240V AC

Output Waveform

Pure Sine Wave

Safety & Protection

Overload, Short Circuit, Temp

Applications

RV, Marine, Off-grid, Backup Power

Tested for reliability in off-grid applications worldwide

High Quality Components

Strict Quality Control

Global Compliance

Long-term Performance

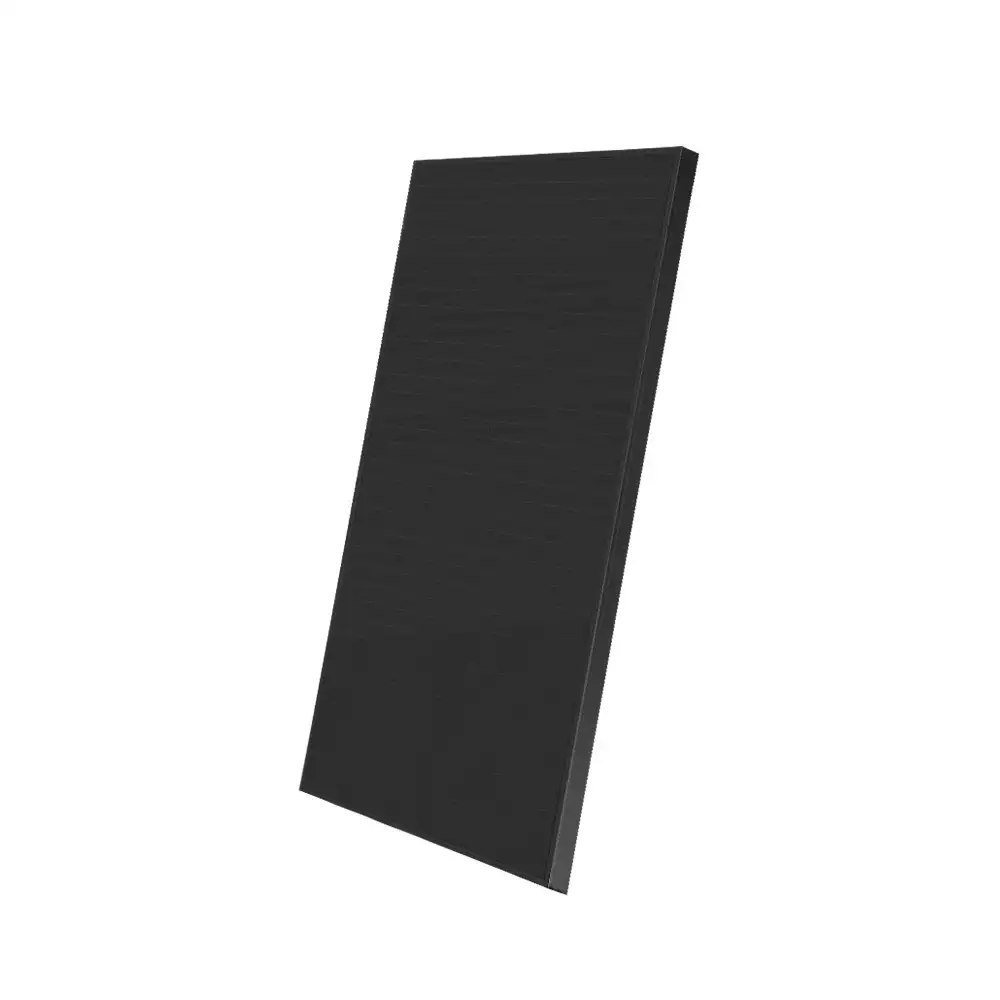

Product Overview

The 120W Shingled Rigid Solar Panel features advanced shingled cell technology, offering superior efficiency and a sleek, all-black aesthetic. Unlike traditional panels with visible busbars, shingled cells are laser-cut and overlapped, maximizing the active surface area and significantly improving performance under partial shading conditions. This innovative design also enhances mechanical strength and reduces the risk of micro-cracks over time.

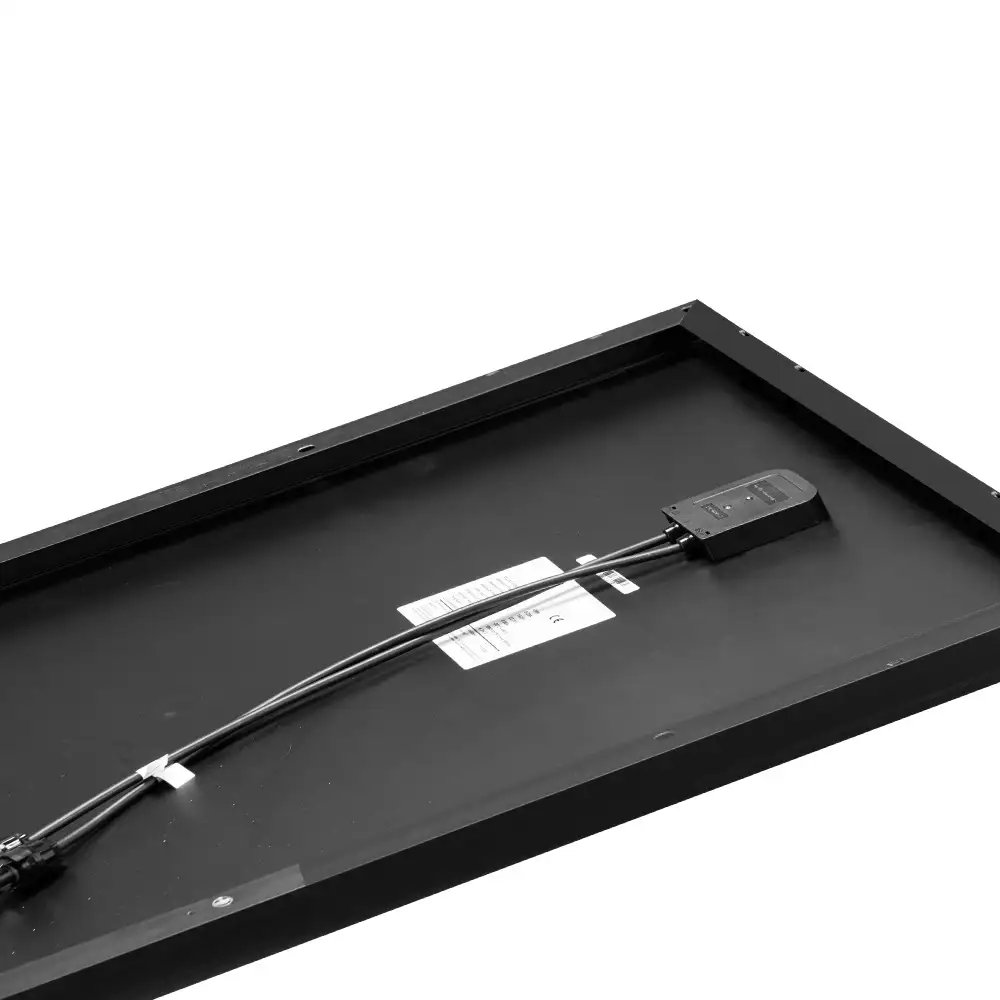

Engineered for permanent installation on RVs, boats, or off-grid structures, this rigid panel is housed in a robust, corrosion-resistant aluminum frame. With an IP-68 rated junction box and a 5-year warranty, it is built to withstand the harshest outdoor environments while delivering consistent, high-output power. The 120W output at 19.8V makes it an ideal choice for 12V battery charging systems where reliability and space-efficiency are paramount.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

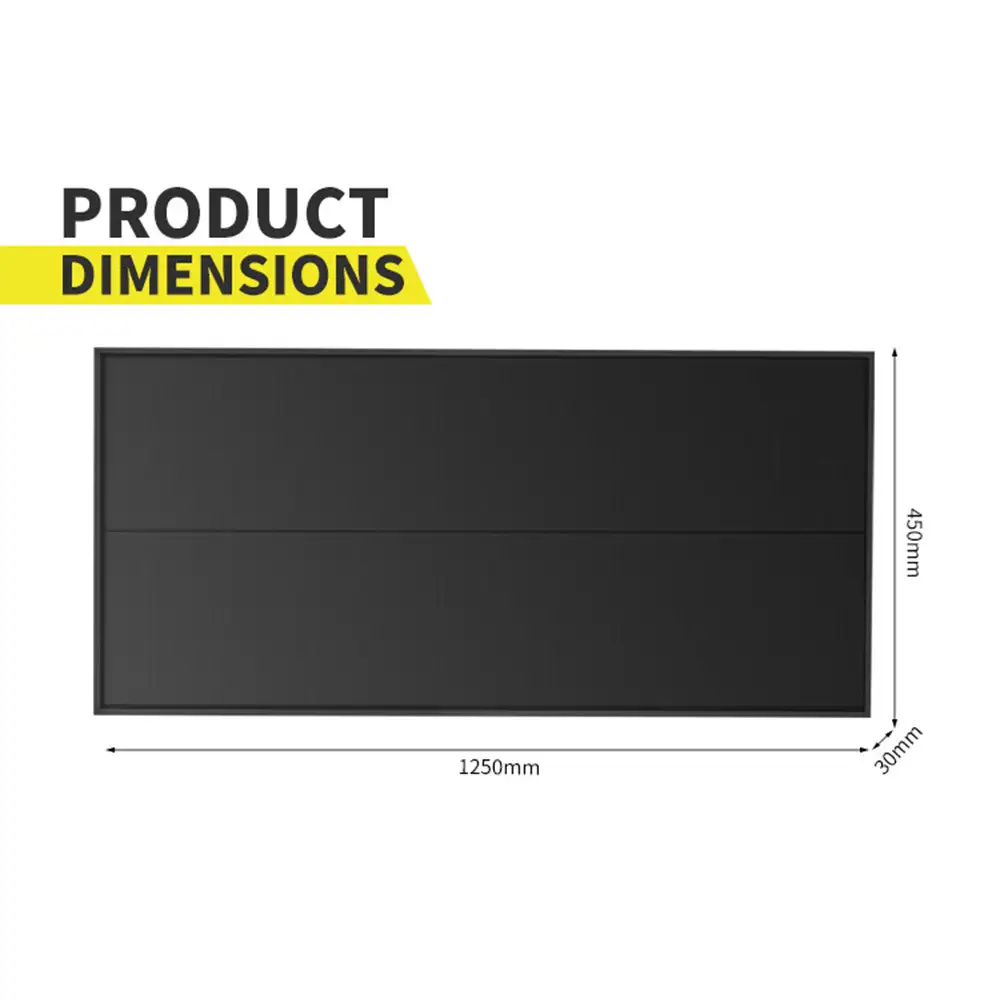

Dimensions 126 x 45 x 3 cm

Weight 6kg

Cell Type Shingled Cells

Color Black

Maximum Power 120W

Open-Circuit Voltage (Voc) 24.8V

Short-Circuit Current (Isc) 6.48A

Max. Power Voltage (Vmp) 19.8V

Max. Power Current (Imp) 6.07A

Max. System Voltage 1,000V

Max. System Fuse Rating 15A

Temperature Range -40°C ~ 85°C

Power Tolerance ± 5%

Waterproof Rating IP-68

Warranty 5 Years

Applicable Installation Scenarios

RV Systems

Marine

Trucks & Vans

Off-grid Cabins

Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.
