Offroad Camper Trailer 3000W Inverter Application & Performance Analysis

1. Project Background & User Pain Points

In modern off-road camping and off-grid living, users are increasingly demanding a high-quality, comfortable lifestyle. This case study focuses on the overhaul and upgrade of a 12V off-grid electrical system in a 2019 Offroad Camper Trailer.

1.1 Core Pain Points

• System Aging: The original 12V electrical system and factory components were outdated, leading to reduced efficiency and an inability to support multiple modern appliances simultaneously.
• Limitations on High-Wattage Domestic Appliances: The owners wanted to use standard 240V household appliances—specifically a large, family-sized air fryer rated at 2,250W—to cook quick meals (such as chips, nuggets, and wraps) on the road, bypassing the long setup times of traditional gas stoves or campfires.
• 12V Equipment Constraints: Typical off-road 12V setups restrict users to low-wattage electronics, making it impossible to directly run heavy-duty kitchen appliances.

1.2 The Solution

The owner decided to completely gut the existing 12V system and install the Photon Power 3000W Pure Sine Wave Inverter as the core power conversion unit, creating a highly capable yet budget-friendly off-grid power setup.

2. Inverter Technical Specifications

Choosing the right inverter requires balancing continuous load capacity, startup surge handling, and physical installation space. Below are the key specifications of the Photon Power 3000W Inverter used in this project:

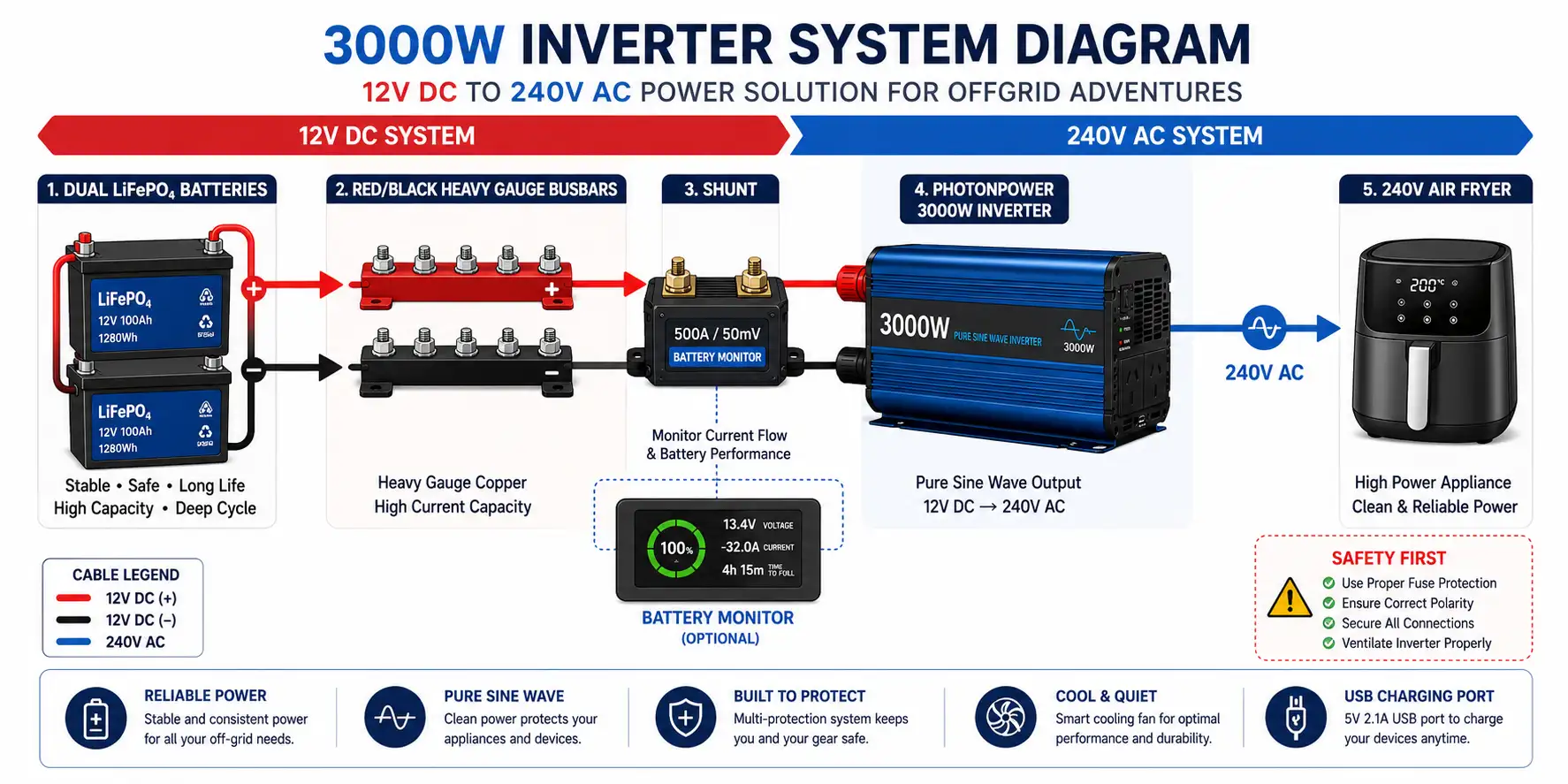

3. System Architecture & Integration

To support a 3000W high-power inversion output, the trailer’s entire DC network was re-engineered to guarantee smooth, safe current delivery.

3.1 Core Component Matrix

1. Battery Bank: Upgraded to dual high-capacity Lithium Batteries (LiFePO4) capable of handling sustained high-discharge currents.
2. Charging Infrastructure: Integrated a new DC-DC charger for alternator/solar charging while driving, alongside a dedicated AC charger for shore power replenishment.
3. Digital Monitoring: Utilized a high-quality busbar and shunt system linked to a digital battery monitor to log every amp entering or leaving the system.
4. Distribution Wiring: The inverter was connected via heavy-duty, oversized positive and negative cables, with a dedicated 240V extension lead routed out to the external slide-out kitchen area.

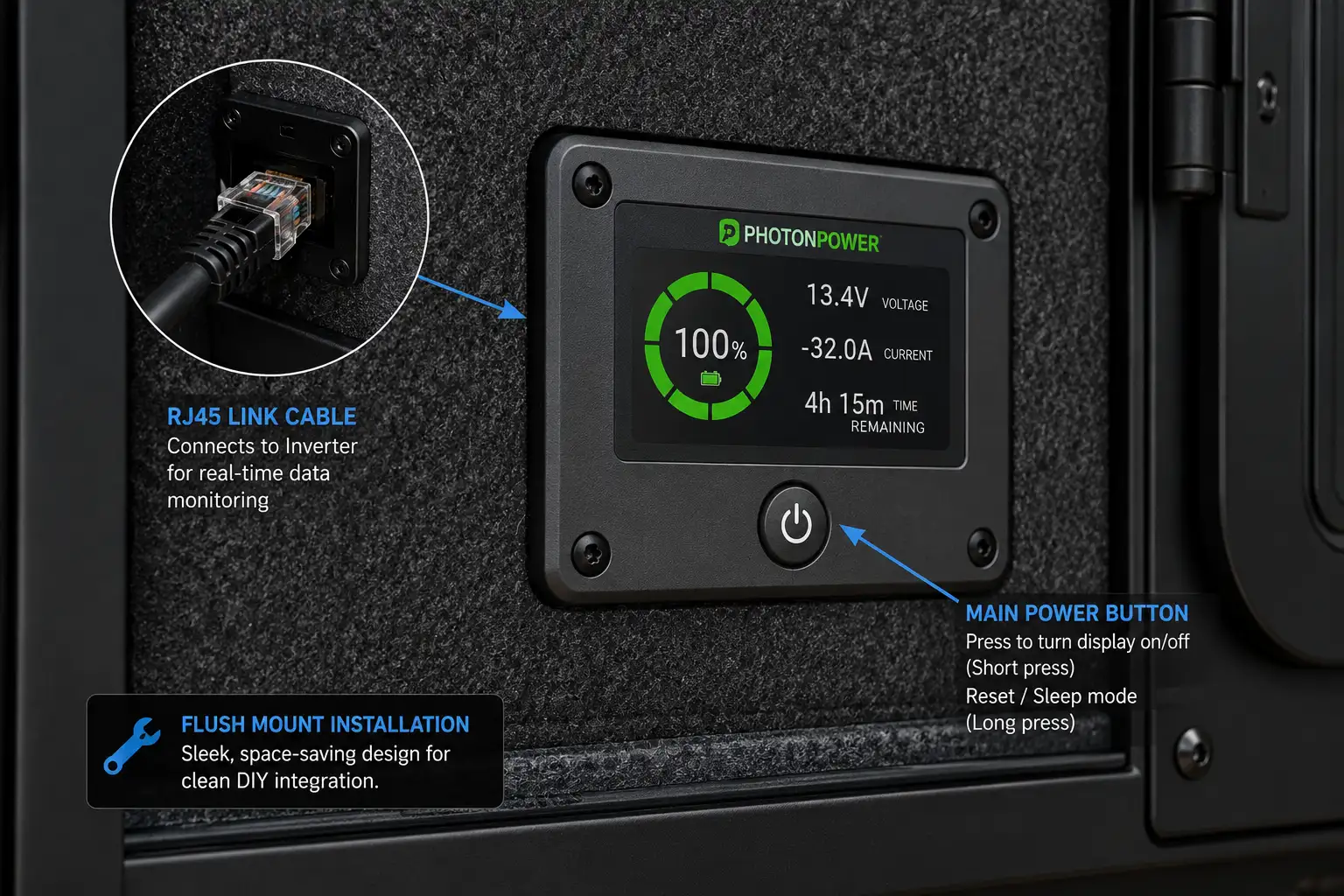

3.2 Remote Control & Enclosure Optimization

Because of its high power output, the inverter is physically large and relies on dual internal cooling fans, meaning it had to be installed inside a sealed storage box. To maintain usability:

• A remote control faceplate was hardwired and flush-mounted to the exterior wall of the enclosure.
• This allows the user to turn the inverter on or off with a single button without opening the sealed compartment.

Note: While the remote panel features a basic voltage meter, lithium batteries maintain an extremely flat discharge curve; therefore, the separate shunt-based battery monitor must be used for accurate capacity tracking.

4. Load Testing & Field Performance

To evaluate the stability of this budget-friendly inverter under maximum real-world stress, a high-load appliance benchmark was conducted on-site.

4.1 Test Environment & Load Profile

• Test Appliance: Household Air Fryer (Nominal Power Rating: 2,250W).
• Test Duration: 10 minutes of continuous operation.

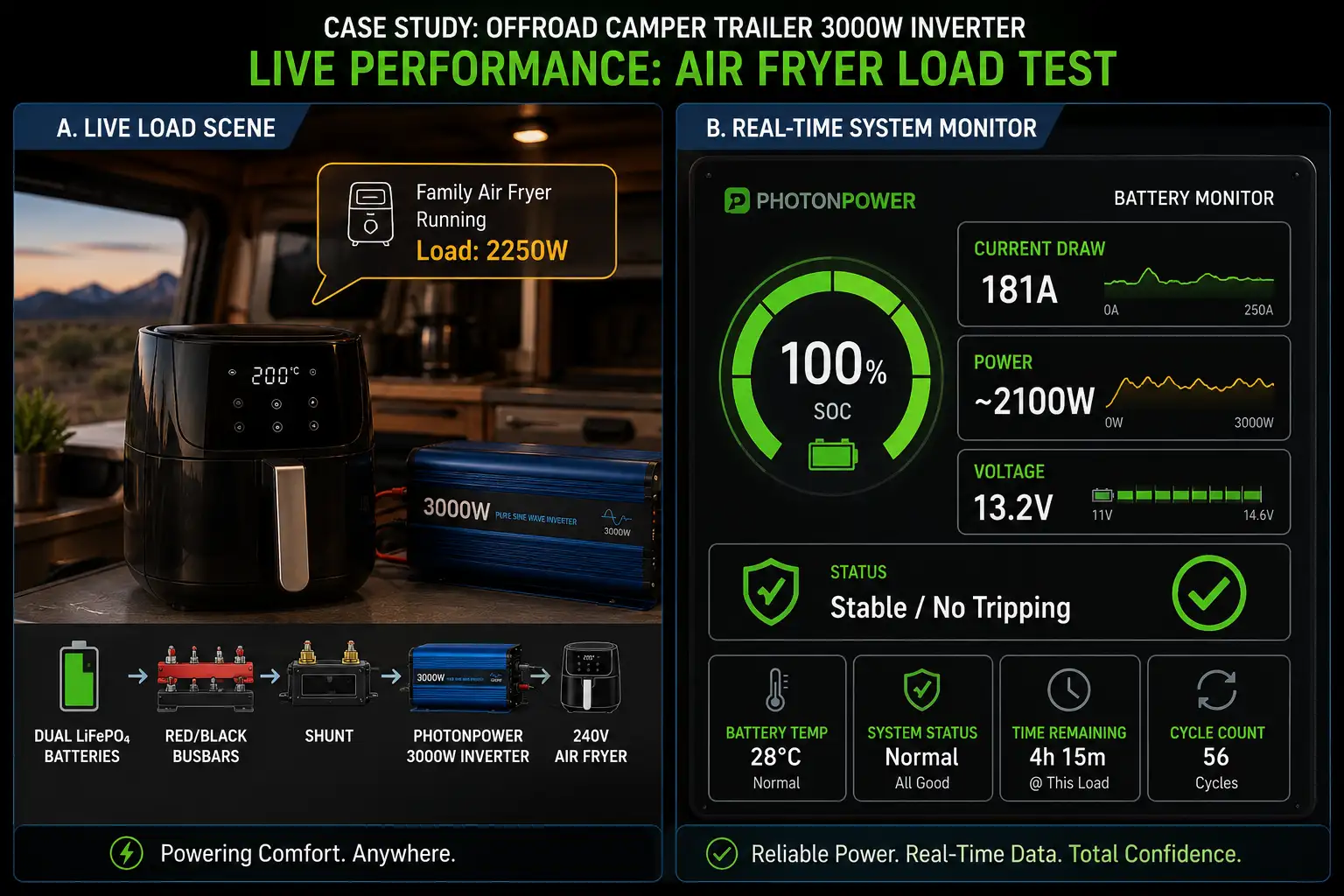

4.2 Real-Time Telemetry Data

4.3 Long-Term Reliability Feedback

Following 6 months of total installation and 3 months of intensive, everyday off-grid touring (using the inverter daily to cook snacks, chips, and quick lunches for the family), the Photon Power unit delivered flawless performance. No hardware failures, over-current trips, or power degradation were recorded, validating the viability of budget-conscious setups in harsh off-road conditions.

5. Key Takeaways & Deployment Recommendations

5.1 Strict Battery Capacity Matching

Deploying a 3000W inverter is only feasible if backed by a robust Lithium battery bank. Traditional lead-acid batteries or undersized banks will suffer from severe voltage drop under a 181A load, causing the inverter to trigger its low-voltage disconnect (LVD) and potentially causing permanent physical damage to the batteries.

5.2 Physical Dimension & Ventilation Planning

Higher wattage equals larger transformers and bulkier cooling fans. Users must measure their targeted installation cavities beforehand and leave adequate clearance for active cross-ventilation to prevent thermal build-up during extended high-load sessions.
