Black All In One 12V Control System featuring a charge status display, six blue switches, multiple power ports, and a clear fuse box.
All-in-One | Model: PP-12VCB

All In One 12V Control System

Reliable power conversion for off-grid and mobile applications.

  • Industrial grade robust casing & thermal design
DC Input Voltage
11~24V
AC Output Voltage
220V - 240V AC
Output Waveform
Pure Sine Wave
Safety & Protection
Overload, Short Circuit, Temp
Applications
RV, Marine, Off-grid, Backup Power
Request a Quote Consult an Engineer
CE Certification RoHS Compliance ISO 9001 Quality Management ISO 14001 Environmental Management UL Listed
Tested for reliability in off-grid applications worldwide
High Quality Components
Strict Quality Control
Global Compliance
Long-term Performance

Product Overview

The All In One 12V Control System represents the ultimate solution for centralized power management in off-grid setups and RVs. Combining a robust 600W DCDC charger, 1500W pure sine wave inverter, and solar integration into a single sleek panel, it eliminates the need for complex, messy wiring. Features include comprehensive fusing, dedicated fast-charging USB ports, a wide range of battery compatibility, and customizable auxiliary switches to command your entire 12V ecosystem elegantly and efficiently.

Key Technical Features

Thermal Control

Smart cooling fans intelligently adjust speed based on actual temperature.

Smart Display

Digital LCD indicators provide instant status & battery voltage reading.

Technical Specifications

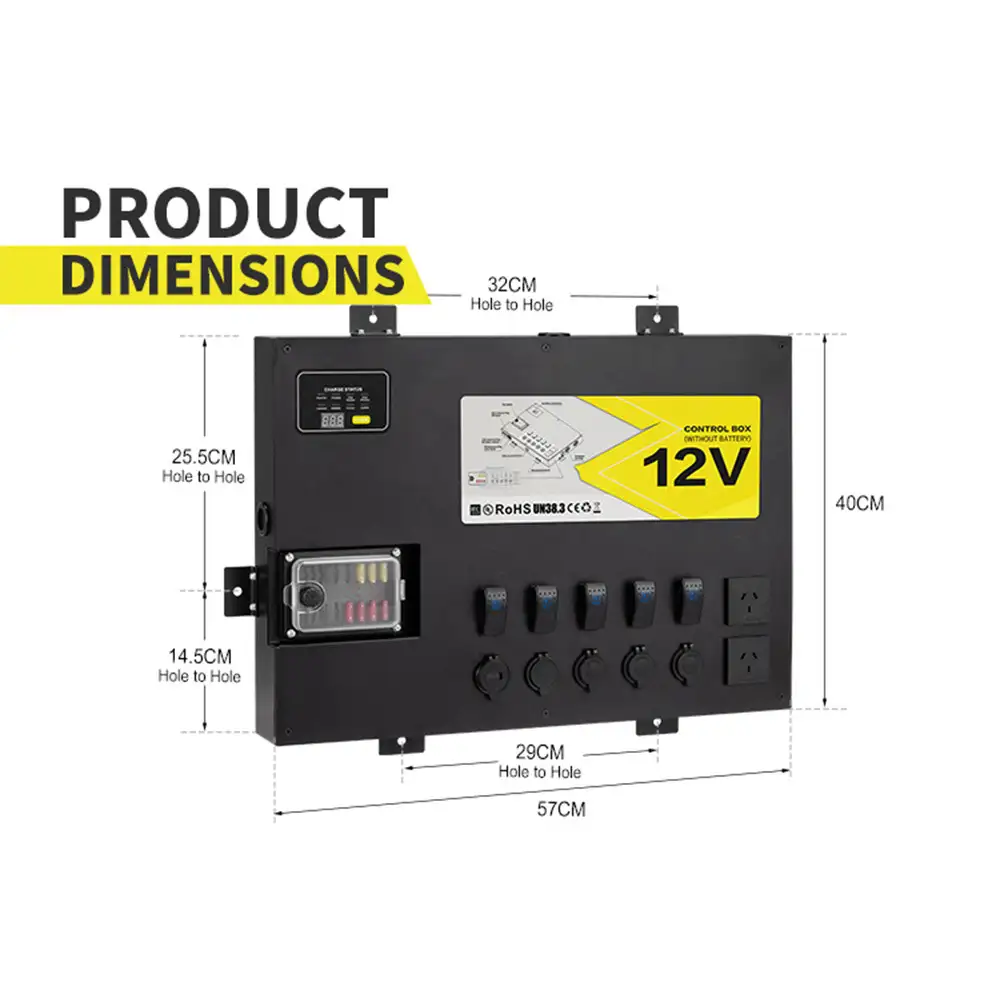

Product Dimensions 570 x 400 x 70mm
Product Weight 11kg
Battery Compatibility Lead Acid, AGM, Calcium, LiFePO4
Battery Voltage Range 7~15.4V
Integrated DCDC Rated Charging Power 600W
DC Input Voltage Range 11~24V
Solar Input Voltage Range 9~30V
Integrated Inverter Output Power 1500W
AC Socket Specifications 230V / 110V, 50Hz / 60Hz
Cig Socket Specifications 12V, 10A MAX
USB Socket Specifications USB Socket 1: Type-A 5V 1A & Type-A 5V 2.1A USB Socket 2: Type-A QC 18W & Type-C PD 18W
Switch Specifications 12V 20A Max
Fuse Block 7x blade fuses supplied
Operational Temperature -20℃~45℃
Storage Temperature -40℃~60℃
Humidity 0%~90%

Applicable Installation Scenarios

RV Systems
RV Systems
Marine
Marine
Trucks & Vans
Trucks & Vans
Off-grid Cabins
Off-grid Cabins
Backup Power
Backup Power

System Integration

Our components integrate seamlessly to build redundant, industrial-grade power generation grids. Works intelligently with batteries, panels and backup sources.

  • Pluggable Deployment
  • Smart Battery Matching
  • Max-Peak Efficiency

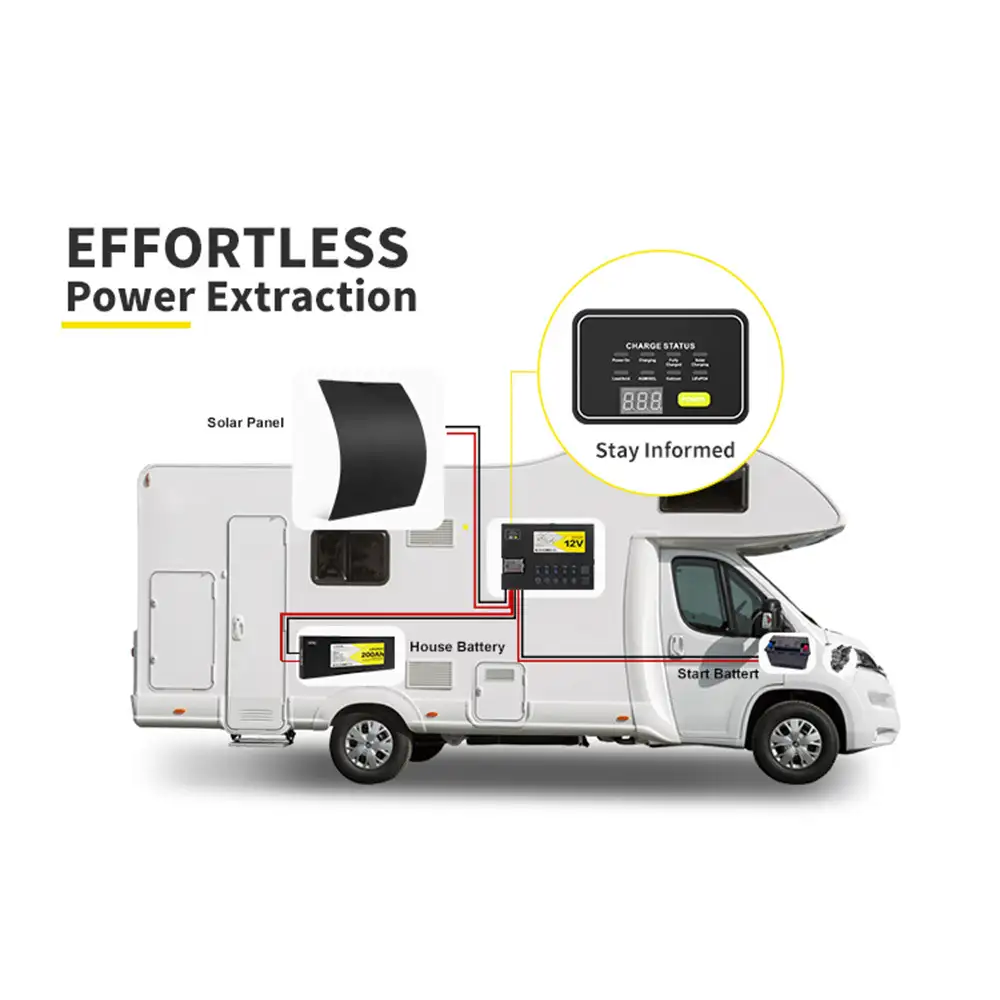

System Integration Flowchart
